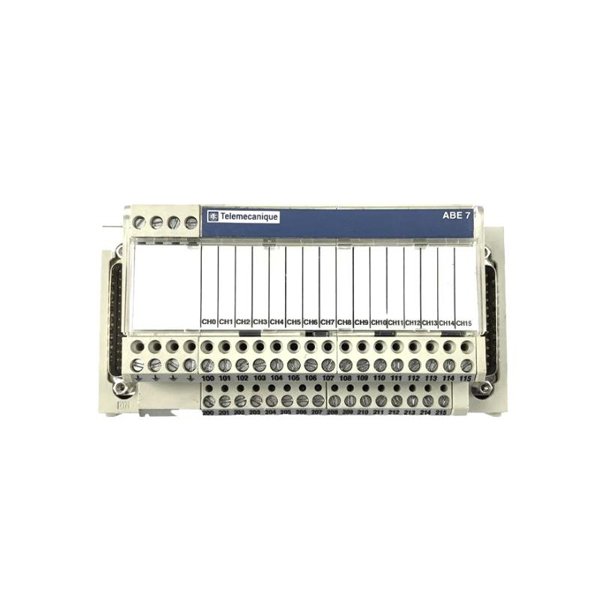

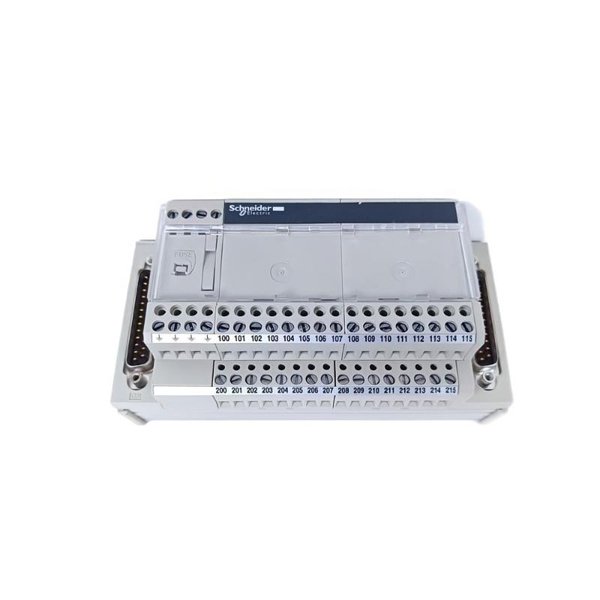

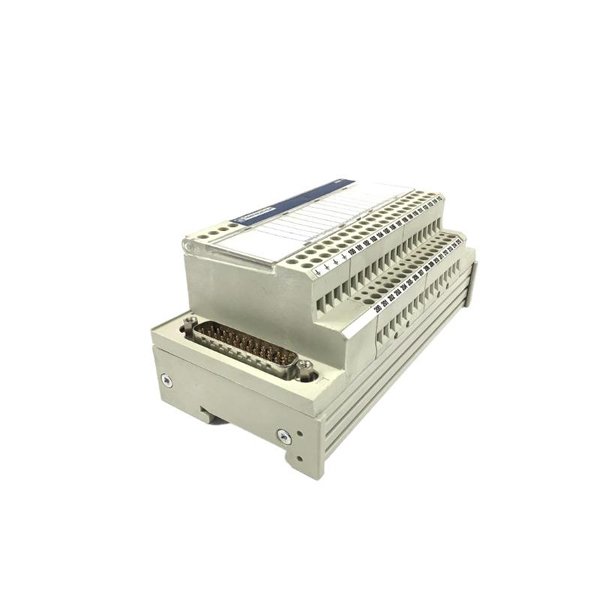

Schneider ABE7CPA12 Connection Sub-Base

The Schneider Electric ABE7CPA12 is a connection sub-base designed to facilitate the organized and efficient connection of discrete input/output modules within industrial automation systems. Belonging to the trusted Telemecanique ABE7 series, this sub-base supports 12 I/O points and provides a reliable interface for field wiring to PLC modules. Its design allows for quick installation and easy maintenance, making it an ideal choice for engineers seeking modularity and robustness in control panel assembly.

Constructed with durable materials and engineered for consistent performance, the ABE7CPA12 sub-base ensures signal integrity and secure connections in demanding industrial environments. It is tailored for 24 V DC I/O modules, providing a stable platform that simplifies wiring while safeguarding system reliability.

Product Specifications

Product Applications

The ABE7CPA12 sub-base is extensively used in various industrial sectors where reliable connection interfaces between sensors, actuators, and PLC modules are crucial. Common application areas include:

• Automotive Manufacturing: Providing robust wiring solutions for assembly line controls and sensor integration.

• Process Automation: Applied in chemical, pharmaceutical, and food processing plants for discrete control signal management.

• Building Automation: Used in HVAC and lighting control systems for secure and maintainable connections.

• Packaging Machinery: Ensures efficient control of multiple discrete signals in high-speed packaging lines.

• Material Handling Systems: Supports conveyor and robotic control units with reliable field wiring interfaces.

• Energy Sector: Facilitates connections in monitoring and control equipment in power plants and substations.

Product Advantages

• Ease of Installation: The sub-base’s modular design allows fast and error-free installation, minimizing downtime.

• Robust Connection: Screw clamp terminals ensure secure and vibration-resistant wiring.

• High Compatibility: Compatible with a wide range of Schneider and Telemecanique I/O modules, offering system flexibility.

• Durability: Manufactured from flame-retardant thermoplastic, the unit withstands industrial environments and heat stress.

• Maintenance Friendly: Clear labeling and accessible terminal points simplify troubleshooting and routine maintenance.

• Safety Compliance: Fully compliant with international standards to ensure operator and equipment safety.

• Compact Design: Space-saving dimensions fit neatly into control cabinets without crowding.

• Cost Efficient: Reduces wiring complexity and replacement time, resulting in lower operational costs.

Frequently Asked Questions (FAQ)

1. What kind of I/O modules does the ABE7CPA12 support?

   It is designed for 24 V DC discrete Telefast I/O modules.

2. Can the sub-base be used with analog I/O modules?

   No, it is intended specifically for discrete digital signals.

3. What is the mounting method for this product?

   The sub-base is mounted on a standard DIN rail.

4. What is the maximum operating temperature for the ABE7CPA12?

   It can operate safely up to +60°C.

5. Is the sub-base resistant to industrial contaminants like dust and moisture?

   It offers IP20 protection, suitable for most indoor industrial environments but not for direct exposure to liquids.

6. How many I/O points does the ABE7CPA12 support?

   It supports 12 discrete I/O points.

7. Does the product include connectors and terminals?

   Yes, it comes with HE10 connectors and screw clamp terminals for wiring.

8. What standards and certifications does this product comply with?

   It is certified to CE, RoHS, UL, and CSA standards.

9. Can this sub-base be used in high-vibration environments?

   Yes, the screw clamp terminals provide secure connections even in vibration-prone settings.

10. What maintenance is recommended for the sub-base?

    Regular inspection of terminal tightness and connector condition is advisable to maintain optimal performance.
