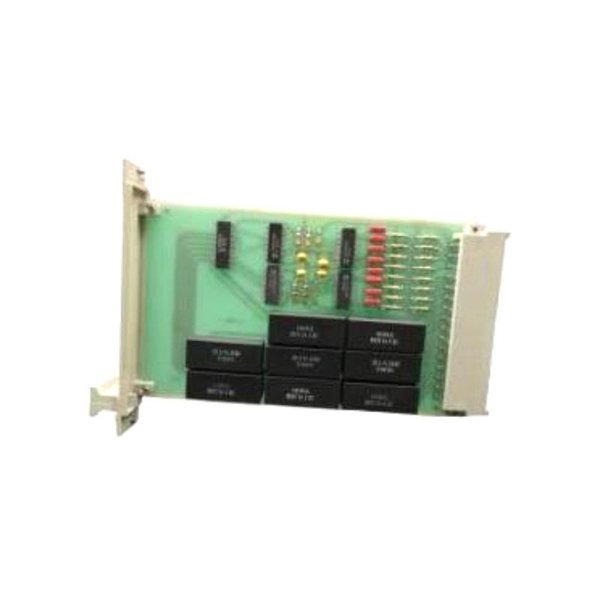

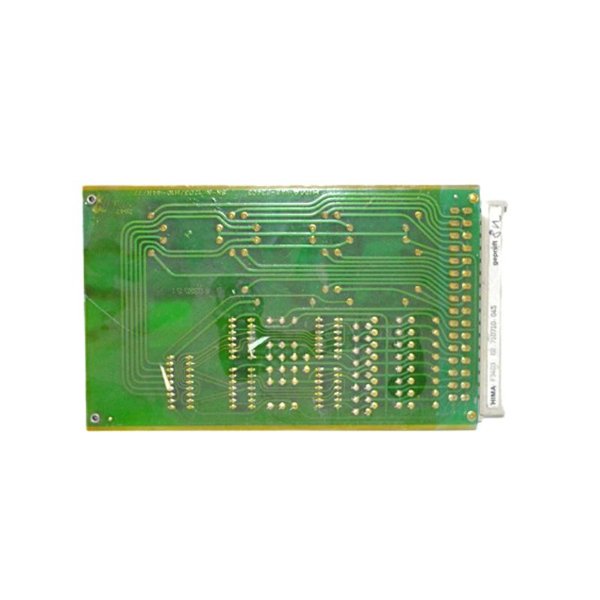

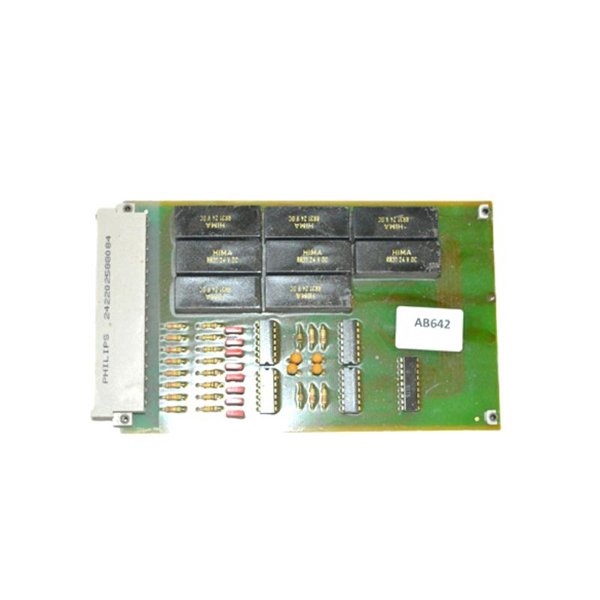

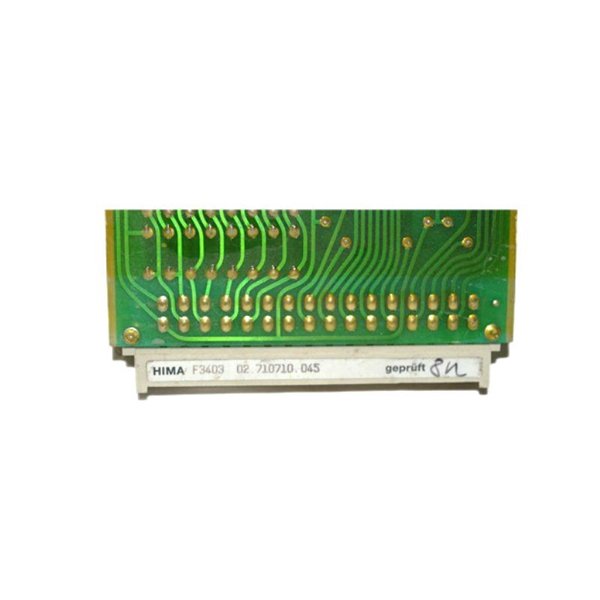

Hima F3403 Safety Related Relay Module

The HIMA F3403 Safety-Related Relay Module is a high-reliability module designed for use in safety-critical applications where fail-safe operation and fault tolerance are essential. This relay module is part of HIMA’s renowned HIQuad and HIMax safety systems, which are widely used in industrial automation, process control, and emergency shutdown applications.

The F3403 module provides reliable isolation and switching of safety-critical signals, ensuring secure control of emergency stop circuits, interlocks, and other safety-related functions. It is designed to comply with SIL 3 (IEC 61508) safety standards, making it suitable for use in hazardous and high-risk environments such as oil & gas plants, chemical processing, power generation, and manufacturing industries.

Built with high-quality industrial-grade components, the HIMA F3403 is engineered to withstand extreme conditions, offering long-term reliability and robust safety performance.

Product Specifications

Applications

The HIMA F3403 Safety-Related Relay Module is widely used in industries where fail-safe control and emergency response are crucial. Key applications include:

1. Emergency Shutdown Systems (ESD) – Activating emergency stop circuits in critical operations.
2. Fire & Gas Detection Systems – Controlling alarms, ventilation, and fire suppression systems.
3. Oil & Gas Industry – Ensuring safe operation of pipelines, refineries, and offshore platforms.
4. Chemical Processing Plants – Providing safety interlocks for hazardous chemical processes.
5. Power Generation Plants – Protecting turbines, generators, and switchgear from failures.
6. Pharmaceutical Manufacturing – Maintaining safety compliance in high-precision production.
7. Water Treatment Plants – Monitoring and controlling chemical dosing systems.
8. Factory Automation – Enhancing machine safety with fail-safe relay switching.

Product Advantages

1. SIL 3 Certified for High Safety Integrity – Compliant with IEC 61508, making it ideal for critical safety applications.
2. Triple Redundant Safety Architecture – Ensures reliable operation even in the event of a failure.
3. Fast Switching Response (<10 ms) – Provides near-instantaneous relay activation for emergency shutdowns.
4. High Isolation Voltage (2500V AC) – Protects sensitive control circuits from voltage surges.
5. Robust Design for Harsh Environments – Withstands extreme temperatures and industrial conditions.
6. Compact and Lightweight Construction – Facilitates easy installation and integration into safety systems.
7. Electromechanical Safety Relay – Provides secure isolation and high load capacity.
8. DIN Rail / Rack-Mounted – Flexible mounting options for different control panel designs.
9. Compatible with HIMA HIQuad and HIMax Systems – Ensures seamless integration into existing safety networks.
10. Certified for Hazardous Areas (ATEX, CE, UL) – Suitable for explosive and high-risk environments.
