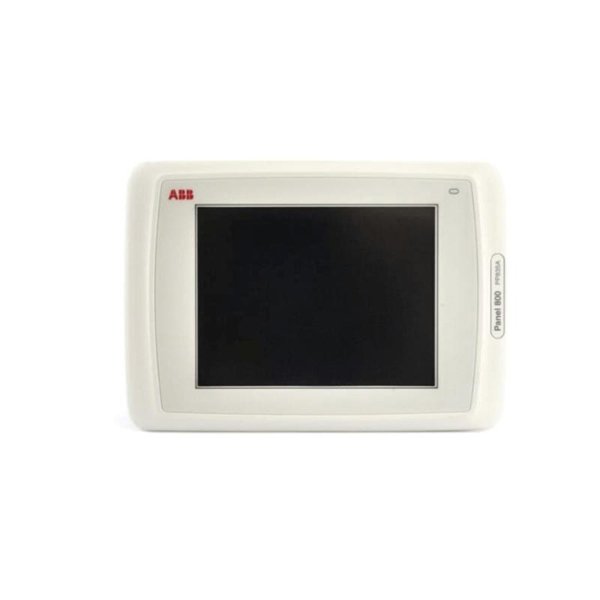

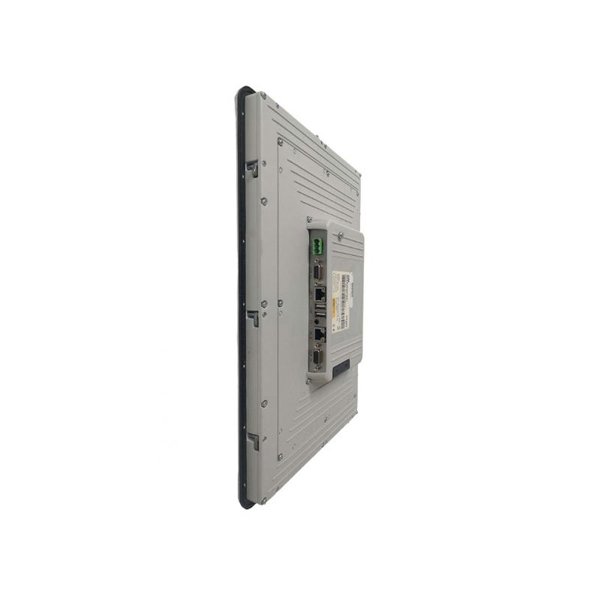

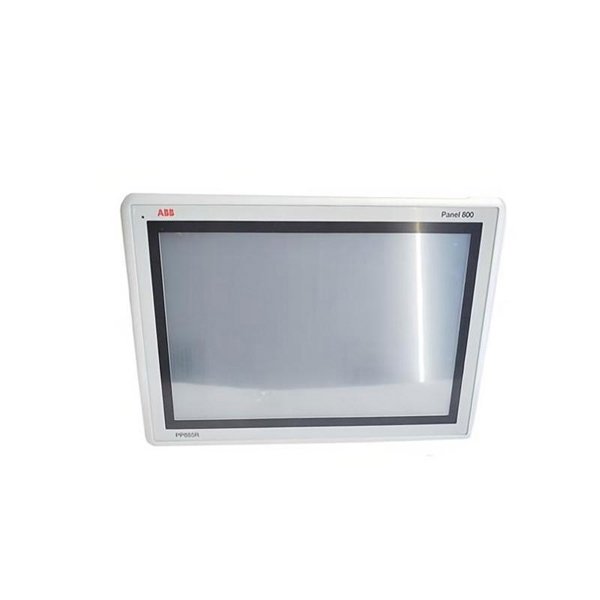

ABB PP885R 3BSE069276R1 Touch Screen Panel

The ABB PP885R 3BSE069276R1 is a robust industrial-grade HMI (Human-Machine Interface) touch screen panel engineered to meet the rigorous demands of modern industrial automation. It belongs to the ABB Panel 800 series, a family of advanced operator panels designed for smooth, reliable, and high-performance interaction with control systems. The PP885R features a large 15.4-inch TFT display, multi-touch capability, and support for multiple communication protocols, making it highly adaptable in various industrial settings. With its superior visual clarity, rugged construction, and intuitive configuration, the PP885R is a preferred solution for operators and engineers working in harsh or precision-critical environments.

Product Specifications

Product Applications

The ABB PP885R is engineered to perform in a variety of industrial automation settings. Common application areas include:

• Manufacturing Automation: Integrates with PLCs and SCADA systems for real-time process visualization and control.

• Power Plants: Used in control rooms for monitoring turbine systems, switchgear, and electrical distribution.

• Oil and Gas Facilities: Interfaces with distributed control systems (DCS) to support safety and process operations.

• Water Treatment Plants: Provides operators with a user-friendly interface to monitor and manage pumps, valves, and filtration systems.

• Marine and Offshore: Suitable for shipboard automation due to DNV certification, withstanding shock and vibration.

• Food and Beverage Processing: Allows monitoring of temperature, pressure, and flow control in hygienic environments.

Product Advantages

• Industrial Durability: With an IP65-rated front, the PP885R withstands exposure to dust, water, and industrial contaminants.

• User-Friendly Interface: Multi-touch functionality and high screen resolution enable precise and responsive operation.

• Communication Flexibility: Equipped with multiple interface options, making integration into existing systems simple and efficient.

• Compact Yet Powerful: Delivers strong performance with minimal panel space and low power consumption.

• Easy Installation: Designed with standard panel cut-outs and VESA mounting for flexible deployment.

• Long-Term Availability: ABB offers extended lifecycle support for Panel 800 series products, ensuring system reliability.

Frequently Asked Questions (FAQ)

1. What size display does the PP885R have?

   It features a 15.4-inch widescreen LCD display.

2. Can it be used in marine environments?

   Yes, it has DNV marine certification for offshore and shipboard use.

3. What kind of touchscreen technology is used?

   A resistive multi-touch interface suitable for gloved operation.

4. Is the unit suitable for outdoor use?

   It can be used in protected outdoor environments, thanks to its IP65 front protection rating.

5. What software is required to configure the panel?

   ABB Panel Builder 800 or Automation Builder software is used for configuration.

6. How is data transferred to the device?

   Data can be loaded via SD card, USB, or Ethernet connection.

7. Is the front panel made of metal or plastic?

   The front frame is made of powder-coated aluminum, offering mechanical strength.

8. What happens in case of a power failure?

   It resumes operation automatically after power is restored; UPS can be used for critical applications.

9. Does it support redundant communication links?

   No, redundancy must be managed externally via network architecture.

10. Can I mount it vertically?

    Yes, vertical mounting is supported as long as ventilation requirements are met.
