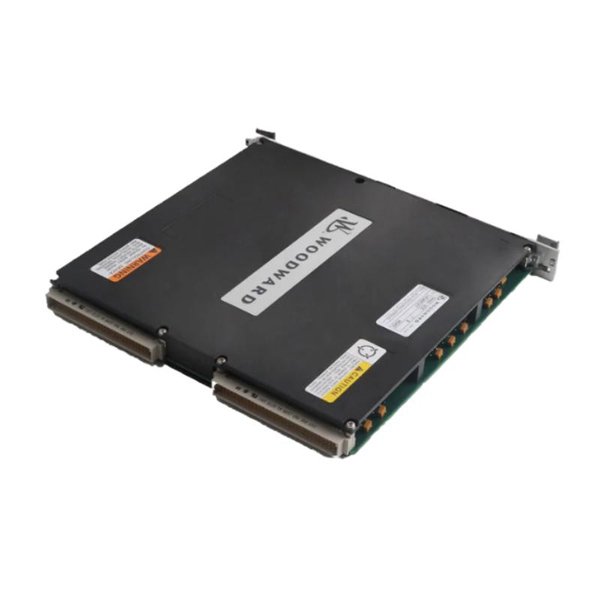

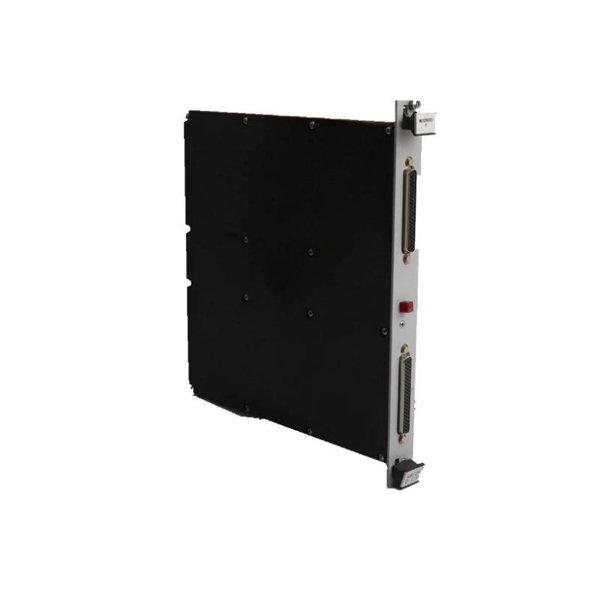

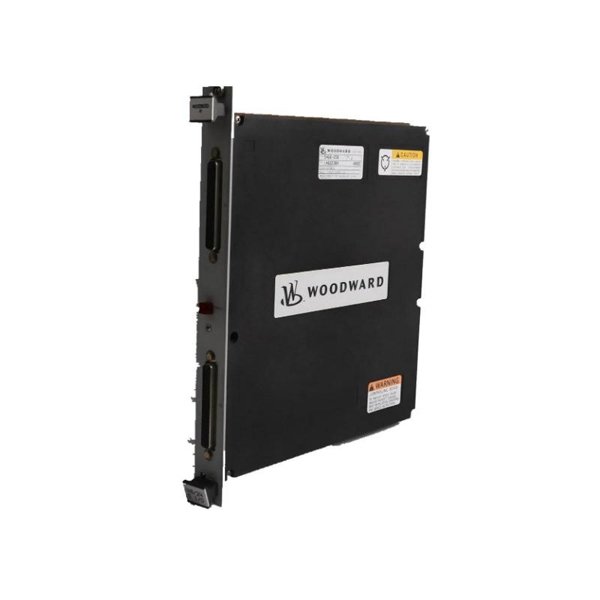

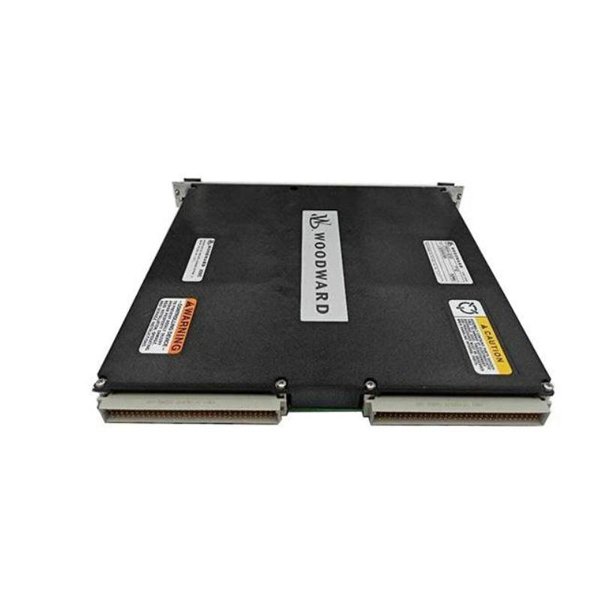

Woodward 5503-198 Remote I/O Module

The Woodward 5503-198 Remote I/O Module is a robust, high-performance interface solution designed for industrial and power generation systems. This module allows for the efficient transmission of input/output signals between a control system and remote field devices, such as sensors, actuators, and other critical machinery. The 5503-198 is designed for flexibility, scalability, and ease of integration, making it suitable for a wide range of applications, from industrial automation to complex power generation control systems.

This module helps expand the control network, providing remote access to various devices that may be located far from the main control panel or processing unit. The 5503-198 is ideal for applications requiring reliable communication and real-time data processing from distributed equipment. It allows operators to monitor and control field devices from a centralized location, reducing wiring complexity and enabling more efficient system management.

With its high durability, ease of installation, and superior reliability, the 5503-198 ensures seamless integration and performance across various industrial environments, including power plants, manufacturing facilities, and infrastructure systems. It provides real-time data transmission, ensuring that your systems operate smoothly and efficiently.

Technical Specifications

Applications

The Woodward 5503-198 Remote I/O Module is ideal for a wide range of applications in industries where real-time data collection and remote control are essential. Some of the most common applications include:

1. Power Generation: In power plants, the 5503-198 is used to monitor and control devices such as turbines, generators, and cooling systems, offering real-time data and control capabilities.

2. Industrial Automation: The module is often deployed in manufacturing environments to interface with various field devices like sensors, actuators, and PLCs, allowing operators to efficiently monitor and control the production process.

3. Process Control Systems: The 5503-198 is used to manage remote sensors and control actuators in process industries such as oil and gas, chemicals, and pharmaceuticals.

4. Infrastructure Systems: The module facilitates monitoring and control of critical infrastructure components, including pumps, motors, and HVAC systems, ensuring efficient and reliable operation.

5. Building Management Systems: Used in building automation systems to control HVAC, lighting, and security, the 5503-198 ensures centralized control and monitoring.

6. Marine Systems: The module can be integrated into marine control systems, enabling remote monitoring and management of onboard machinery and systems.

Advantages

• High Flexibility: The 5503-198 supports a wide range of I/O configurations, with up to 16 digital I/O channels and 8 analog I/O channels. This makes it ideal for both small and large systems, offering flexibility for a variety of installations.

• Real-Time Communication: The module ensures real-time data transmission between remote devices and the main control system. This capability is essential in dynamic environments where quick decision-making and immediate action are crucial.

• Seamless Integration: With compatibility for Modbus RTU and CAN communication protocols, the 5503-198 integrates easily into existing systems, enabling fast and smooth integration with other Woodward devices and third-party systems.

• Wide Operating Temperature Range: It can operate in extreme conditions, with an operating temperature range of -20°C to +70°C, making it suitable for a variety of harsh industrial environments.

• Energy Efficient: Consuming only 10W of power under typical conditions, the 5503-198 is energy-efficient, minimizing operational costs.

• Durability: Designed for long-lasting performance, the 5503-198 is built with robust protection features, including surge protection and overcurrent protection, ensuring reliability even in demanding conditions.

• Ease of Installation: The module can be mounted on DIN rails, simplifying the installation process and allowing for easy setup in control panels and industrial racks.

• Global Certifications: The module is certified for global use with CE, RoHS, and UL certifications, ensuring it meets international safety, environmental, and quality standards.

• Cost-Effective: The 5503-198 offers a cost-effective solution for remote I/O applications, providing high-performance features at a competitive price point.
