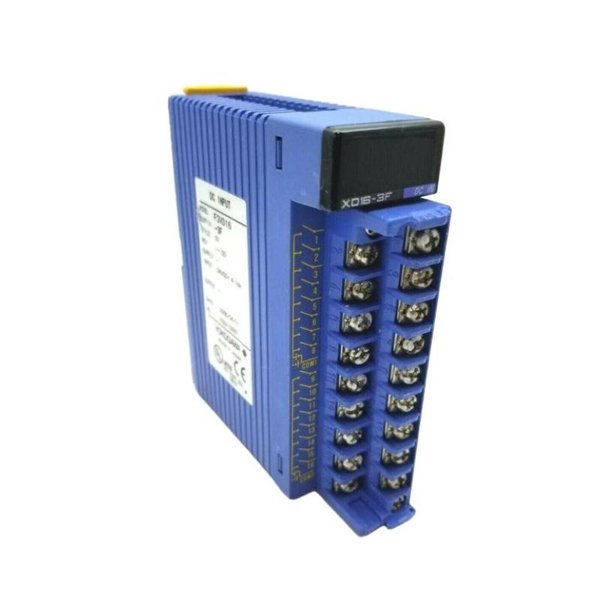

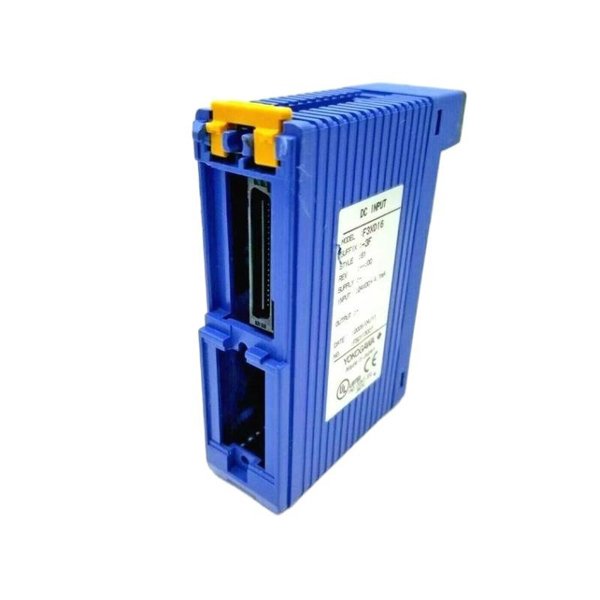

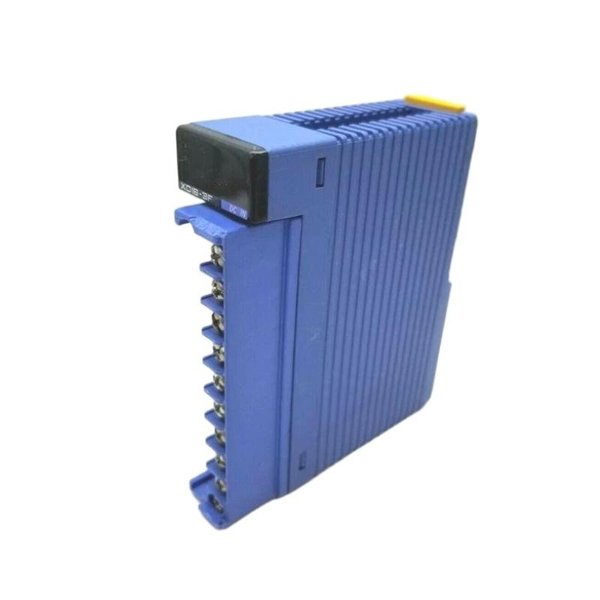

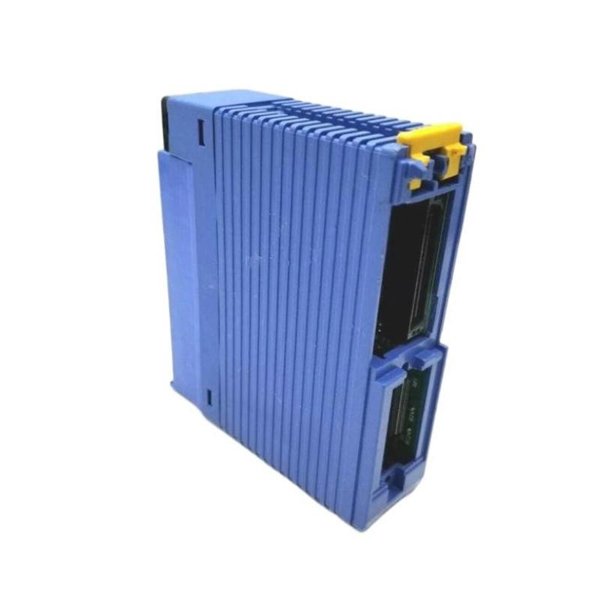

Yokogawa F3XD16-3F DC Input Module

Name: Yokogawa F3XD16-3F DC Input Module
Brand: Yokogawa
Availability: InStock

Manufacturer:Yokogawa

Product Number:F3XD16-3F

Product Type:DC Input Module

Origin:Japan

Dimensions:28.9 ×100 × 83.2 mm

Weight:0.16kg

Views:40

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Contact Sales

Product Description

The Yokogawa F3XD16-3F DC Input Module is a high-performance digital input module designed for the F3 Series control systems, providing reliable DC signal acquisition from field devices. This module enables precise monitoring of process conditions and equipment status, ensuring accurate data integration into control and monitoring systems.

Key Features

16-channel DC digital input module
High-speed signal acquisition for real-time monitoring
Compatible with Yokogawa F3 Series controllers and I/O modules
Industrial-grade design ensures reliable operation in harsh environments
Simplifies system integration and expansion
Built-in protection against overvoltage and short circuits

Technical Specifications

Item	Specification
Model Number	F3XD16-3F
Module Type	DC Input Module
Compatible System	Yokogawa F3 Series Controllers
Input Channels	16 DC input channels
Input Voltage	24 V DC
Response Time	≤ 1 ms
Operating Temperature	0 °C to +55 °C
Storage Temperature	-20 °C to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Power Supply	Supplied via F3 base unit
Mounting	DIN rail or panel mounting via base unit
Dimensions	28.9 ×100 × 83.2 mm
Weight	0.16 kg

Industry Applications

Oil & Gas – Monitoring field sensors and equipment status
Power Generation – Turbine and generator signal acquisition
Chemical & Petrochemical – Process condition monitoring
Water & Wastewater – Pump and motor status monitoring
Manufacturing – Industrial automation and control systems

Advantages

Provides fast and accurate digital input acquisition
Compatible with multiple F3 Series modules for system expansion
Industrial-grade design ensures stable operation in harsh conditions
Enhances process control reliability and reduces downtime
Simplifies system integration for field devices

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the F3XD16-3F module?

It provides 16-channel DC digital input acquisition for F3 Series control systems.

Q2: What is the input voltage range?

24 V DC.

Q3: How many channels does it support?

16 digital input channels.

Q4: Can it operate in industrial environments?

Yes, it is designed for reliable operation under industrial conditions.

Q5: What is the response time for inputs?

≤ 1 ms for fast signal acquisition.

Q6: How is the module powered?

Powered via the F3 base unit.

Q7: How is it mounted?

DIN rail or panel mounting via the base unit.

Q8: What are the module dimensions?

28.9 mm × 100 mm × 83.2 mm.

Q9: What is the module weight?

Approx. 0.16 kg.

Q10: Which industries typically use this module?

Oil & Gas, Power Generation, Chemical & Petrochemical, Water & Wastewater, and Manufacturing.
