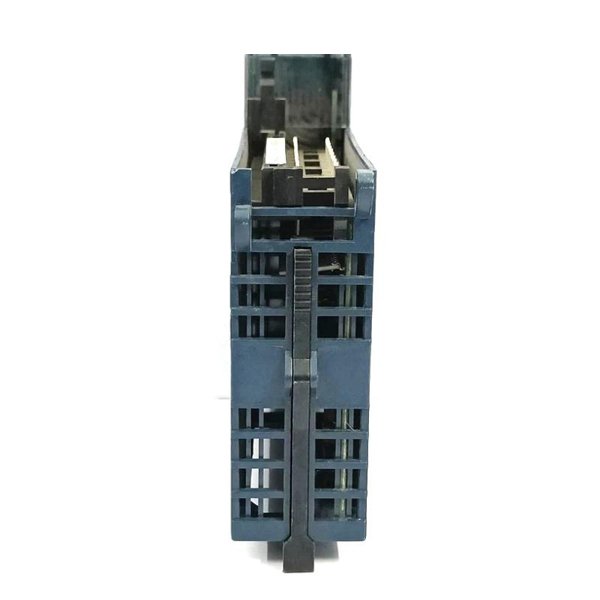

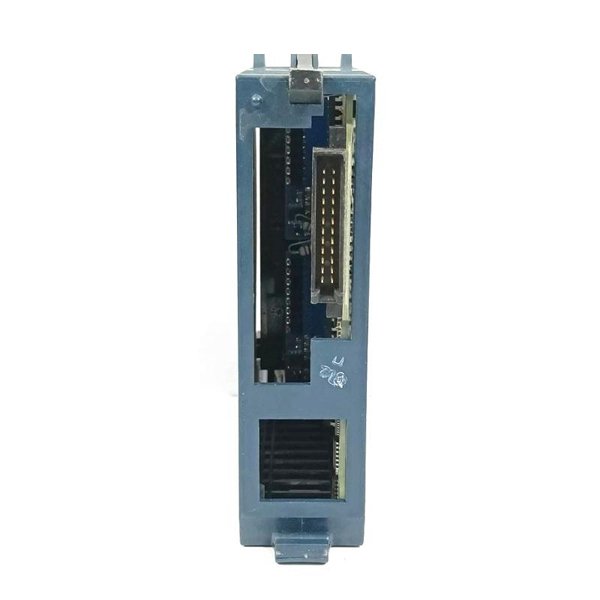

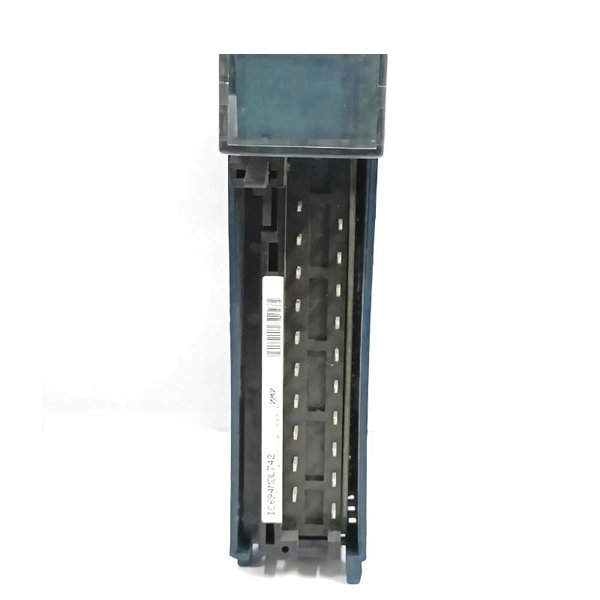

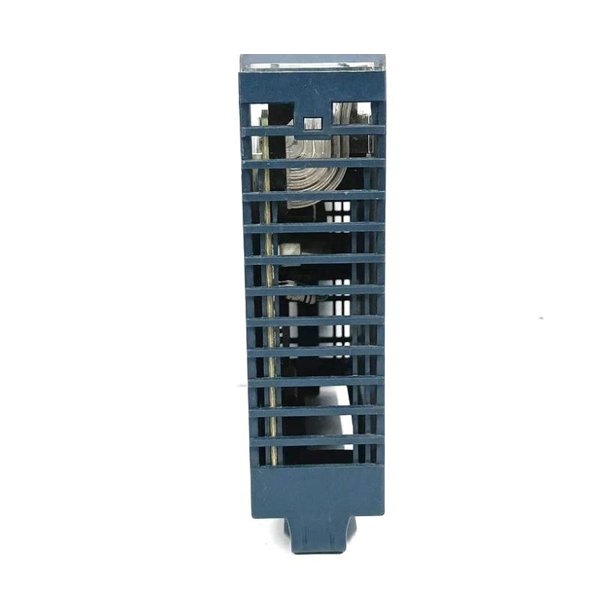

General Electric IC694MDL742D Voltage output Module

The GE IC694MDL742D is an advanced input/output module from the GE Fanuc Series 90-30 PLC system. This module is part of the modular control system, designed for industrial automation applications where high-performance processing and reliability are essential. The IC694MDL742D is typically used in systems requiring high-speed digital inputs, and it is designed for robust and long-lasting performance in a wide range of operational environments. This module is ideal for industries such as manufacturing, processing, and assembly, where precise control and monitoring are critical.

With its ability to interface seamlessly with various GE PLC systems, the IC694MDL742D allows for enhanced automation and monitoring capabilities, improving productivity and operational efficiency.

Technical Specifications

The following table outlines the key technical specifications of the GE IC694MDL742D module:

Product Applications

The GE IC694MDL742D is used in various industrial automation settings, including:

1. Manufacturing Automation: It helps in automating assembly lines by monitoring multiple inputs from sensors, switches, and other devices in real-time.

2. Process Control: In industries like chemicals or oil and gas, this module interfaces with sensors that provide data for monitoring and controlling various processes.

3. Motion Control: It assists in the precise control of machines and robotics that require accurate input signals for operation.

4. Building Automation: It can be used in HVAC, lighting, and security systems to automate the operation of various subsystems.

5. Packaging: In packaging lines, this module controls input devices like barcode scanners and product counters.

6. Automated Testing Systems: It can be integrated into automated testing stations to process inputs from various test sensors.

Product Advantages

• High-Speed Digital Inputs: The IC694MDL742D is engineered for applications requiring fast response times and accurate monitoring of input signals.

• Wide Temperature Range: It operates efficiently in a wide range of temperatures, making it suitable for harsh industrial environments.

• Modular Flexibility: As part of the GE 90-30 modular PLC system, this module offers flexibility to expand or upgrade systems as needed.

• Cost-Effective: It provides high functionality at a relatively low cost, making it a popular choice for industrial control systems.

• Easy Installation: The DIN rail mounting and modular design make installation quick and straightforward.

• Long-Term Durability: Built with durable materials, it is designed to withstand vibrations, humidity, and extreme temperatures.

• Seamless Integration: It is compatible with a variety of GE Fanuc PLCs, making it easy to integrate into existing automation systems.

FAQ (Frequently Asked Questions)

1. What is the input voltage for the IC694MDL742D module?

Answer: The input voltage for the IC694MDL742D module is 5V DC.

2. How many input channels are available on this module?

Answer: The IC694MDL742D module features 32 input channels, organized into two groups of 16 inputs each.

3. Can the IC694MDL742D module be used in outdoor applications?

Answer: The module is designed to operate in a temperature range of 0°C to 60°C. If used outdoors, it should be housed in a protective enclosure to prevent exposure to extreme environmental conditions.

4. What is the typical power consumption of the IC694MDL742D?

Answer: The typical power consumption of the IC694MDL742D module is 1W.

5. What is the storage temperature range for this module?

Answer: The IC694MDL742D module can be stored at temperatures ranging from -40°C to 85°C.

6. Is the IC694MDL742D compatible with other GE Fanuc PLCs?

Answer: Yes, the IC694MDL742D is fully compatible with other GE Fanuc PLCs in the Series 90-30 family.

7. How is the IC694MDL742D module mounted?

Answer: The module is designed for DIN rail mounting, making installation quick and easy.

8. What is the weight of the IC694MDL742D?

Answer: The IC694MDL742D weighs 0.37 kg.

9. Can this module be used in environments with high humidity?

Answer: Yes, the module is designed for industrial environments and can withstand typical humidity levels found in such settings.

10. What is the operating temperature range for this module?

Answer: The IC694MDL742D operates efficiently in temperatures ranging from 0°C to 60°C.
