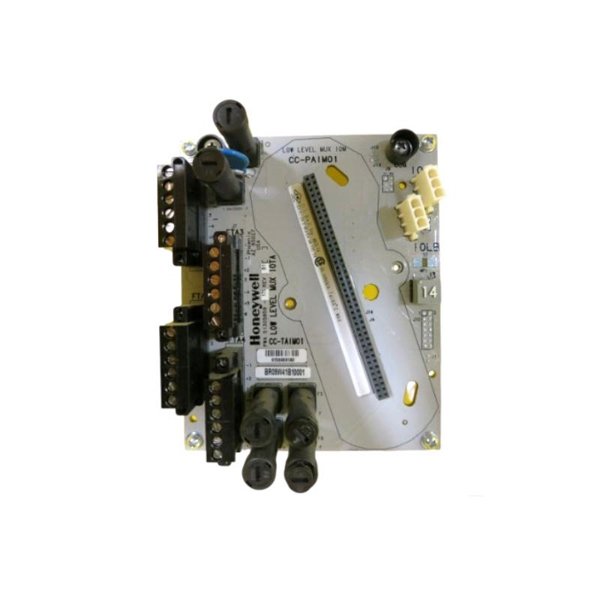

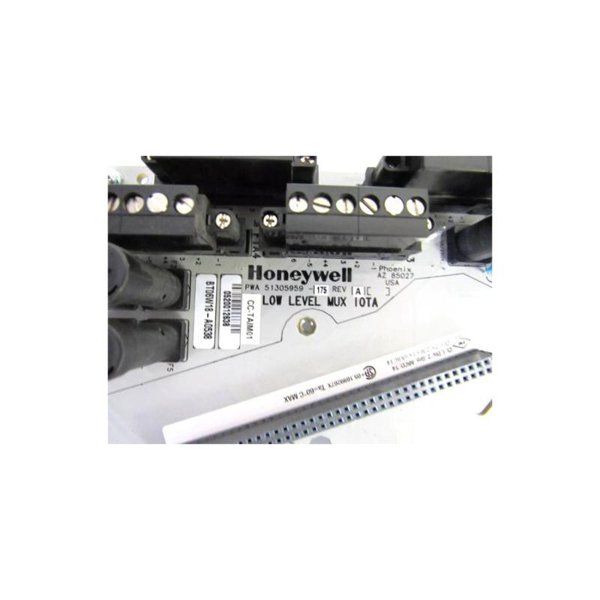

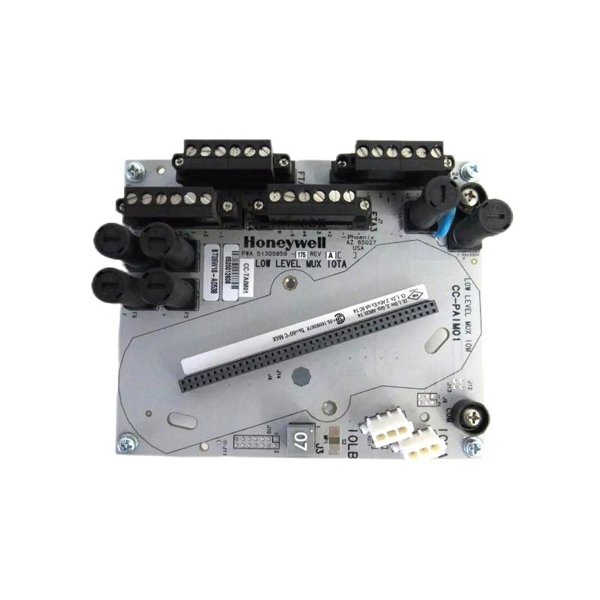

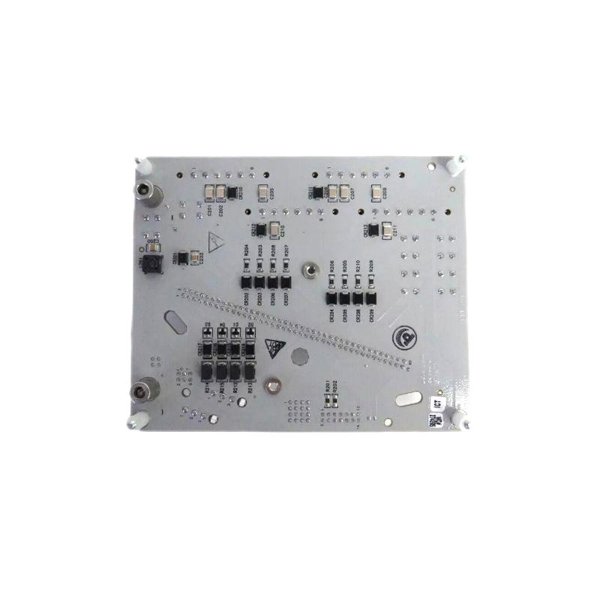

Honeywell CC-TAIM01 51305959-175 Analog Input Module

The Honeywell CC-TAIM01 51305959-175 is a Low-Level Analog Input Module designed for industrial automation and control systems. It enables precise data acquisition from various sensors and devices, ensuring accurate monitoring and control of complex processes.​

Product Specifications

Product Applications

The CC-TAIM01 module is utilized in various industrial applications, including:​

• Process Control Systems: Facilitates accurate data acquisition from sensors, enabling precise control of industrial processes.​

• Machine Monitoring: Collects and transmits data from machinery, aiding in performance analysis and predictive maintenance.​

• Building Automation: Integrates with building management systems to monitor environmental parameters and optimize energy usage.​

Product Advantages

• High Channel Density: Offers 64 fully-isolated input channels, allowing for extensive data collection within a compact module.​

• Robust Isolation: Ensures reliable data transmission with excellent isolation between channels, power supplies, and PM connections.​

• Flexible Input Handling: Capable of processing low-level analog signals, accommodating a variety of sensor types.​

• Reliable Performance: Designed for stable operation in industrial environments, contributing to system dependability.​

FAQ

1. What types of sensors are compatible with the CC-TAIM01 module?

   The module is designed to interface with low-level analog sensors, including thermocouples.

2. Can the CC-TAIM01 module be used in safety-critical applications?

   While the module offers reliable performance, suitability for safety-critical applications depends on system requirements and compliance with relevant safety standards.

3. Is the CC-TAIM01 module compatible with other Honeywell I/O modules?

   Yes, it is designed to integrate seamlessly with Honeywell’s Experion Series-C I/O systems.

4. What is the power consumption of the CC-TAIM01 module?

   Specific power consumption details are not provided in the available sources.

5. Does the module support HART communication?

   The CC-TAIM01 is primarily designed for low-level analog inputs and does not support HART communication.

6. What is the operating temperature range of the CC-TAIM01 module?

   It is designed to operate within standard industrial temperature ranges, typically 0°C to 60°C.

7. How is the CC-TAIM01 module mounted within a control system?

   Mounting details are not specified in the available sources.

8. Is the CC-TAIM01 module suitable for use in hazardous environments?

   The module’s suitability for hazardous environments depends on compliance with relevant certifications and standards.

9. What is the channel-to-channel isolation voltage rating?

   Specific isolation voltage ratings are not provided in the available sources.

10. Can the CC-TAIM01 module be used for both AC and DC signal inputs?

    The module is designed for low-level analog signals; compatibility with AC or DC signals depends on the sensor and system configuration.
