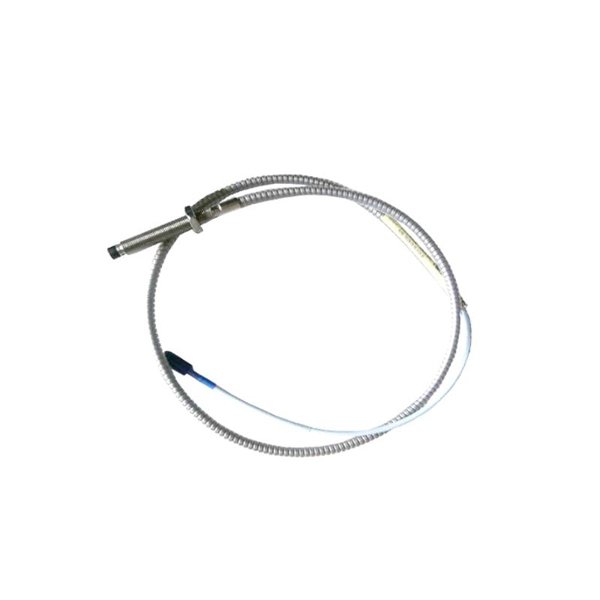

Bently Nevada 330101-00-30-10-02-05 3300 XL 8mm Proximity Probes

The Bently Nevada 330101-00-30-10-02-05 is part of the widely deployed 3300 XL 8mm Proximity Probe System, a flagship line in non-contact vibration and position sensing for rotating equipment. This model consists of a proximity probe designed to deliver consistent and accurate shaft displacement measurements in critical machinery. It is commonly used in conjunction with an extension cable and a Proximitor sensor, forming a complete eddy current proximity measurement system.

This specific part number (00-30-10-02-05) refers to a 30-foot probe assembly with a specific connector and armor configuration that enhances durability in industrial environments. The probe is designed for both OEM installation and retrofitting in machinery requiring high-performance condition monitoring solutions.

Product Specifications

Product Applications

The Bently Nevada 3300 XL 8mm Proximity Probe is deployed across various industries to monitor the performance and safety of rotating assets. Common applications include:

• Turbines (gas and steam)

• Large electric motors

• Compressors (centrifugal, axial, reciprocating)

• Industrial fans and blowers

• Gearboxes

• Centrifugal pumps

Industries making use of this proximity probe include:

• Power generation (thermal, hydro, nuclear)

• Oil and gas (offshore and onshore rigs, refineries)

• Petrochemical and chemical processing

• Steel and heavy manufacturing

• Mining and materials handling

• Pulp and paper production

Measurement functions include:

• Radial shaft vibration

• Axial thrust position

• Shaft orbit and phase measurement

• Runout and eccentricity analysis

Product Advantages

• Exceptional Durability: The armored cable and stainless-steel construction make the probe suitable for extreme industrial environments.

• Stable and Repeatable Measurements: Calibrated for high precision across the full linear range.

• Broad Temperature Range: Designed to operate in high-heat zones like turbine enclosures and engine compartments.

• Seamless System Integration: Fully compatible with Bently Nevada 3300 XL Proximitor sensors and extension cables.

• Standardized Output: Provides 200 mV/mil output, widely supported across Bently Nevada monitoring platforms.

• Field-Proven Reliability: Widely deployed in demanding applications worldwide with long operational lifespans.

• Flexible Mounting: Threaded body and locknut system allow for secure and adjustable installation.

FAQ

1. What does the part number 330101-00-30-10-02-05 specify?

   It indicates a 3300 XL 8mm probe with a 1.0 meter cable, mini coaxial armored connector, and specific configuration options for rugged environments.

2. What monitoring devices is this probe compatible with?

   It works seamlessly with 3300 XL Proximitor sensors and can be used with Bently Nevada 3500 and 7200 monitoring systems.

3. Can it be used for both vibration and position measurements?

   Yes, the probe can measure both dynamic shaft vibration and static shaft position (thrust).

4. Is the 8mm tip suitable for all shaft sizes?

   It is optimized for medium to large shaft diameters. Smaller shafts may benefit from 5mm probes.

5. Does the armor protect against EMI or just physical damage?

   Primarily physical protection, although the coaxial cable construction helps reduce electromagnetic interference.

6. How is the probe installed?

   It uses a threaded body and is typically secured with jam nuts. The tip should be properly gapped to the shaft surface.

7. What’s the recommended target material?

   AISI 4140 steel is the calibration standard for accurate response.

8. What is the minimum bend radius for the armored cable?

   It is recommended not to exceed a bend radius of 76 mm (3 inches) to prevent cable damage.

9. Can it be used in outdoor applications?

   Yes, with proper sealing and installation, the probe’s IP67 rating allows outdoor or wash-down area deployment.

10. Does the probe require recalibration?

    No routine recalibration is needed under normal conditions, but periodic verification during maintenance is recommended.
