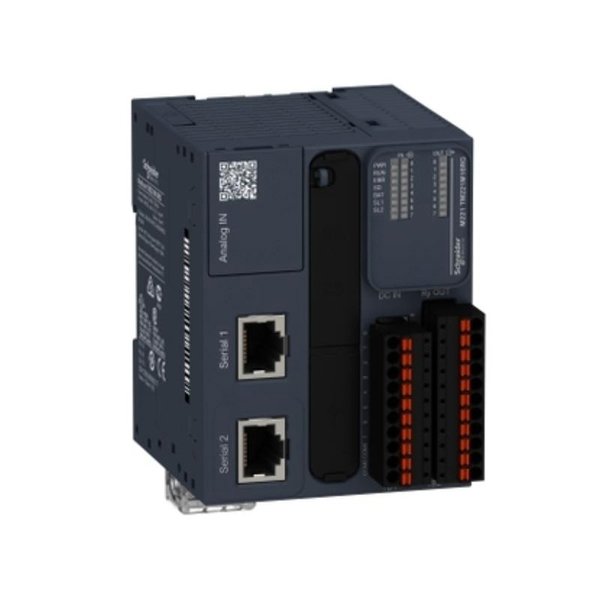

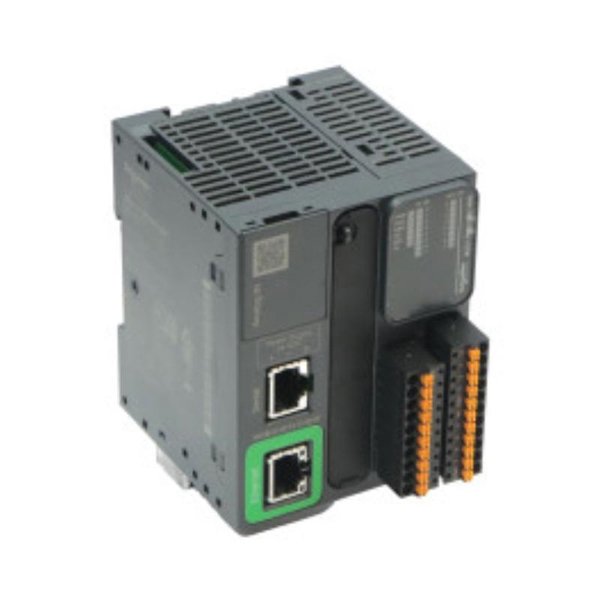

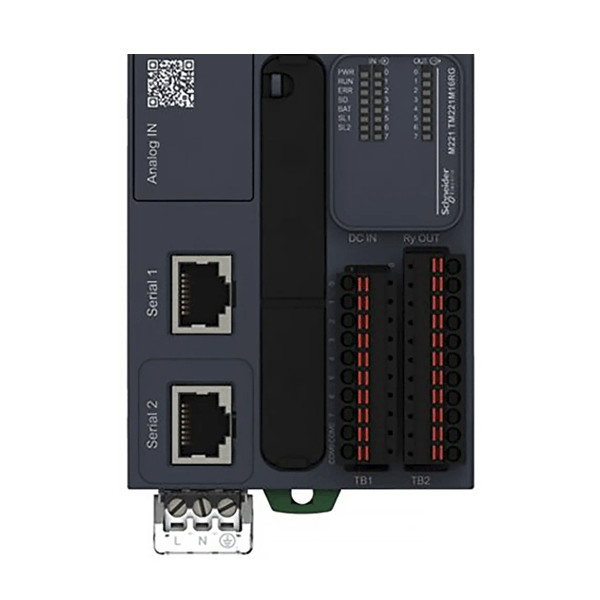

Schneider TM221M16RG Programmable Logic Controller

The Schneider TM221M16RG is a compact and versatile programmable logic controller (PLC) from Schneider Electric’s Modicon M221 series. Designed for small to medium automation applications, it offers a balance of performance, flexibility, and ease of use. With built-in communication ports, high-speed I/O, and a user-friendly programming environment (EcoStruxure Machine Expert Basic), this PLC is ideal for industrial automation, machinery control, and process management.

Product Parameters

Applications

The TM221M16RG is widely used in various industrial and commercial automation scenarios, including:

• Machine Control – Packaging machines, conveyor systems, and CNC equipment.

• Building Automation – HVAC control, lighting systems, and access control.

• Water & Wastewater Management – Pump control and level monitoring.

• Food & Beverage Industry – Bottling lines and mixing systems.

• Material Handling – Automated storage and retrieval systems (AS/RS).

• Renewable Energy – Solar tracking and wind turbine control.

Advantages

1. Compact & Space-Saving – Small dimensions make it ideal for tight control panels.

2. Flexible I/O Configuration – Supports expansion modules for additional inputs/outputs.

3. Built-in Communication – Ethernet and Modbus ports for easy integration.

4. User-Friendly Programming – EcoStruxure Machine Expert Basic simplifies development.

5. Reliable Performance – Robust design for harsh industrial environments.

6. Cost-Effective – Affordable solution for small to mid-range automation.

Frequently Asked Questions (FAQ)

1. What software is used to program the TM221M16RG?

   • EcoStruxure Machine Expert Basic (formerly SoMachine Basic).

2. Can I expand the I/O capacity of this PLC?

   • Yes, it supports additional I/O expansion modules.

3. What communication protocols are supported?

   • Modbus RTU, Modbus TCP/IP, and Ethernet/IP.

4. Is the TM221M16RG suitable for high-speed applications?

   • Yes, it supports fast digital I/O processing.

5. What is the maximum operating temperature?

   • -10°C to +55°C.

6. Does it support analog inputs natively?

   • No, but analog modules can be added.

7. Can I use this PLC for safety-critical applications?

   • No, it is not a safety PLC (for safety applications, consider Modicon M241 Safety).

8. What is the power supply range?

   • 100-240V AC or 24V DC.

9. How much memory does it have for programming?

   • 16 KB for program storage and 8 KB for data.

10. Is the TM221M16RG compatible with other Schneider PLCs?

    • Yes, it can communicate with other Modicon PLCs via Modbus.
