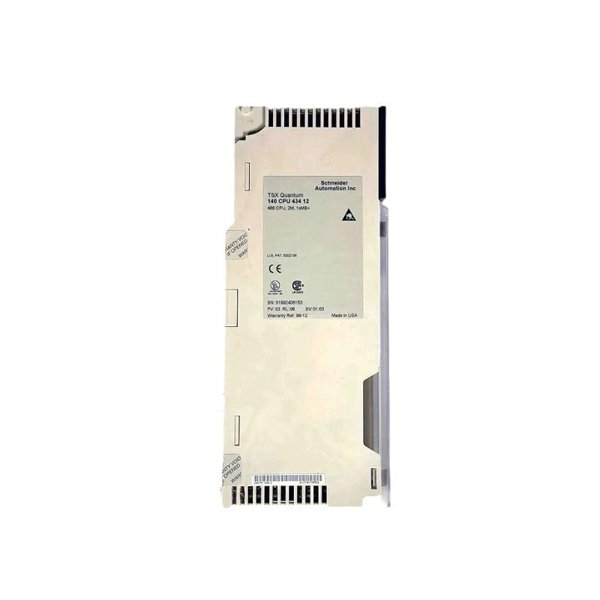

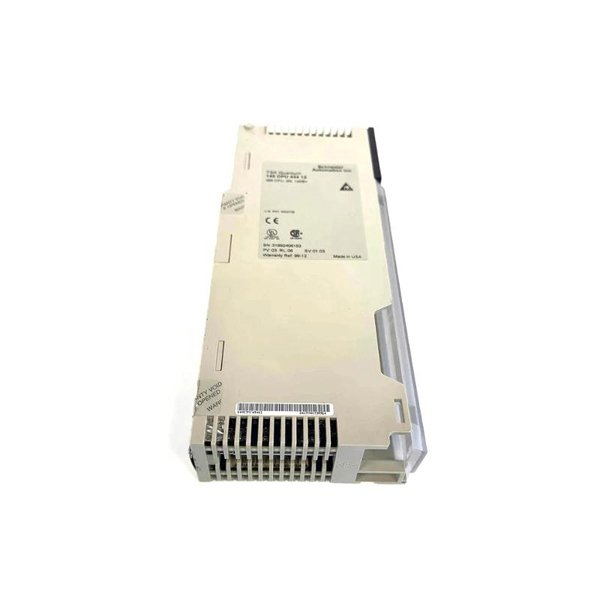

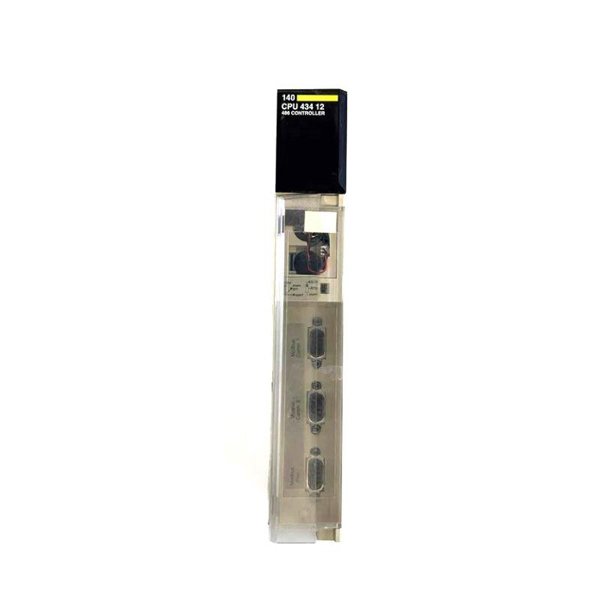

Schneider 140CPU43412 Unity Processor

The Schneider 140CPU43412 Unity Processor is a versatile, high-performance programmable logic controller (PLC) designed for industrial automation and control systems. As part of Schneider Electric’s Modicon Quantum series, the Unity Processor integrates seamlessly into the Modicon platform, offering a robust and scalable solution for various applications. This processor is optimized for applications requiring high-speed control, data processing, and complex communication tasks, making it ideal for industries such as manufacturing, energy, water treatment, and more.

The 140CPU43412 Unity Processor is built to handle demanding control operations, featuring high-speed processing, expanded memory capacity, and advanced communication capabilities. It supports a wide range of I/O configurations, making it suitable for both small and large-scale systems. The Unity Processor’s efficient design and high reliability ensure minimal downtime, helping businesses enhance their operational efficiency.

Product Specifications

The following table summarizes the key specifications of the Schneider 140CPU43412 Unity Processor:

Applications

The Schneider 140CPU43412 Unity Processor is designed for a wide array of industrial automation applications. Its powerful performance and versatility make it suitable for:

1. Manufacturing: Control of automated production lines, assembly systems, and process control in industries such as automotive, consumer goods, and packaging.
2. Energy Management: Control and optimization of energy consumption in power plants, substations, and renewable energy systems.
3. Water Treatment: Efficient monitoring and control of water and wastewater treatment plants, including pumping stations, filtration systems, and chemical dosing.
4. Building Automation: Integration into building management systems for controlling HVAC, lighting, and security systems.
5. Oil and Gas: Application in drilling, extraction, and refinery operations for precise control and monitoring of processes.
6. Transport and Infrastructure: Control of traffic management systems, railway signaling, and other critical infrastructure operations.
7. Industrial Equipment: Monitoring and controlling complex machinery and equipment in a wide range of industries.

Advantages

The Schneider 140CPU43412 Unity Processor offers several advantages that make it an excellent choice for automation and control systems:

1. High Performance: With a dual-core processor and fast processing speeds (200 ns per cycle), the Unity Processor delivers real-time control and data processing, ensuring quick response times in dynamic environments.
2. Scalability: Supports a large number of I/O points (up to 16,000), making it scalable for small, medium, and large systems. Its flexibility in configuration allows it to meet diverse application requirements.
3. Communication Flexibility: Multiple communication ports (Ethernet, USB, and serial ports) and support for various industrial protocols (Modbus, Ethernet/IP) ensure seamless integration with other devices and systems.
4. Enhanced Memory Capacity: With 1 MB RAM and 32 MB flash memory, the processor can handle large programs and complex data, making it ideal for advanced applications.
5. Ease of Integration: Fully compatible with Schneider Electric’s Unity Pro software, making programming, configuration, and maintenance straightforward and efficient.
6. Reliability: Built to operate in harsh industrial environments with an extended temperature range and low power consumption, ensuring consistent performance even under demanding conditions.
7. Compact Design: The compact form factor (120 mm x 120 mm x 90 mm) makes it ideal for systems where space is limited.
