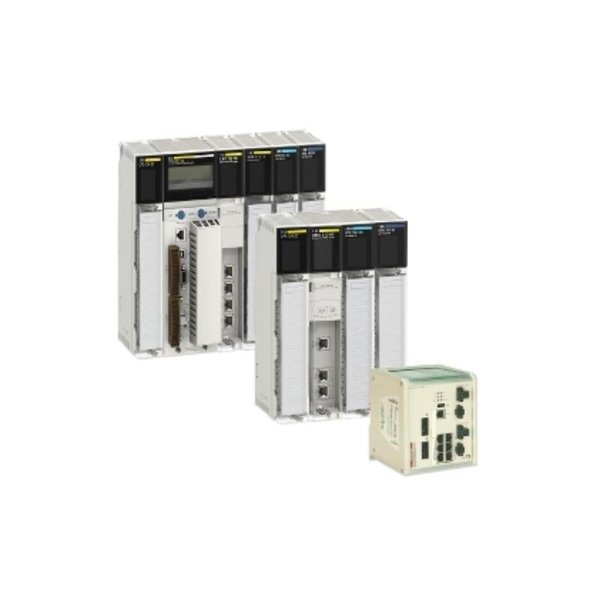

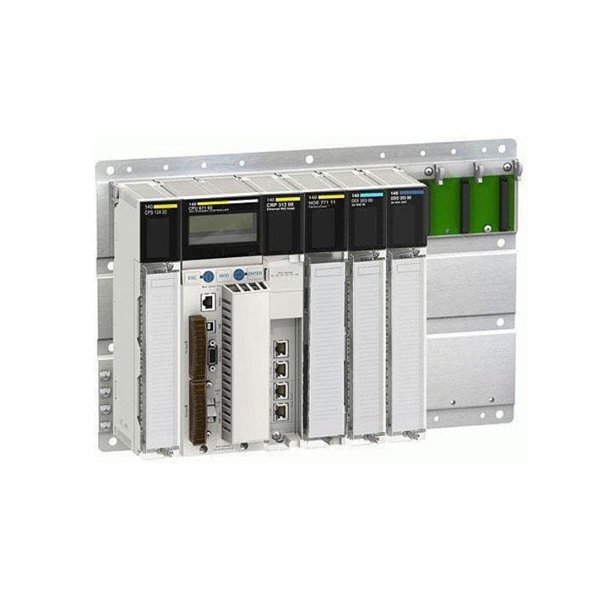

Schneider 140DDO88500C Discrete Output Module
Manufacturer:Schneider
Product Number:140DDO88500C
Product Type:Discrete Output Module
Origin:France
Dimensions:103.9 × 40.3 × 250 mm
Weight:0.45 kg
Views:35
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider 140DDO88500C is a high-performance discrete output module designed for Modicon Quantum automation systems. It offers 32 output channels, supporting 24V DC sink/source logic, and is ideal for fast and reliable switching of digital signals in industrial control systems.
Product Features
-
32 discrete outputs
-
24V DC, sink/source type
-
Designed for Modicon Quantum PLCs
-
Short-circuit and overload protection
-
Status indicators for each channel
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Discrete Output Module |
| Part Number | 140DDO88500C |
| Number of Outputs | 32 |
| Output Voltage | 24V DC |
| Output Type | Sink/Source |
| Output Current | 0.5 A per channel |
| Isolation | 1780 Vrms |
| Response Time | < 1 ms |
| Diagnostics | Channel-level status indication |
| Mounting | Rack-mounted |
| Module Dimensions (W×D×H) | 103.9 × 40.3 × 250 mm |
| Weight | 0.45 kg |
Applications
-
Industrial automation systems
-
Machine control panels
-
Process control systems
-
Packaging and bottling lines
-
Conveyor and transport systems
Advantages
-
High-density output for space efficiency
-
Fast switching for time-critical applications
-
Clear LED diagnostics for maintenance ease
-
Supports both sink and source wiring
-
Robust design for harsh environments
FAQ
Q1: What type of signals does the 140DDO88500C support?
A1: It supports 24V DC discrete (digital) output signals, both sink and source type.
Q2: Is the module hot-swappable?
A2: Yes, the module can be replaced while the system is powered, ensuring minimal downtime.
Q3: How many outputs are available on this module?
A3: The module provides 32 discrete output channels.
Q4: What is the maximum current per output?
A4: Each channel can handle up to 0.5 A.
Q5: Does the module have built-in diagnostics?
A5: Yes, it includes LED indicators for real-time channel status.
Q6: Can this module work in high-vibration environments?
A6: Yes, it is built to operate reliably in industrial environments with vibration.
Q7: What is the isolation rating between channels and bus?
A7: The isolation rating is 1780 Vrms.
Q8: Is the terminal block removable?
A8: Yes, it features a removable terminal block for easy maintenance.
Q9: What PLC series is this module compatible with?
A9: It is designed for use with the Modicon Quantum series.
Q10: Can I use mixed wiring (sink/source) on the same module?
A10: Yes, but each group of 16 outputs must use the same wiring type.
