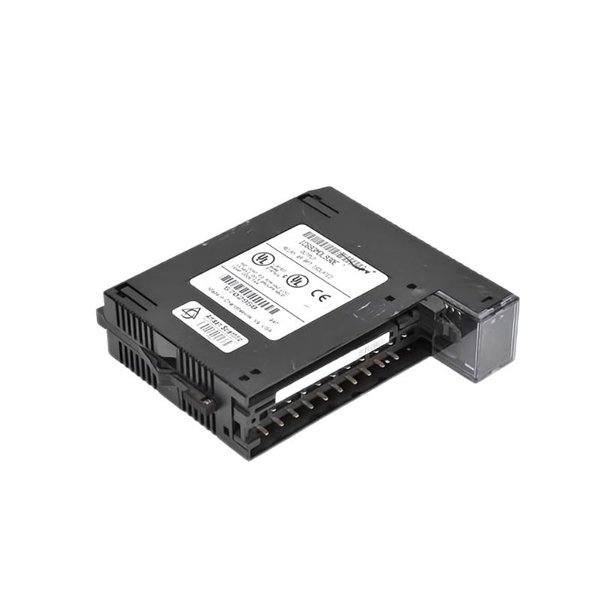

General Electric IC693MDL930 Isolated Relay Output Module

The GE IC693MDL930 is an 8-point Isolated Relay Output Module designed for use with the GE Series 90-30 PLC system. Engineered to offer maximum flexibility and electrical isolation, the module provides eight individually isolated, Form C (normally open and normally closed) relay outputs. It is used for switching AC or DC loads, making it suitable for a wide variety of industrial automation tasks.

Each output on the IC693MDL930 is isolated from the others, which allows the user to connect each output to different voltage levels or ground references. This feature makes the module especially useful in control applications requiring diverse loads and electrical separations. It’s ideal for driving indicators, solenoids, small motors, and other discrete devices.

Product Specifications

Product Applications

The IC693MDL930 is tailored for a wide range of automation environments and can be deployed across numerous industries. Key applications include:

• Factory Automation: Control of actuators, relays, alarms, and indicator lamps.

• Process Control Systems: Driving solenoid valves, contactors, and interlock circuits.

• Power Plants: Load control and system interlocks for turbine auxiliary systems.

• Water Treatment Facilities: Operation of pumps, level switches, and alert systems.

• Packaging Lines: Control of timing relays and stepper motor activation.

• Building Automation: Switching of HVAC relays, light control, and alarm indicators.

Its isolated architecture makes it a suitable choice for systems requiring signal protection, interference immunity, or interconnection to mixed-voltage systems.

Product Advantages

• Channel-to-Channel Isolation: Each output is isolated from others, enabling safe interfacing with devices operating at different voltages or grounds.

• Versatile Voltage Support: Capable of switching both AC and DC loads, accommodating a wide variety of field devices.

• Mechanical Relay Outputs: Ensures no leakage current when open – ideal for true OFF states.

• Long Life & High Reliability: Built for over 10 million mechanical operations and over 100,000 electrical operations at rated load.

• LED Status Indicators: One LED per channel for real-time status monitoring and easy diagnostics.

• Wide Load Compatibility: Supports low-voltage DC circuits as well as high-voltage AC applications up to 250 VAC.

• Secure Terminal Connections: Screw terminal blocks allow robust and maintenance-friendly wiring.

• Compact Form Factor: Easily fits into standard 90-30 racks with minimal space requirements.

Frequently Asked Questions (FAQ)

1. Q: How many relay outputs are available in the IC693MDL930?

   A: There are 8 isolated relay outputs.

2. Q: Can each output be connected to a different voltage level?

   A: Yes, all outputs are channel-to-channel isolated, allowing separate voltage or ground references.

3. Q: Is this module suitable for both AC and DC loads?

   A: Yes, it supports both AC (up to 250 VAC) and DC (up to 30 VDC) loads.

4. Q: What is the maximum current capacity per relay?

   A: Each relay can handle up to 2 A at rated voltage.

5. Q: What type of relays are used in this module?

   A: Form C (SPDT – Single Pole Double Throw) mechanical relays.

6. Q: Is the module hot-swappable in a running system?

   A: No, the module should be inserted or removed only when the system is powered down.

7. Q: How is output status indicated?

   A: Each channel has a corresponding LED that lights up when the relay is energized.

8. Q: What kind of terminal connections are used?

   A: Screw-type removable terminal blocks for easy wiring and replacement.

9. Q: Can the module handle inductive loads?

   A: Yes, but it is recommended to use snubber circuits or suppression diodes for inductive loads.

10. Q: What PLC systems is this module compatible with?

    A: It is designed for GE Fanuc Series 90-30 PLC systems.
