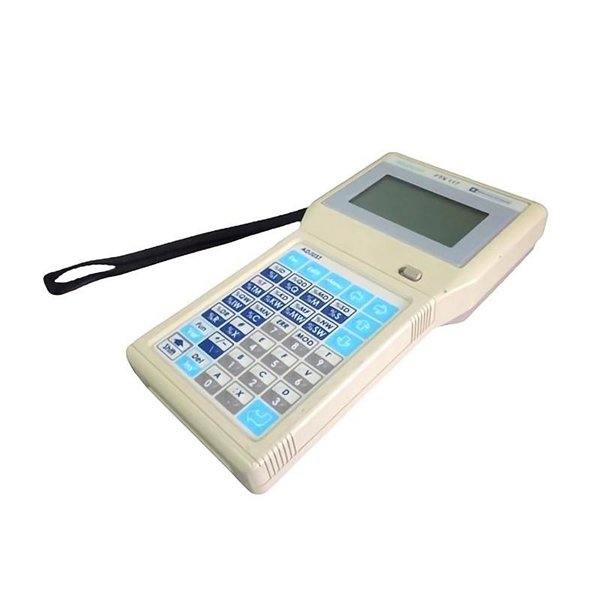

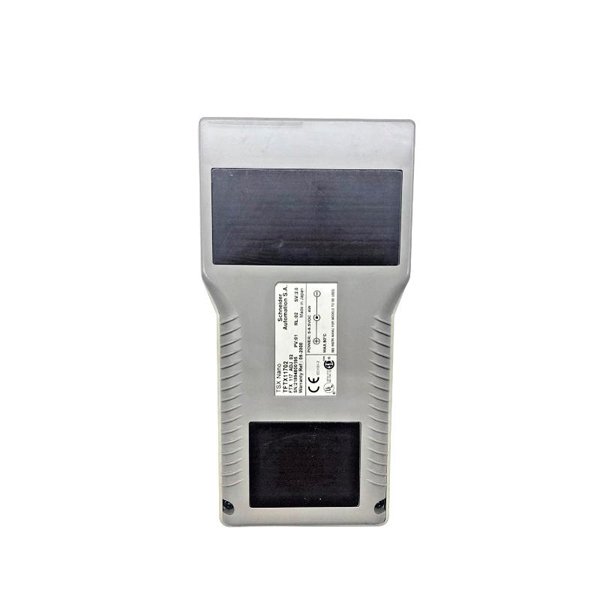

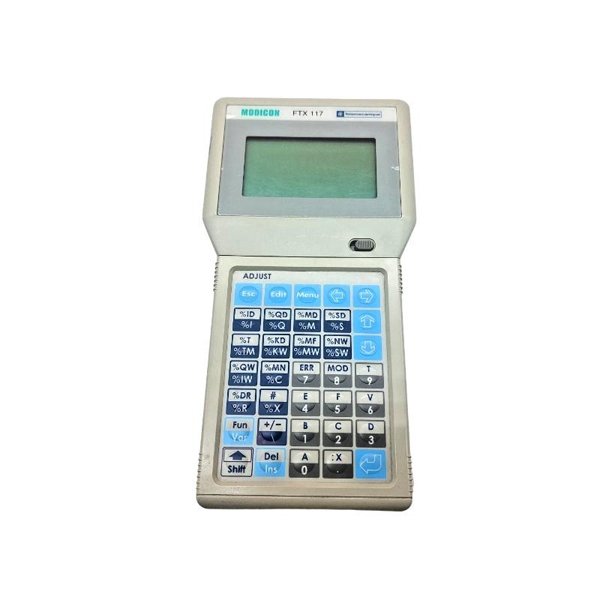

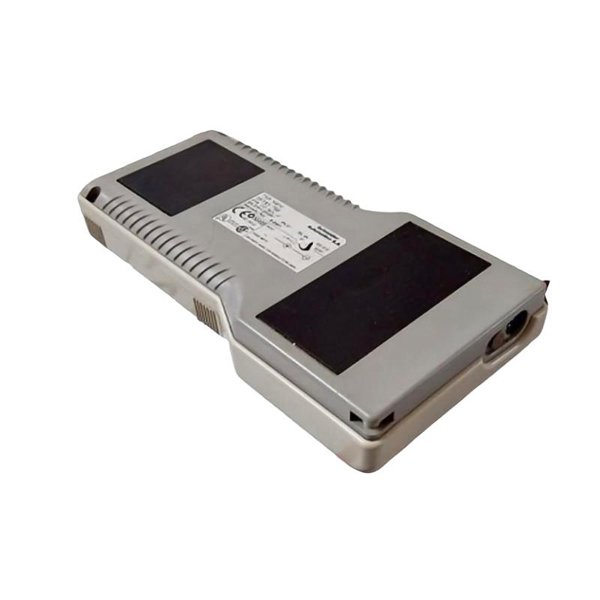

Schneider TFTX11702 Terminal Programmer
Manufacturer:Schneider
Product Number:TFTX11702
Product Type:Terminal Programmer
Origin:France
Dimensions:180 × 110 × 45 mm
Weight:0.299 kg
Views:31
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider TFTX11702 terminal programmer is a configuration and programming device designed specifically for Schneider Electric automation systems. It serves as an interface tool for programming, parameterizing, and diagnosing controllers, drives, and other field devices. Designed for industrial environments, the TFTX11702 is essential for efficient commissioning and maintenance of automation equipment, where reliable and user-friendly programming is crucial.
The TFTX11702 offers powerful communication capabilities, intuitive control features, and compatibility with a wide range of Schneider platforms, providing engineers and technicians with a practical solution for field configuration and troubleshooting tasks. Its durable construction and ergonomic design make it ideal for field service and panel integration.
Product Specifications
| scope | value |
|---|---|
| model | TFTX11702 |
| Manufacturer | Schneider Electric |
| Product Type | Terminal Programmer |
| System compatibility | Schneider PLCs, drives and field devices |
| Communication interface | RS-232 / RS-485 / USB (depending on configuration) |
| Supported protocols | Modbus RTU, Schneider proprietary communication protocol |
| Display Type | Alphanumeric LCD/LED status indicators |
| power supply | 24 VDC nominal (18–30 VDC) |
| Programming Functions | Parameter setting, firmware upload, diagnosis |
| keyboard | Tactile membrane keys |
| Data Storage | Non-volatile memory for configuration retention |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity Range | 5%–95% non-condensing |
| Housing Material | Industrial-grade thermoplastic |
| Mounting Type | Panel-mount or handheld operation |
| Safety Certifications | UL, CE, CSA |
| Compliance Standards | IEC 61131, EN 61000-6-2, EN 61000-6-4 |
| Dimensions (W × H × D) | 180 × 110 × 45 mm |
| Weight | 0.299 kg |
Product Applications
-
PLC Configuration: Used for parameterization and setup of Schneider programmable logic controllers.
-
Drive Programming: Facilitates configuration and tuning of Schneider variable frequency drives (VFDs).
-
Field Device Diagnostics: Enables reading and adjusting of device parameters on-site.
-
Industrial Commissioning: Ideal tool for commissioning new automation panels and systems.
-
Maintenance and Troubleshooting: Allows quick adjustments and diagnostics in the field.
-
Firmware Updates: Supports firmware uploads for controllers and intelligent devices.
-
System Integration: Assists in integrating Schneider automation devices into larger systems.
Product Advantages
-
Versatile Compatibility: Supports a wide range of Schneider Electric controllers and devices.
-
Reliable Communication: Provides robust RS-232/RS-485/USB connectivity for flexible integration.
-
Portable and Ergonomic: Designed for both handheld and panel-mounted operation.
-
Non-Volatile Memory: Retains configuration data even when power is removed.
-
User-Friendly Interface: Tactile keypad and clear display for easy navigation.
-
Industrial Durability: Built to withstand harsh industrial environments.
-
Efficient Troubleshooting: Simplifies diagnostics and maintenance tasks on-site.
-
Compliance with Standards: Meets IEC and UL requirements for safety and electromagnetic compatibility.
FAQ
-
Which Schneider platforms are supported by the TFTX11702 Terminal Programmer?
It supports Schneider PLCs, drives, and field devices using Modbus RTU and proprietary protocols.
-
What communication interfaces are available on the TFTX11702?
It provides RS-232, RS-485, and USB interfaces depending on configuration.
-
Can the TFTX11702 be used for firmware updates?
Yes, it supports uploading firmware to compatible Schneider controllers and devices.
-
Does the terminal programmer store configuration data when powered off?
Yes, it includes non-volatile memory to retain settings without power.
-
What is the typical operating voltage for the TFTX11702?
It operates at 24 VDC nominal, with an acceptable range of 18–30 VDC.
-
Is the TFTX11702 suitable for panel mounting?
Yes, it can be used as a handheld device or mounted on a panel for permanent installation.
-
What diagnostic functions are available?
It can read device status, error codes and perform real-time parameter monitoring.
-
Is this device compatible with Modbus RTU networks?
Yes, it supports Modbus RTU communication and can connect to various devices.
-
What is the maximum operating temperature of the TFTX11702?
It can operate reliably up to +50°C in industrial environments.
-
Does it require special software to operate?
No, it is designed as a standalone hardware terminal programmer and requires no external software.
