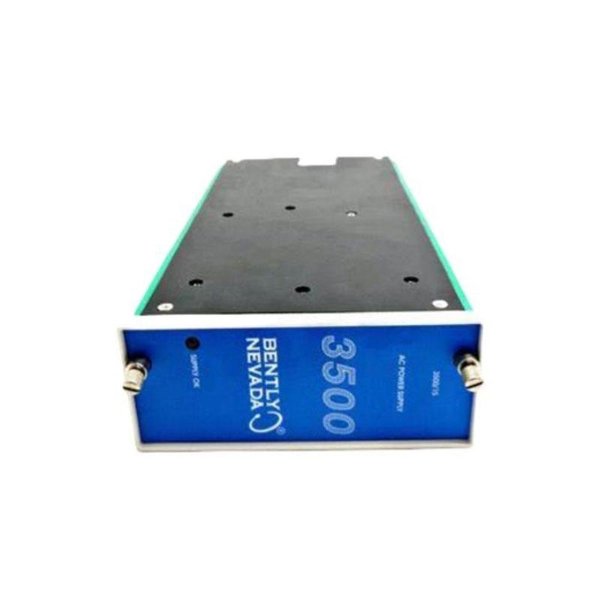

Bently Nevada 3500/15-01-03-01 Power Supply Module

The Bently Nevada 3500/15-01-03-01 power supply module is a high-performance, reliable solution designed for the 3500 Series condition monitoring systems. This module is crucial in ensuring a consistent, stable power supply to the system, which is essential for maintaining the accuracy and reliability of condition monitoring across various industrial sectors.

Built to perform in rugged environments, the 3500/15-01-03-01 is engineered to withstand extreme conditions without compromising on performance. It is used in industries where uptime is critical, such as power generation, oil & gas, chemical processing, and manufacturing, providing a secure, uninterrupted power supply to monitoring equipment.

The 3500/15-01-03-01 model is particularly designed for high-reliability applications where power stability is paramount. It is engineered with advanced technology to deliver precise power conversion and regulation, ensuring smooth operations even in demanding environments.

Technical Parameters

Applications

The 3500/15-01-03-01 power supply module is designed for use in industrial applications where reliable power is crucial for the continuous operation of monitoring systems. It is particularly useful in environments where critical systems need to be powered without interruption, such as:

• Power Generation: Provides uninterrupted power to monitoring systems in power plants, helping to maintain operational efficiency and safety.

• Oil & Gas: Ensures stable power supply in remote and harsh oil and gas environments, crucial for the reliability of monitoring systems in these industries.

• Chemical Processing: Used in chemical plants where monitoring of critical systems and processes is vital for safety and efficiency.

• Manufacturing and Automation: Ensures that manufacturing equipment and automated control systems are powered consistently to avoid production downtime.

Advantages

1. High Reliability: With a MTBF of 200,000 hours, the 3500/15-01-03-01 power supply module is designed for long-lasting and dependable performance, reducing the need for frequent replacements.

2. Wide Input Voltage Range: The module accepts an input voltage of 85–264 VAC, ensuring compatibility with various global electrical systems and environments.

3. Compact and Lightweight: With dimensions of 120.7 x 50.8 x 251.5 mm and a weight of only 1.39 kg, the module can easily be installed in compact spaces and does not require a large installation footprint.

4. Efficient Power Consumption: The module consumes only 90 W, ensuring that it does not significantly increase the overall energy cost of the monitoring system while providing reliable power.

5. Versatility Across Industries: Its robust design makes it suitable for diverse industrial applications, from power generation to manufacturing, offering reliable power in both harsh and controlled environments.

6. Durability in Harsh Conditions: The 3500/15-01-03-01 is engineered to operate in environments with a wide temperature range (0°C to +70°C) and relative humidity from 5% to 95% (non-condensing), ensuring performance even in extreme conditions.

FAQ

Q1: What is the input voltage range for the Bently Nevada 3500/15-01-03-01 power supply?

A1: The input voltage range is 85–264 VAC, 50/60 Hz, which makes it suitable for use in various global regions with different electrical standards.

Q2: What is the output voltage of this power supply module?

A2: The module provides a stable 24 VDC output voltage with an accuracy of ± 1%, ensuring consistent power delivery to connected devices.

Q3: How much current can the 3500/15-01-03-01 module supply?

A3: This power supply module can deliver up to 3.5 A of output current, making it suitable for powering multiple components in the monitoring system.

Q4: What are the physical dimensions of the power supply module?

A4: The dimensions of the 3500/15-01-03-01 module are 120.7 x 50.8 x 251.5 mm, allowing for easy integration into space-constrained environments.

Q5: How much does the 3500/15-01-03-01 module weigh?

A5: The module weighs 1.39 kg, making it lightweight and easy to handle during installation.

Q6: What is the operating temperature range of this module?

A6: The operating temperature range is from 0°C to +70°C, which allows the module to function effectively in a variety of environmental conditions.

Q7: What is the humidity tolerance of the module?

A7: The 3500/15-01-03-01 can operate in environments with relative humidity ranging from 5% to 95% (non-condensing), making it versatile in different climates.

Q8: What is the Mean Time Between Failures (MTBF) of this power supply module?

A8: The MTBF of the 3500/15-01-03-01 module is 200,000 hours, demonstrating its long-lasting reliability and low maintenance requirements.

Q9: Is this power supply module suitable for hazardous environments?

A9: While the module is durable and reliable, it is not specifically rated for hazardous environments. It is important to assess the environmental conditions and confirm compatibility before installation.

Q10: How much power does the 3500/15-01-03-01 module consume?

A10: The power consumption of this module is 90 W, ensuring it operates efficiently without consuming excessive energy.
