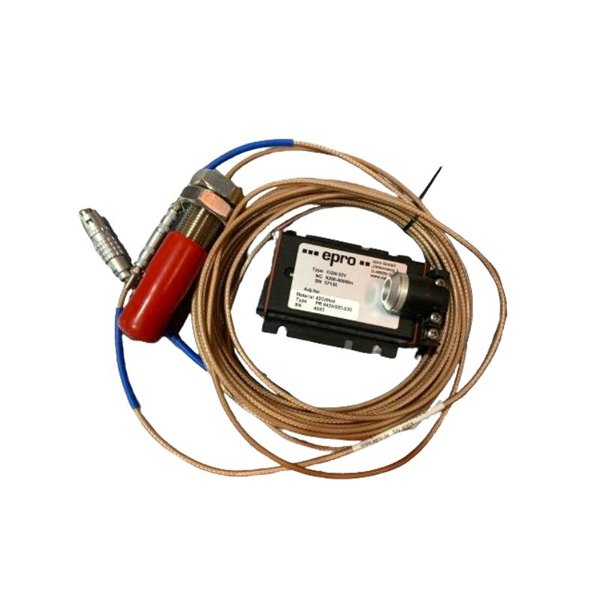

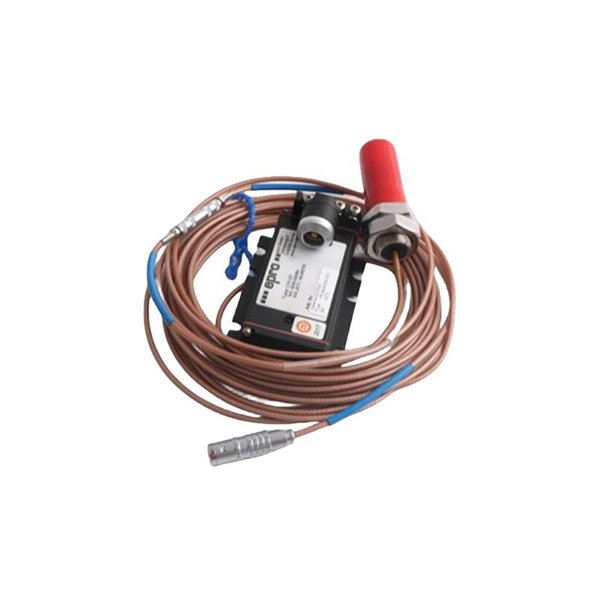

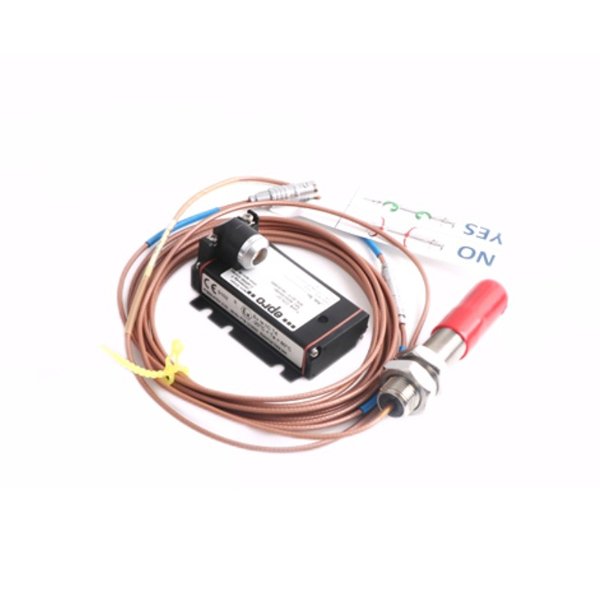

Epro PR6424/010-131+CON031 16mm Eddy Current Sensor

The Epro PR6424/010-131+CON031 16mm Eddy Current Sensor is a high-performance measurement device designed for precision measurement and monitoring of displacement, position, and vibration in industrial applications. This sensor uses the principle of eddy current technology to detect the position or movement of a conductive target. The device is commonly used for non-contact measurement applications, providing high accuracy, fast response times, and long-term stability.

The Epro PR6424/010-131+CON031 sensor integrates seamlessly with control systems in industrial environments, where reliability and precision are paramount. Its robust design ensures it can perform in harsh conditions, such as high-temperature environments, making it ideal for use in machinery, motors, turbines, and other critical systems that require continuous monitoring and measurement.

Product Parameters

Here are the detailed specifications for the Epro PR6424/010-131+CON031 16mm Eddy Current Sensor:

Applications

The Epro PR6424/010-131+CON031 16mm Eddy Current Sensor is ideal for a variety of applications where precise, non-contact measurement of position, displacement, or vibration is required. Some of the key applications include:

1. Motor and Turbine Monitoring: Used in rotating machinery such as motors and turbines, where accurate measurement of shaft displacement and vibration is critical for maintenance and safety.

2. Position Measurement: The sensor is ideal for measuring the position of moving parts in industrial systems, such as linear actuators, conveyors, or robotic arms.

3. Vibration Monitoring: In critical systems such as pumps and compressors, the sensor can monitor vibrations to detect early signs of mechanical wear or failure, helping to prevent costly downtime.

4. Machine Monitoring: The sensor is extensively used for condition monitoring of machinery and industrial equipment, where accurate displacement data helps optimize performance and reduce maintenance costs.

5. Test and Measurement Systems: Often utilized in laboratory and test environments where precise displacement measurement is required for scientific experiments, material testing, and product development.

6. Aerospace: In the aerospace industry, this sensor can be used for non-contact measurement of components such as actuators, control surfaces, and turbine blades.

Advantages

1. High Precision and Accuracy: The Epro PR6424/010-131+CON031 sensor provides a measurement accuracy of ±0.5% of full scale, making it highly reliable for precise position and displacement measurements.

2. Non-contact Measurement: This sensor operates on the principle of eddy current technology, allowing it to provide measurements without physical contact with the target. This significantly reduces wear and tear on both the sensor and the object being measured.

3. Wide Temperature Range: The sensor is designed to operate effectively in extreme temperature conditions, ranging from -40°C to +85°C, making it suitable for industrial applications in challenging environments.

4. Fast Response Time: With a frequency response of up to 50 kHz, the sensor provides rapid measurements, which is essential in applications that require real-time monitoring, such as vibration detection and motor speed measurements.

5. Compact and Robust Design: With a compact size and a protective IP67 rating, the sensor is built to withstand harsh industrial conditions, including exposure to dust, moisture, and mechanical stress.

6. Versatile Output Options: The sensor offers multiple output options, including analog signals (0-10V, 4-20mA), providing flexibility for integration into various control and monitoring systems.

7. Easy Installation: The sensor comes with standard mounting options (flange or bracket) and an M12 connector for easy integration with existing systems.

8. Long-term Stability: The eddy current technology used in this sensor ensures long-term stability and reliability, with minimal drift over time, even under continuous use.

9. Compact Footprint: Its compact size and lightweight design make it easy to install in space-constrained applications, without compromising on performance.

10. Highly Durable: The sensor’s construction ensures durability, even in harsh industrial environments, ensuring a long lifespan with minimal maintenance.

Frequently Asked Questions (FAQ)

1. What is the sensing range of the Epro PR6424/010-131+CON031 sensor?

   • The sensing range is 16 mm.

2. What materials can be detected by this sensor?

   • The sensor works with conductive materials, such as metals.

3. What is the accuracy of the sensor?

   • The sensor has an accuracy of ±0.5% of full scale.

4. What is the operating temperature range of the sensor?

   • The sensor operates within the temperature range of -40°C to +85°C.

5. What is the power supply requirement for this sensor?

   • The sensor requires a 24 VDC power supply with a tolerance of ±10%.

6. How is the sensor mounted?

   • The sensor can be mounted using either a flange or bracket mounting type.

7. What types of output signals are available from the sensor?

   • The sensor provides analog output signals of 0-10V or 4-20mA.

8. Is the sensor resistant to harsh environmental conditions?

   • Yes, the sensor has an IP67 rating, making it dustproof and waterproof, suitable for harsh environments.

9. What is the typical weight of the sensor?

   • The sensor weighs 0.32 kg.

10. What type of connector does the sensor use?

    • The sensor uses an M12 connector for signal output.
