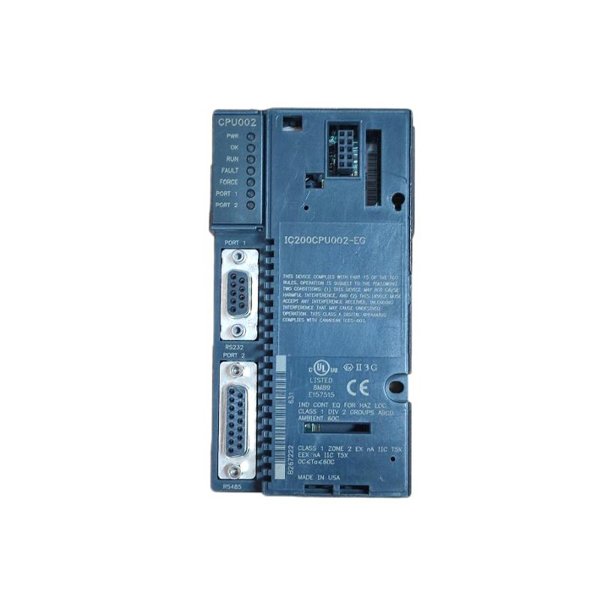

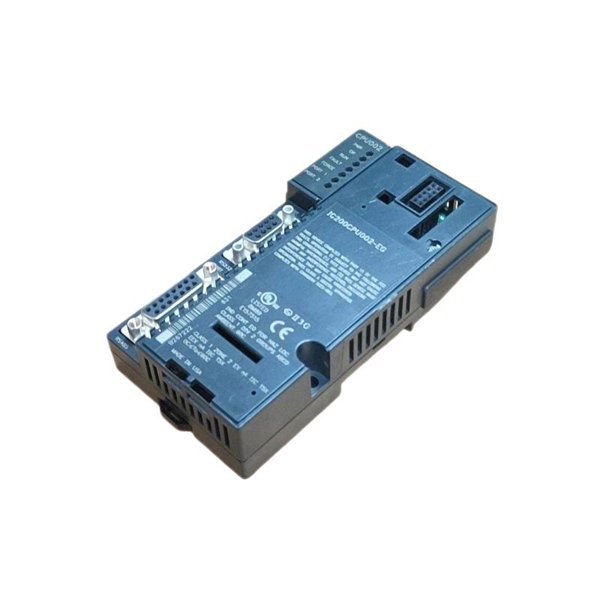

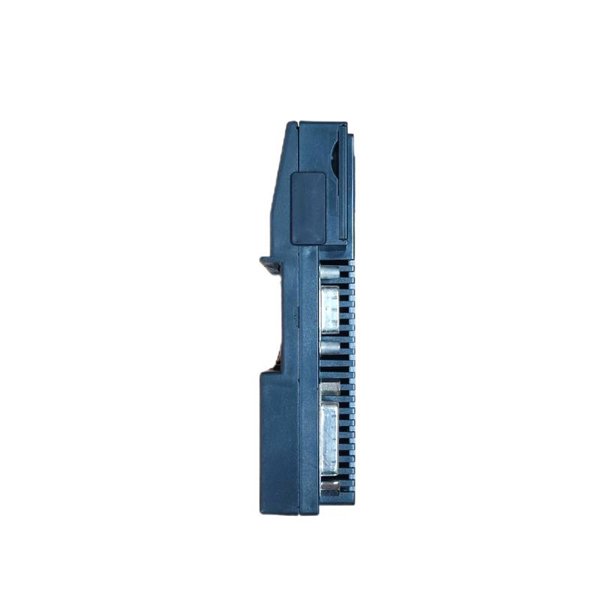

General Electric IC200CPU002-EG CPU Module

The GE IC200CPU002-EG is a compact and highly capable CPU module designed for use in GE Fanuc’s VersaMax™ PLC system. As the brain of the control system, this module is responsible for executing user programs, managing I/O operations, and facilitating communication between various parts of an industrial automation system.

This particular CPU module integrates control logic, communication capability, and diagnostics into a compact footprint. With onboard memory and multiple communication ports, the IC200CPU002-EG delivers strong performance for a variety of mid-range applications. It is especially suited to distributed control environments, small machine automation, and modular process control.

With a focus on reliability, flexibility, and ease of deployment, the IC200CPU002-EG CPU module provides a solid foundation for modern control systems where space, cost, and performance must be balanced carefully.

Product Parameters

Product Applications

The GE IC200CPU002-EG is a versatile controller designed to fit into a wide range of industrial control and automation scenarios. Its applications include:

1. Machine Automation: Controls packaging machines, conveyors, robotic arms, and automated assembly systems.

2. Process Control: Used in chemical, water treatment, and pharmaceutical industries for sequence and logic control.

3. Building Automation: Manages lighting, HVAC systems, and access control in smart buildings.

4. Distributed Control Systems (DCS): Operates as a local controller in larger DCS networks.

5. Energy Management Systems: Interfaces with power monitoring devices for facility-wide control.

6. OEM Control Panels: Perfect for integration into control cabinets produced by Original Equipment Manufacturers.

Its compatibility with GE’s VersaMax I/O modules also ensures smooth deployment in existing installations, making it a reliable upgrade or replacement option.

Product Advantages

1. Compact Design: Small footprint makes it ideal for space-constrained environments.

2. Integrated Communications: Built-in RS-232 and RS-485 ports support both local and networked control.

3. Battery Backup & RTC: Keeps critical operations and real-time data intact during power outages.

4. Quick Execution Speed: Processes ladder logic instructions quickly, suitable for time-sensitive control operations.

5. Versatile Protocol Support: SNP and Modbus RTU support simplifies integration into multi-vendor environments.

6. Easy Installation: DIN rail and panel mount compatibility streamlines installation in control cabinets.

7. Cost-Effective: Offers solid performance without the cost burden of larger PLC CPUs.

8. Modular Expansion: Seamlessly works with a variety of I/O modules in the VersaMax series.

9. Reliable in Harsh Environments: Withstands industrial temperature ranges and high humidity.

10. Diagnostic Capabilities: Built-in diagnostics aid in troubleshooting and maintenance.

FAQ (Frequently Asked Questions)

1. What is the program memory capacity of the IC200CPU002-EG?

   It provides 32 KB of program memory for user applications.

2. Does the module support real-time clock (RTC)?

   Yes, the CPU includes an integrated real-time clock with battery backup.

3. How many I/O points can this CPU control?

   It supports up to 256 discrete I/O points when paired with VersaMax I/O modules.

4. What programming software is used with the IC200CPU002-EG?

   It is programmed using GE Proficy Machine Edition (Logic Developer).

5. Can I use Modbus communication with this CPU?

   Yes, it supports Modbus RTU via the RS-485 port.

6. Is the module suitable for use in harsh environments?

   Yes, it operates from 0°C to 60°C and supports non-condensing humidity up to 95%.

7. How is the CPU powered?

   It receives 5V DC power via the VersaMax backplane.

8. Can I update the firmware of this CPU module?

   Firmware updates are possible using GE configuration tools, depending on the version.

9. Does this model support Ethernet communication?

   No, this specific model supports only serial communication (RS-232 and RS-485). For Ethernet, other VersaMax CPUs are available.

10. What is the installation method for this CPU?

    It can be DIN rail mounted or panel mounted for flexible installation.
