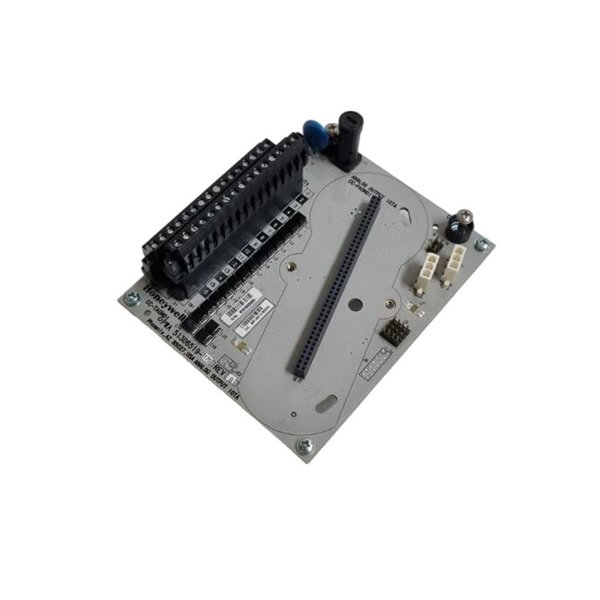

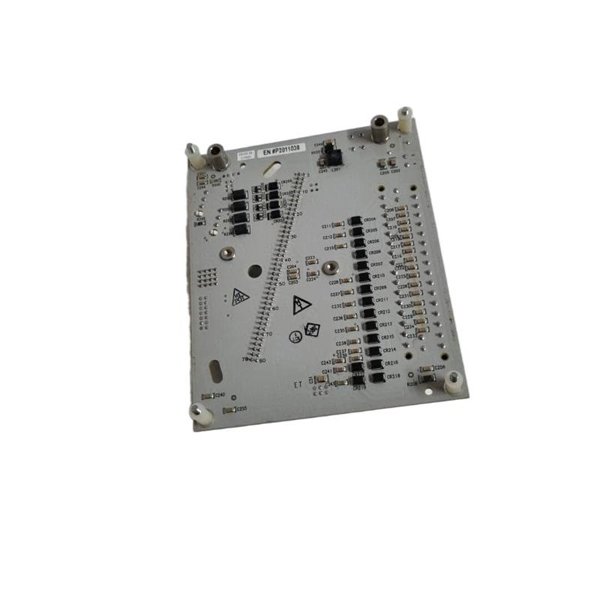

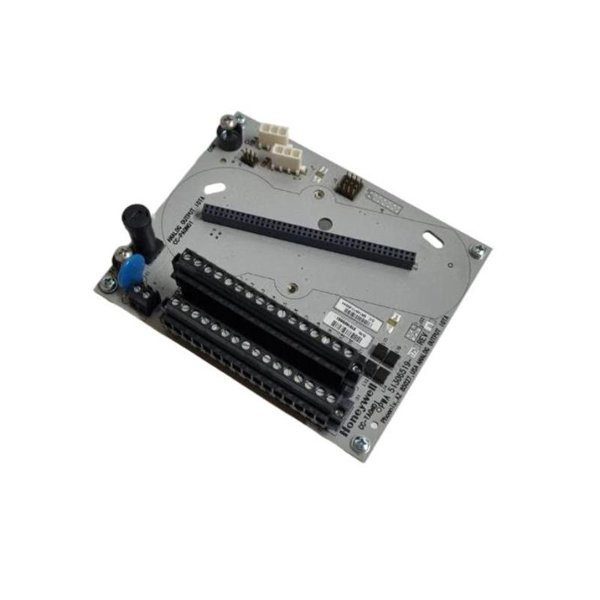

Honeywell DC-TAON01 Analog output Modules

As a key component in Honeywell’s control architecture, the DC-TAON01 is used to convert digital control instructions into analog output signals, typically 4–20 mA, that control valves, drives, and other field devices. This module is known for its exceptional stability, robust construction, and compatibility with a wide range of Honeywell control systems, ensuring long-term reliability in critical applications.

Product Advantages

• High Accuracy Output: The DC-TAON01 offers high-precision analog output, minimizing signal drift and maximizing system stability.

• Durable and Reliable: Built to operate in harsh industrial environments, ensuring consistent performance over extended lifespans.

• System Compatibility: Seamlessly integrates with Honeywell TDC 3000 and Experion PKS systems.

• Ease of Maintenance: Hot-swappable and supports easy diagnostics through built-in indicators.

• Multi-channel Support: Supports multiple analog output channels for efficient process control.

• Fail-Safe Protection: Provides built-in protection features for over-current, short-circuit, and signal interruptions.

• Industry-Proven: Deployed in thousands of process plants globally, from refining to chemical and power generation sectors.

Technical Specifications

Product Applications

• Oil & Gas Processing Facilities – Used to control valve actuators, dampers, and motor-driven equipment.

• Petrochemical Plants – Regulates chemical process outputs such as flow, pressure, and level.

• Power Generation – Applied in boiler control systems and turbine output regulation.

• Water & Wastewater Treatment – Controls dosing pumps, valves, and flow metering outputs.

• Pharmaceutical Manufacturing – Ensures precise analog control for heating, ventilation, and material dosing.

• Food and Beverage – Manages output for pasteurization, fermentation, and mixing equipment.

Product Features & Advantages (Detailed)

1. Modular Design: Supports easy system scalability and fast module replacement.

2. Advanced Diagnostics: LED indicators assist operators in identifying faults quickly.

3. Stable Output: Advanced signal processing ensures smooth analog signals without sudden jumps.

4. Redundancy Support: Compatible with redundant configurations in critical systems.

5. Electromagnetic Interference Protection: Designed to withstand industrial EMI/RFI environments.

6. Compliance: Meets industry standards for safety, performance, and environmental tolerance.

Frequently Asked Questions (FAQ)

Q1: What control systems is the DC-TAON01 compatible with?

A1: It is fully compatible with Honeywell’s TDC 3000 and Experion PKS DCS systems.

Q2: How many analog output channels does it support?

A2: The module provides 8 individually isolated analog output channels.

Q3: What is the signal type and range of each output?

A3: Each channel outputs a 4–20 mA DC signal.

Q4: Can this module be replaced while the system is online?

A4: Yes, the DC-TAON01 is hot-swappable when installed in a supported chassis.

Q5: What is the accuracy of the analog output?

A5: The output accuracy is ±0.1% of the full-scale range.

Q6: Is there built-in protection against overcurrent or short circuits?

A6: Yes, the module has built-in overcurrent and short-circuit protection.

Q7: How is the module mounted?

A7: It can be mounted using standard DIN rail or within a designated system rack.

Q8: Is the module isolated channel-to-channel?

A8: Yes, each channel is isolated from others and from the system ground.

Q9: What environments can this module operate in?

A9: It operates in environments from 0°C to +60°C with up to 95% humidity (non-condensing).

Q10: What maintenance practices are recommended?

A10: Periodic diagnostics and firmware updates via system interface ensure optimal performance. Physical cleaning should be done only when powered off.
