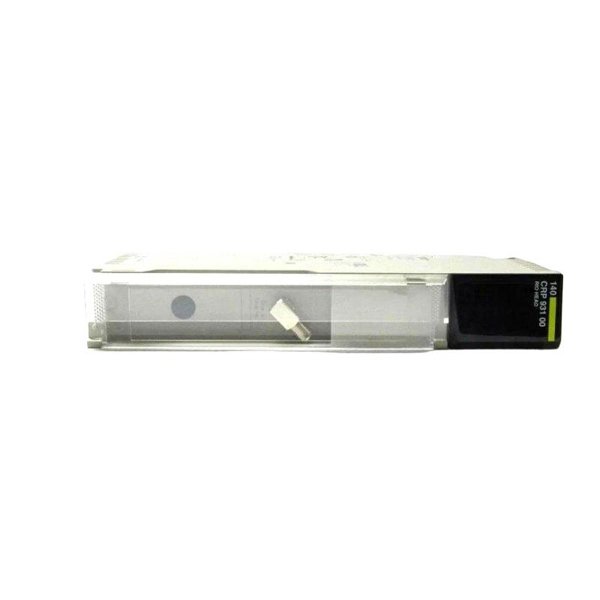

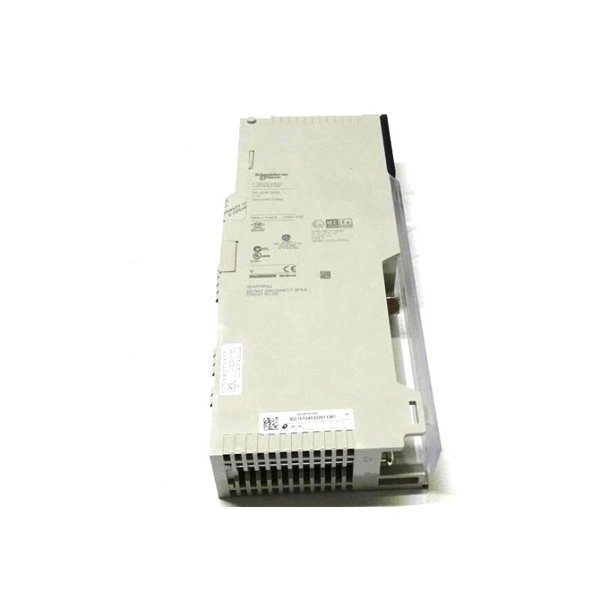

Schneider 140CRP93100C RIO Head end Adaptor Module
Manufacturer:Schneider
Product Number:140CRP93100C
Product Type:RIO Head end Adaptor Module
Origin:France
Dimensions:45 × 170 × 310 mm
Weight:0.45 kg
Views:73
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider 140CRP93100C is a Remote I/O (RIO) head-end adaptor module designed for Modicon Quantum automation platforms. It enables high-speed communication between the Quantum controller and remote I/O drops using a coaxial cable network. This module provides a reliable solution for distributing control and I/O over large distances in industrial environments.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | RIO Head End Adaptor Module |
| Series | Modicon Quantum |
| Communication Port | RIO coaxial connection |
| Bus Interface | Quantum backplane |
| Transmission Speed | 1.54 Mbps (RIO network) |
| Max Number of Drops | Up to 31 drops |
| Redundancy Support | Yes |
| Hot Standby Capability | Supported |
| Status Indicators | LED indicators for diagnostics |
| Power Supply | 5 V DC from backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (W×H×D) | 45 × 170 × 310 mm |
| Weight | 0.45 kg |
Applications
-
Distributed I/O systems in large-scale automation
-
Remote I/O control in oil and gas plants
-
Water and wastewater treatment systems
-
Manufacturing and material handling systems
-
Power generation and utilities
Product Advantages
-
Reliable and high-speed RIO network support
-
Simplified cabling using coaxial interface
-
Compatible with hot standby systems for high availability
-
Up to 31 remote drops supported for scalability
-
Easy integration into Quantum PLC platforms
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 140CRP93100C module?
A1: It acts as a head-end adaptor, enabling communication between the Quantum PLC and RIO drops.
Q2: Can this module be used in redundant systems?
A2: Yes, it supports hot standby and redundancy features.
Q3: What kind of cable is used for communication?
A3: It uses a 75-ohm coaxial cable for RIO communication.
Q4: How many I/O drops are supported?
A4: Up to 31 drops per RIO network.
Q5: Is it compatible with other Quantum series modules?
A5: Yes, it is fully compatible with Modicon Quantum systems.
Q6: Does the module require a separate power supply?
A6: No, it receives power from the Quantum backplane.
Q7: Are there LED indicators for diagnostics?
A7: Yes, the module has status LEDs for network and error status.
Q8: Can the 140CRP93100C be hot-swapped?
A8: No, it must be powered down before replacement.
Q9: What is the transmission speed of the RIO network?
A9: It operates at 1.54 Mbps.
Q10: What environments is this module suited for?
A10: It is suitable for industrial environments including oil & gas, utilities, and manufacturing.
