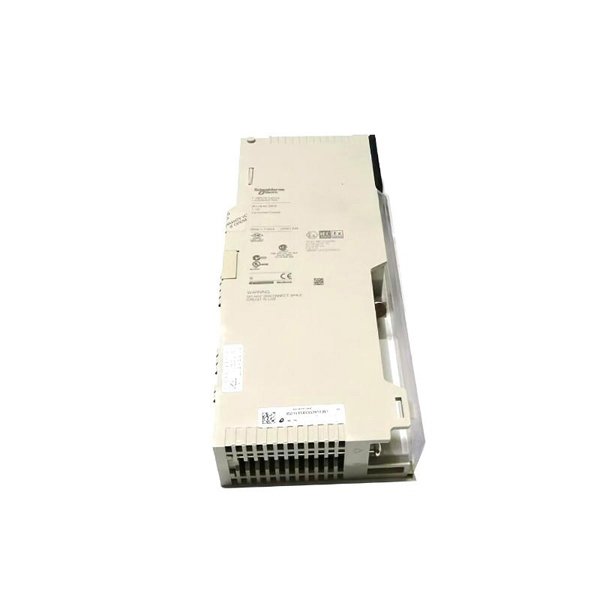

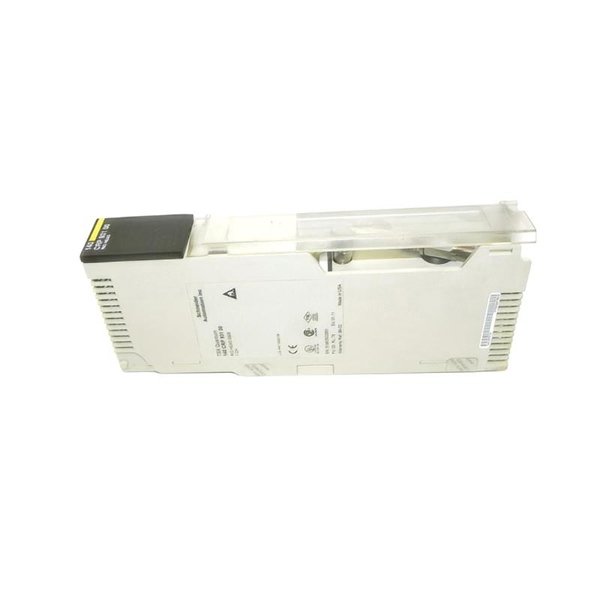

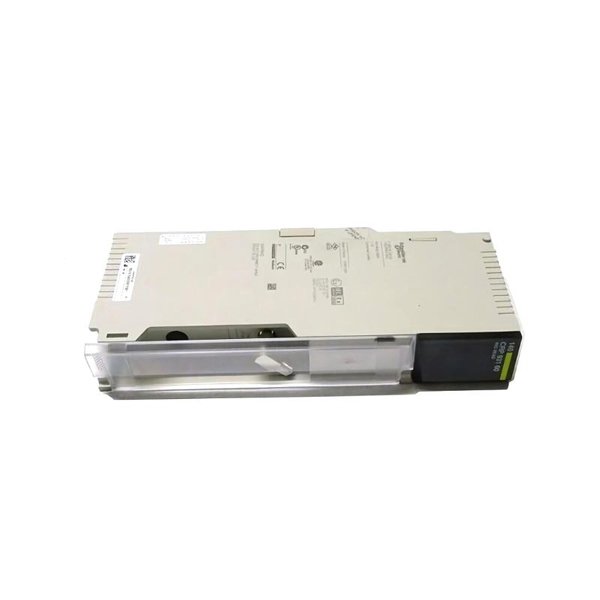

The Schneider 140CRP93100 RIO Head End Adaptor Module is an essential component designed for integration within Schneider Electric’s Modicon programmable logic controller (PLC) systems. It provides seamless communication between the Remote I/O (RIO) system and the Modicon PLC by enabling the data transfer between field devices and the PLC. This head end adaptor module plays a critical role in industrial automation systems by facilitating high-speed, reliable connections and ensuring optimal performance in a variety of applications, including manufacturing, process control, and energy management.

The 140CRP93100 module acts as a gateway for remote I/O devices, allowing them to connect with the central control system, making it an integral part of complex distributed control systems. By supporting multiple I/O devices, it enables flexibility and scalability, ensuring that control systems can expand and adapt to future needs without compromising on performance.

Schneider Electric’s 140CRP93100 RIO Head End Adaptor Module offers exceptional reliability, easy configuration, and the ability to handle complex data sets, making it the ideal choice for industries looking for robust automation solutions.

Product Specifications

Below is a detailed table outlining the specifications of the Schneider 140CRP93100 RIO Head End Adaptor Module:

Product Applications

The Schneider 140CRP93100 RIO Head End Adaptor Module is designed to be used in various industries, supporting a broad range of applications, including:

• Industrial Automation: Facilitates seamless integration of remote I/O devices in automated systems, improving process control and data management.

• Manufacturing Systems: Connects various production machines and devices to the central PLC, enabling real-time control and monitoring of factory operations.

• Energy Management: The module ensures that remote energy meters, sensors, and actuators can be connected and integrated with a centralized control system to optimize energy use.

• Water Treatment Plants: Used to connect I/O devices such as pumps, valves, and level sensors for efficient water management and treatment processes.

• Process Control: Enables precise control of sensors, actuators, and other devices in critical processes such as chemical production, refining, and material handling.

• Building Automation: Connects remote control devices such as HVAC units, lighting systems, and security equipment, providing centralized monitoring and control.

Product Advantages

The 140CRP93100 RIO Head End Adaptor Module offers numerous advantages to industrial users, making it a versatile choice for automation systems:

1. High-Speed Data Transfer: Supports high-speed communication, ensuring minimal latency and efficient real-time data exchange between the PLC and remote I/O devices.

2. Flexible Communication Options: Compatible with both Modbus RTU and Modbus TCP, making it highly adaptable to various systems and network configurations.

3. Compact Design: Its compact size allows for easy installation in confined spaces, facilitating integration in complex control systems.

4. Reliability and Durability: Designed to operate in harsh environments, this module ensures robust and continuous performance with excellent resistance to temperature fluctuations and vibrations.

5. User-Friendly Setup: The module is easy to configure, minimizing setup time and reducing operational complexity for technicians and engineers.

6. Enhanced Scalability: The RIO communication feature allows for easy expansion of the system by connecting additional remote I/O devices, making it a future-proof solution.

7. LED Status Indicators: Equipped with clear LED indicators for monitoring power, communication, and operational status, allowing for quick diagnostics.

8. Powerful Integration: Seamlessly integrates with Schneider Electric’s Modicon PLCs, providing a seamless communication pathway for distributed I/O.

9. Energy Efficiency: The module operates efficiently, consuming minimal power, which is ideal for sustainable industrial systems.

10. Wide Operating Temperature Range: Suitable for both standard and harsh industrial environments, with a wide operating temperature range of -20°C to 60°C.

FAQ

1. What is the main function of the Schneider 140CRP93100 RIO Head End Adaptor Module?

   • The primary function is to facilitate communication between remote I/O devices and the central Modicon PLC system.

2. What communication protocols are supported by the module?

   • The module supports Modbus RTU and Modbus TCP communication protocols.

3. How many I/O points can the module handle?

   • The module can handle up to 16 I/O points.

4. What is the power supply requirement for the module?

   • The module operates on a 24 VDC power supply.

5. What are the physical dimensions of the module?

   • The module’s dimensions are 43 × 163 × 314 mm.

6. What is the weight of the Schneider 140CRP93100 module?

   • The module weighs 0.5 kg.

7. What is the operating temperature range for the module?

   • The module operates within a temperature range of -20°C to 60°C.

8. Can this module be mounted on a DIN rail?

   • Yes, the module is designed for DIN rail mounting.

9. What type of status indicators does the module have?

   • The module is equipped with LED status indicators for power, communication, and operational status.

10. What are the key advantages of using the 140CRP93100 module?

    • The module offers high-speed communication, flexibility, compact design, reliability, and easy scalability for industrial automation systems.
