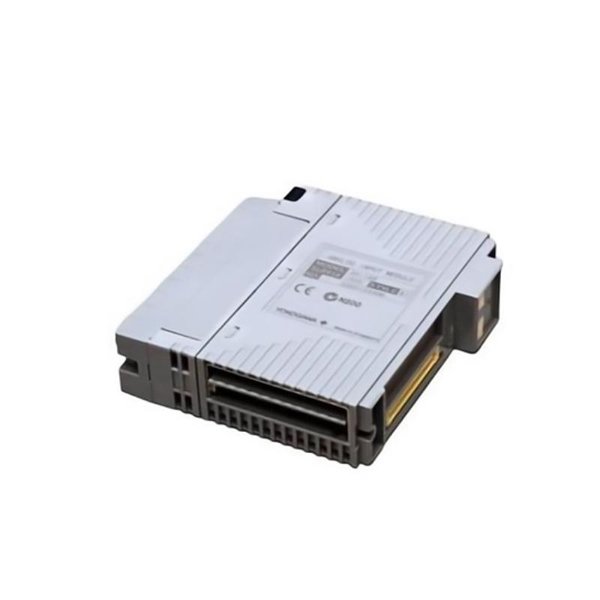

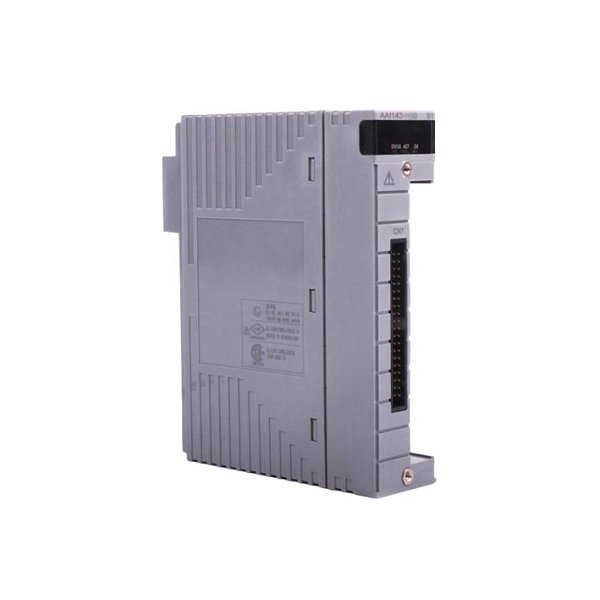

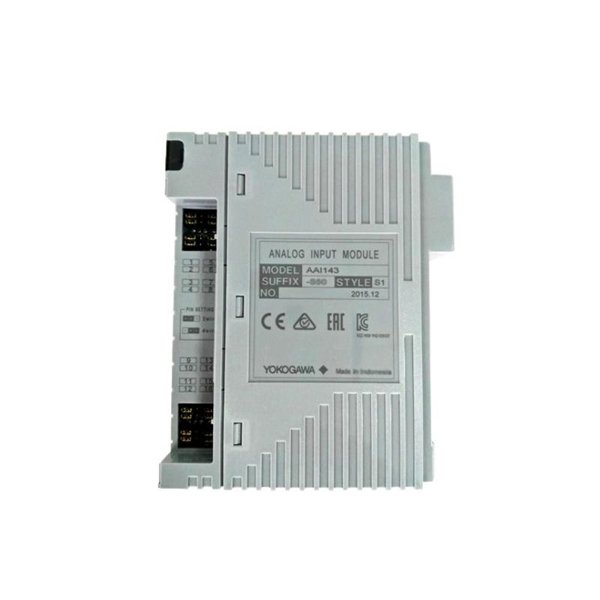

Yokogawa AAI143-S00/A4S00 Analog Input Module

The Yokogawa AAI143-S00/A4S00 Analog Input Module is part of Yokogawa’s advanced automation solutions, offering high-performance, reliability, and flexibility for a variety of industrial applications. Designed to provide accurate signal conversion for various types of analog sensors, the AAI143-S00/A4S00 is compatible with Yokogawa’s Centum CS 3000 and ProSafe-RS systems, making it a crucial component for any industrial control system.

This module supports multiple types of input signals such as 4-20mA, 0-10V, thermocouples, and RTDs. It is ideal for applications that require accurate data acquisition from field devices like temperature sensors, pressure sensors, flowmeters, and other critical instruments in industrial environments. The AAI143-S00/A4S00 module converts these analog signals into digital data, which is then processed and monitored by a control system.

This module is engineered for ease of integration and maintenance, with features such as clear status indicators, flexible mounting options, and a compact design suitable for industrial settings.

Product Specifications

The Yokogawa AAI143-S00/A4S00 Analog Input Module offers a wide range of specifications designed to meet the needs of demanding industrial environments. Below are the key specifications:

Product Applications

The Yokogawa AAI143-S00/A4S00 Analog Input Module is designed to be versatile and applicable in a variety of industrial scenarios. Its wide range of supported input signals makes it suitable for numerous applications, including:

• Process Control Systems: This module is perfect for industries such as chemicals, oil & gas, and pharmaceuticals, where precise monitoring of process variables (temperature, pressure, flow) is essential for ensuring safety and efficiency.

• Manufacturing Automation: In manufacturing environments, the module can be used for monitoring production equipment, controlling machine performance, and optimizing manufacturing processes.

• Energy Management: The AAI143-S00/A4S00 module is used to interface with sensors in power plants and energy systems, providing accurate readings of energy flow, temperature, and pressure.

• Water Treatment Plants: The module is ideal for use in water treatment facilities, where it connects to various sensors that monitor water quality, pH levels, and turbidity.

• Building Automation: The AAI143-S00/A4S00 module is used in building automation systems for monitoring HVAC systems, lighting, and other critical infrastructure components.

• Safety and Environmental Monitoring: The module plays a critical role in systems designed for environmental monitoring and safety, particularly in hazardous environments.

Product Advantages

The Yokogawa AAI143-S00/A4S00 Analog Input Module offers several distinct advantages that make it ideal for demanding industrial applications:

• High Precision: The module provides 16-bit resolution for each input channel, ensuring precise and reliable signal conversion, which is crucial for applications requiring high accuracy.

• Versatile Input Support: With support for 4-20mA, 0-10V, thermocouples, and RTDs, the module is highly flexible and can be used with a wide range of sensors and field devices.

• Compact and Space-Saving Design: Measuring only 107.5 × 32.8 × 130 mm, the module can be easily integrated into industrial control panels, optimizing the use of available space.

• Quick Signal Conversion: With a conversion time of just 100ms per channel, the AAI143-S00/A4S00 ensures fast and efficient signal processing, making it ideal for time-sensitive applications.

• Ease of Integration: The module is designed to work seamlessly with Yokogawa’s Centum CS 3000 and ProSafe-RS systems, allowing for straightforward integration into existing systems.

• Durable and Reliable: Built to endure harsh industrial conditions, the AAI143-S00/A4S00 module is capable of withstanding a wide range of environmental conditions, from extreme temperatures to mechanical vibrations.

• LED Status Indicators: The built-in LED indicators provide real-time feedback on the status of each input channel, simplifying troubleshooting and maintenance tasks.

• Low Power Consumption: The module operates on a 24V DC power supply, offering low energy consumption, which is beneficial for large-scale installations.

FAQ (Frequently Asked Questions)

1. What types of analog signals does the Yokogawa AAI143-S00/A4S00 module support?

   • The module supports 4-20mA, 0-10V, thermocouple, and RTD signals.

2. How many input channels does the AAI143-S00/A4S00 have?

   • The module has 4 independent analog input channels.

3. What is the resolution of the AAI143-S00/A4S00 module?

   • The module offers 16-bit resolution for each input channel.

4. What is the input impedance for the 4-20mA input signal?

   • The input impedance for the 4-20mA signal is 250Ω.

5. What is the signal conversion time for the AAI143-S00/A4S00?

   • The signal conversion time is 100ms per channel.

6. What is the operating temperature range of the AAI143-S00/A4S00 module?

   • The operating temperature range is -10°C to +60°C.

7. Can the AAI143-S00/A4S00 module be used outdoors?

   • While the module can withstand a wide range of temperatures, it is primarily intended for indoor use and should be protected from direct exposure to harsh environmental conditions.

8. How is the module mounted?

   • The module is designed to be mounted on a DIN rail, making installation quick and easy.

9. Is the AAI143-S00/A4S00 module compatible with other Yokogawa products?

   • Yes, it is designed to work seamlessly with Yokogawa’s Centum CS 3000 and ProSafe-RS systems.

10. What type of feedback does the module provide for each channel?

    • The module features LED indicators for each input channel, offering real-time status updates and facilitating quick troubleshooting.
