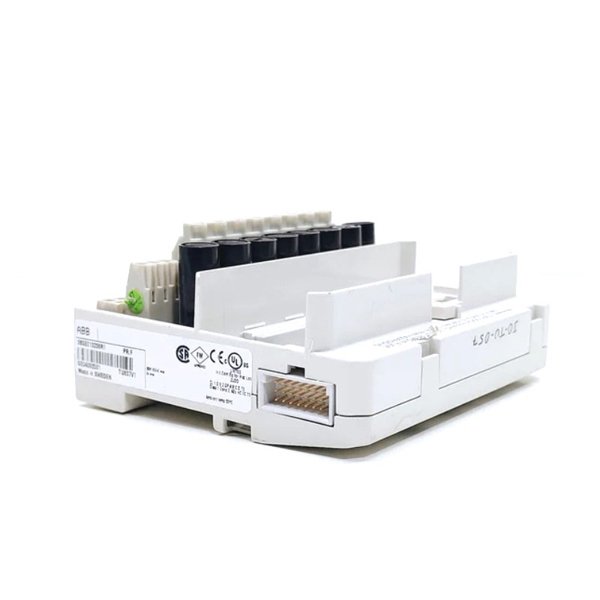

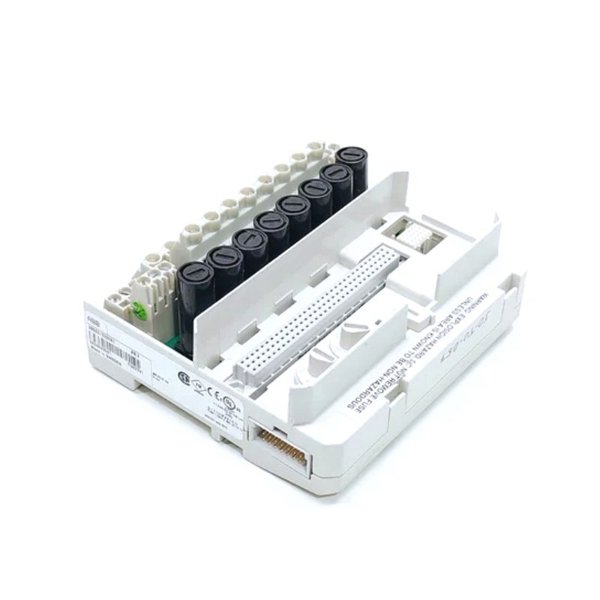

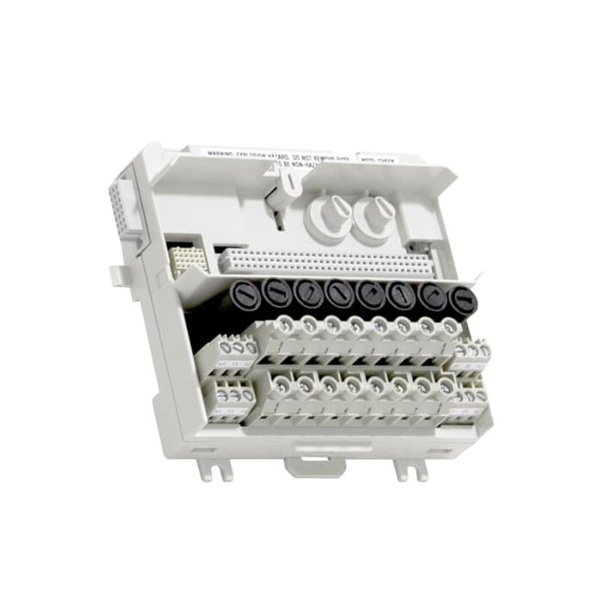

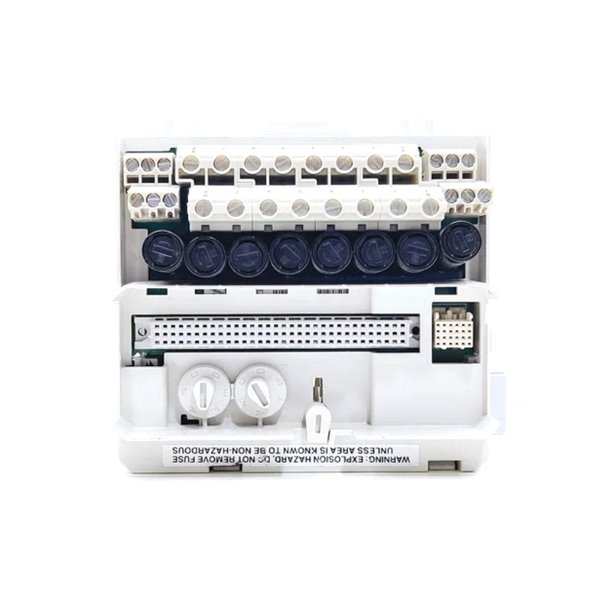

ABB TU837V1 3BSE013238R1 Module Termination Unit

The ABB TU837V1 3BSE013238R1 is a high-performance Module Termination Unit (MTU) designed for seamless integration with ABB S800 I/O systems, particularly in applications requiring redundant field power and optimized space utilization. This unit facilitates secure and efficient field signal connections while ensuring electrical and mechanical interface compatibility with I/O modules.

Designed for mounting on DIN rails, the TU837V1 enables fast installation and maintenance, contributing to system reliability and flexibility in process automation environments such as power plants, oil & gas facilities, and large-scale manufacturing.

Key Features

• Supports redundant power supply for enhanced availability

• DIN rail mountable for fast and standardized installation

• Optimized for S800 I/O modules

• Compact design for space-saving panel layouts

• Pluggable screw terminals for efficient field wiring

• Built-in status LED indicators for operational monitoring

• Robust design for harsh industrial environments

Technical Specifications

Industry Applications

• Power Generation – For high-availability turbine control and monitoring systems

• Oil & Gas – Facilitates secure I/O wiring in hazardous and critical zones

• Chemical Processing – Ensures robust signal integrity in harsh conditions

• Pharmaceuticals – Used in validated, tightly controlled automation systems

• Pulp & Paper – Reliable for decentralized control and remote I/O

• Metals & Mining – Withstands rugged environmental and electrical demands

Advantages

• Redundancy Ready: Dual power input paths reduce the risk of single-point failure

• Efficient Cabling: Simplifies field wiring with structured terminal layout

• DIN Rail Installation: Enables modular and time-saving panel integration

• Integrated Diagnostics: LED indicators allow immediate system status visibility

• Wide Compatibility: Seamlessly connects with all S800 I/O modules

• Compact Design: Ideal for installations with limited space

Frequently Asked Questions (FAQ)

1. What is the TU837V1 used for?

   It serves as the termination point for field signals and distributes power to S800 I/O modules.

2. Is it compatible with AC 800M controllers?

   Yes, it integrates with AC 800M via the S800 I/O system.

3. Does the TU837V1 support redundant power?

   Yes, it supports redundant field power connections.

4. How is the field wiring connected?

   Via pluggable screw terminals, ensuring secure and organized connections.

5. Does it feature diagnostic functions?

   Yes, it includes LED indicators for status diagnostics.

6. Can it be DIN-rail mounted?

   Yes, it’s designed for standard DIN rail mounting.

7. Is it suitable for hazardous environments?

   Yes, it’s built to perform reliably in demanding industrial conditions.

8. What is the difference between TU836V1 and TU837V1?

   The TU837V1 offers enhanced features such as support for redundant field power.

9. Does it include an internal backplane?

   Yes, a passive internal bus connects directly to S800 modules.

10. What certifications does it hold?

    It is CE marked and compliant with UL, CSA, and RoHS standards.
