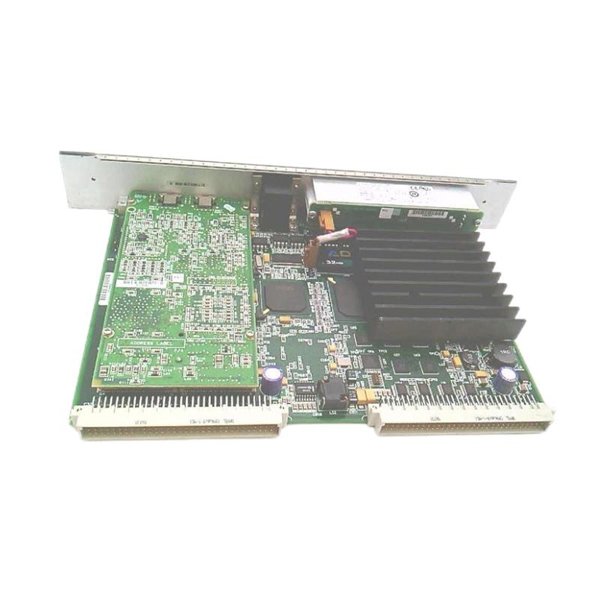

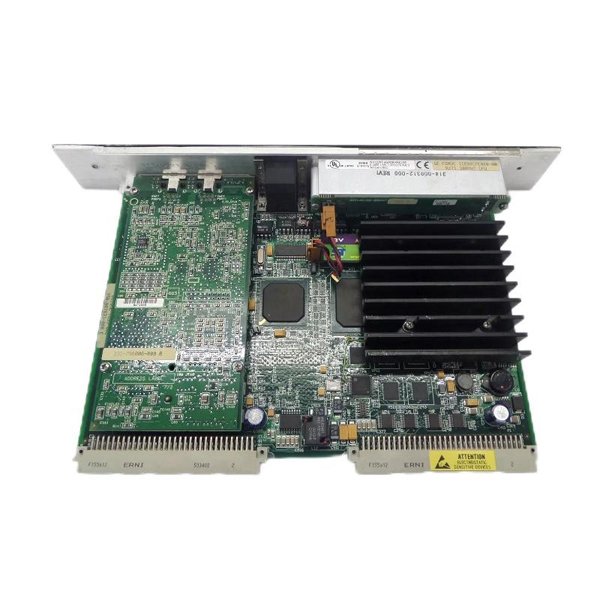

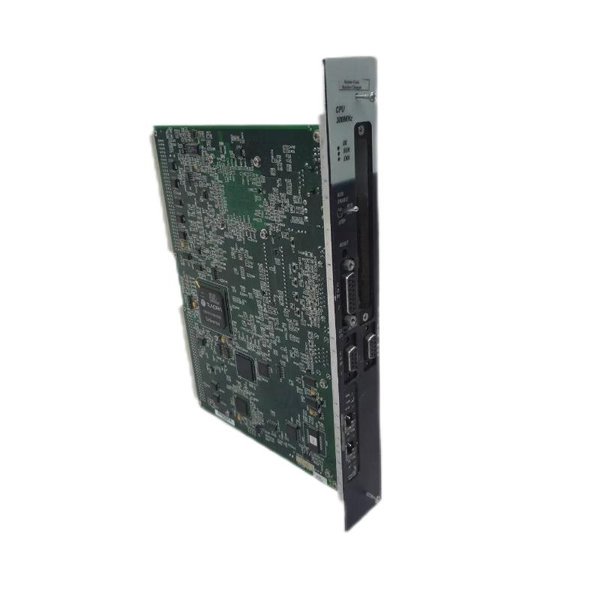

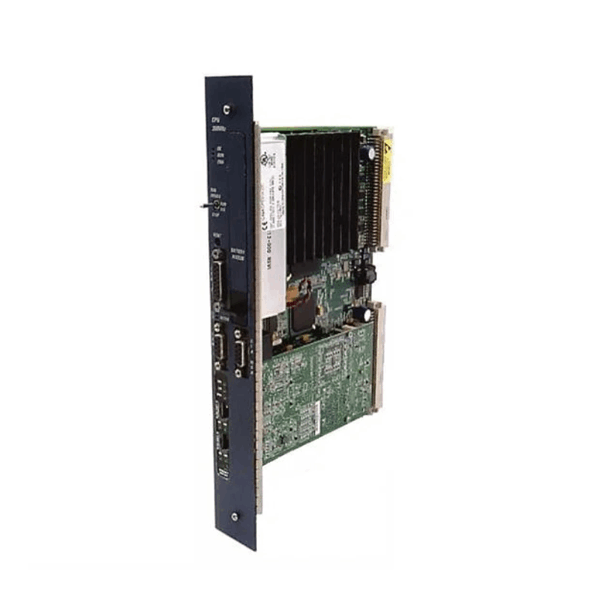

General Electric IC698CPE010 CPU Module

The GE IC698CPE010 is a high-performance Programmable Logic Controller (PLC) CPU module from GE Fanuc’s RX7i series, designed for industrial automation and control applications. It serves as the central processing unit for the PACSystems RX7i platform, offering robust processing power, extensive memory, and advanced communication capabilities. This module is widely used in complex automation systems, including manufacturing, energy, and process control industries.

Product Specifications

Product Applications

The IC698CPE010 is suitable for a wide range of industrial automation applications, including:

• Manufacturing Automation – Controls assembly lines, robotic systems, and CNC machines.

• Energy Management – Used in power plants, substations, and renewable energy systems.

• Oil & Gas – Manages pipeline control, refinery automation, and safety systems.

• Water/Wastewater Treatment – Controls pumps, valves, and filtration systems.

• Transportation Systems – Deployed in railway signaling and traffic control.

Product Advantages

1. High-Speed Processing – Intel® Pentium®-class CPU ensures fast execution of complex logic.

2. Large Memory Capacity – 40 MB user memory supports extensive program storage.

3. Scalability – Compatible with a wide range of I/O modules for system expansion.

4. Robust Communication – Built-in Ethernet and serial ports enable seamless integration with SCADA and HMI systems.

5. Reliability – Designed for harsh industrial environments with high temperature and vibration resistance.

6. Easy Migration – Supports legacy GE Fanuc systems, reducing upgrade costs.

Frequently Asked Questions (FAQ)

1. What is the difference between IC698CPE010 and IC698CPE020?

   • The IC698CPE020 has double the memory (80 MB) and enhanced processing speed compared to the CPE010.

2. Can the IC698CPE010 support redundant systems?

   • Yes, it can be configured in a hot-standby redundancy setup with another RX7i CPU.

3. What programming software is used for this CPU?

   • Proficy Machine Edition (PME) is the official GE software for programming and configuration.

4. Is the IC698CPE010 compatible with older GE Series 90-30 I/O modules?

   • No, it only supports RX7i-series I/O modules.

5. What is the typical lifespan of this CPU module?

   • Under normal conditions, it can operate reliably for more than 5 years.

6. Does it support real-time clock (RTC) functionality?

   • Yes, it includes an integrated battery-backed real-time clock.

7. Can I expand the memory of the IC698CPE010?

   • No, the memory is fixed and cannot be upgraded.

8. What is the maximum number of I/O points supported?

   • Up to 512K digital and 128K analog I/O points (depending on configuration).

9. Is this module suitable for safety-critical applications?

   • It is not SIL-certified; for safety systems, consider RX3i Safety CPUs.

10. How do I troubleshoot communication failures?

    • Check Ethernet/IP settings, verify cabling, and ensure proper firmware version in PME.
