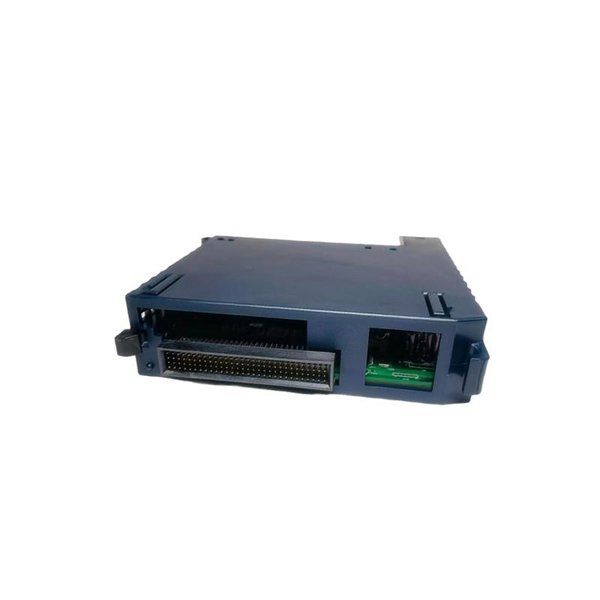

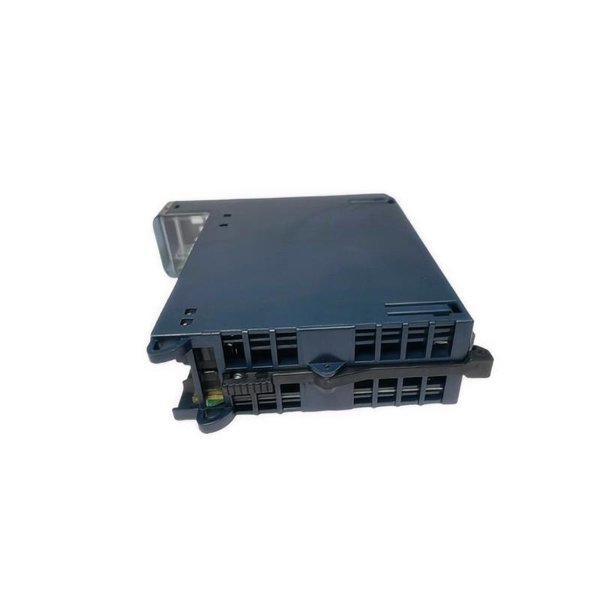

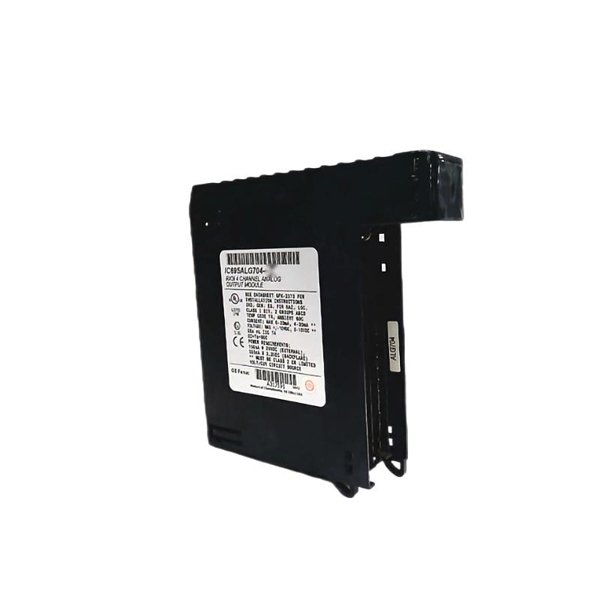

General Electric IC695ALG704 RX3i Analog Output Module

The GE IC695ALG704 is a high-performance 4-channel Analog Output Module specifically engineered for use within the PACSystems RX3i control platform. Designed for industrial-grade applications, this module delivers precise and configurable analog output signals in both current and voltage formats, supporting a wide array of control and monitoring devices such as actuators, positioning drives, and control valves.

Product Specifications

Product Applications

• Industrial Automation: Controls actuators, valves, and drives in manufacturing processes.

• Process Control Systems: Provides precise analog signals for monitoring and controlling process variables.

• Energy Sector: Used in power generation and distribution systems for accurate control of electrical parameters.

• Building Automation: Manages HVAC systems and lighting controls through analog outputs.

• Water and Wastewater Treatment: Controls pumps, valves, and chemical dosing systems.

Product Advantages

• High Precision: Offers high-resolution outputs for accurate control.

• Versatility: Supports both voltage and current outputs, accommodating various devices.

• Fast Response: 8 ms update rate ensures timely signal delivery.

• Robust Protection: Built-in overvoltage and overcurrent protection enhances reliability.

• Easy Integration: Seamlessly integrates with PACSystems RX3i series.

• Compact Design: Space-saving form factor suitable for various installations.

Frequently Asked Questions (FAQ)

1. What output signal ranges does the IC695ALG704 support?

   It supports voltage outputs of ±10V and 0–10V, and current outputs of 0–20mA and 4–20mA.

2. How many output channels are available on this module?

   The module provides 4 non-isolated analog output channels.

3. What is the resolution of the analog outputs?

   The resolution varies: ±10V at 15.9 bits, 0–10V at 14.9 bits, 0–20mA at 15.9 bits, and 4–20mA at 15.6 bits.

4. What is the update rate for the outputs?

   The module updates all outputs approximately every 8 milliseconds.

5. What are the power requirements for the module?

   It requires 3.3V at 375 mA and 24V at 160 mA.

6. Does the module have built-in protection features?

   Yes, it includes overvoltage protection of -30V for 60 seconds and +30V for one hour.

7. What is the calibrated accuracy of the outputs?

   The outputs have a calibrated accuracy of ±0.15% of full scale at 25°C and ±0.30% at 60°C.

8. What is the operating temperature range?

   The module operates between 0°C and +60°C.

9. What are the dimensions and weight of the module?

   It measures 34 x 140 x 145 mm and weighs 0.227 kg.

10. Is the module compatible with other PACSystems RX3i components?

    Yes, it is designed to integrate seamlessly with the PACSystems RX3i series.
