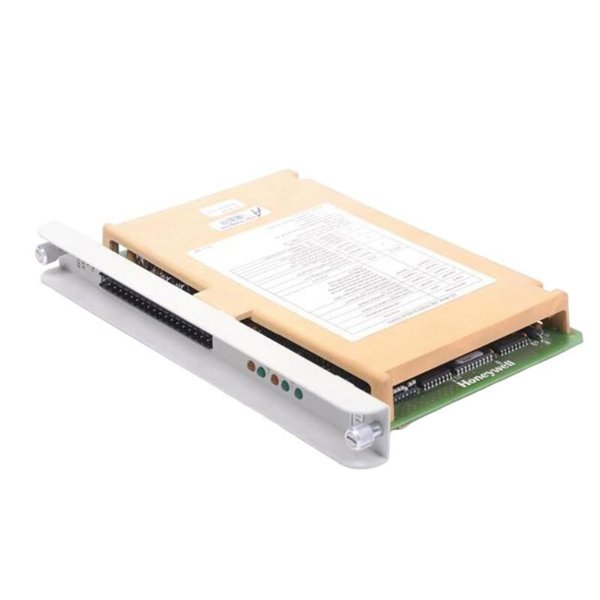

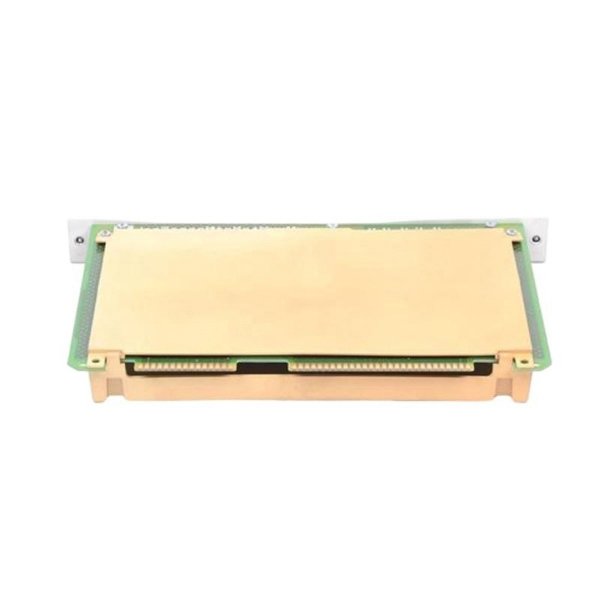

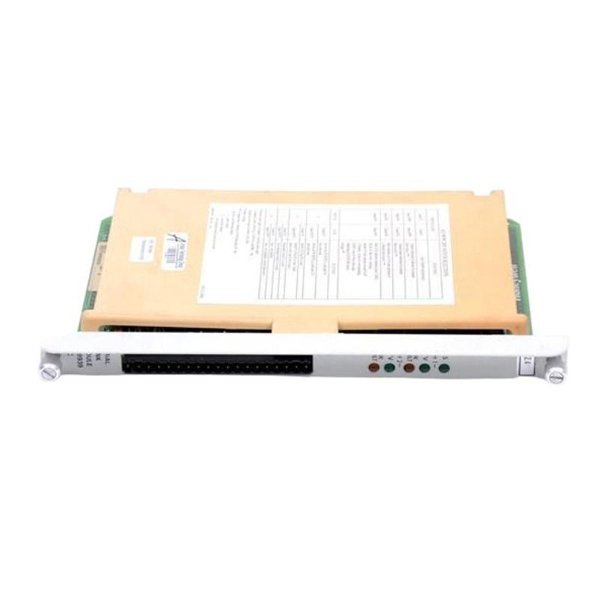

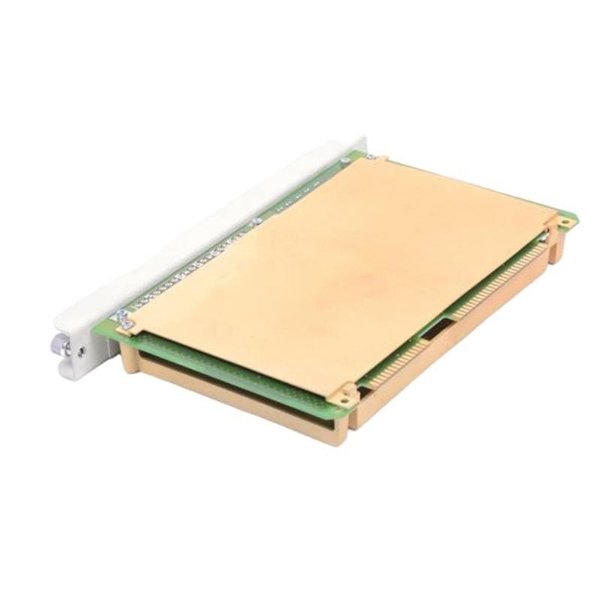

Honeywell 621-9939 Serial Link Module

The Honeywell 621-9939 Serial Link Module is a key component in Honeywell’s Distributed Control System (DCS) architecture, including systems like TotalPlant Solution (TPS) and PlantScape. It provides a reliable and robust interface for serial communication between Honeywell DCS systems and field devices, enabling efficient data transfer for process control and monitoring.

Designed for industrial use, the 621-9939 Serial Link Module supports various serial communication protocols, making it suitable for a broad range of applications that require high-speed data exchange, such as controlling sensors, actuators, and other remote devices in real-time.

Key Features

• Multiple Serial Communication Protocols: Supports RS-232, RS-485, and other serial standards

• Real-time Data Transfer for efficient communication with field devices

• Point-to-Point and Multi-Drop Communication support

• Seamless Integration with Honeywell DCS systems like TPS and PlantScape

• Hot-swappable Design: Facilitates easy maintenance without shutting down the system

• LED Indicators for monitoring communication health and operational status

• Compact and Rugged: Designed to withstand harsh industrial environments

• Reliable Data Integrity with error-checking mechanisms

• Versatile Configuration: Can be configured for single or multiple devices

Technical Specifications

Industry Applications

• Oil & Gas – Communication with remote field devices such as pressure transmitters and flow meters

• Power Generation – Integration with turbine and generator control systems

• Chemical & Petrochemical – Monitoring and control of field instruments in chemical plants

• Water & Wastewater – Data exchange for pumps, filtration systems, and chemical dosing equipment

• Manufacturing – Machine control and process monitoring in factory automation systems

• Pharmaceuticals – Remote control and monitoring of sensitive production equipment

Advantages

• Multiple Communication Protocols: Supports a wide range of serial communication standards (RS-232, RS-485) for maximum compatibility

• Flexible Communication Configurations: Can be configured for point-to-point or multi-drop communication, depending on system requirements

• Industrial Durability: Built to withstand extreme temperatures, humidity, and industrial environments

• Real-time Operation: Ensures efficient and immediate data transfer for process control applications

• Hot-swappable: Allows for quick replacement without needing to shut down the system

• Error-Checking: Includes mechanisms to ensure data integrity during transfer

• Compact and Easy to Install: Designed to fit into standard Honeywell I/O racks, saving space and simplifying setup

• LED Diagnostic Indicators: Provides real-time feedback on communication health for easy troubleshooting

Frequently Asked Questions (FAQ)

1. What serial protocols does the 621-9939 support?

   It supports RS-232, RS-485, and other serial communication standards.

2. Can the module be used in real-time applications?

   Yes, it supports high-speed data transfer for real-time process control.

3. How many serial ports are included in the 621-9939?

   It has 2 x RS-232 or RS-485 communication ports.

4. Can the module be hot-swapped?

   Yes, it is designed to be hot-swappable, allowing for easy replacement without system downtime.

5. What is the temperature range for operating this module?

   It operates within a temperature range of 0°C to +60°C.

6. What is the size of the module?

   The module’s dimensions are approximately 38mm x 267mm x 165 mm.

7. What industries can benefit from the 621-9939 Serial Link Module?

   It is ideal for industries such as oil and gas, power generation, chemicals, and manufacturing.

8. Can this module support multiple devices?

   Yes, it supports both point-to-point and multi-drop communication setups.

9. What type of feedback does the module provide for diagnostics?

   The module has LED indicators that show the operational and communication status.

10. What certifications does the module have?

    The module is CE, UL, and CSA certified (region-specific).
