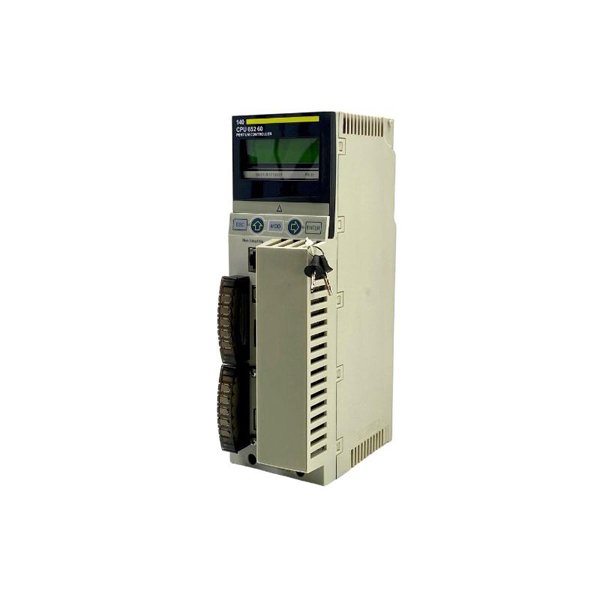

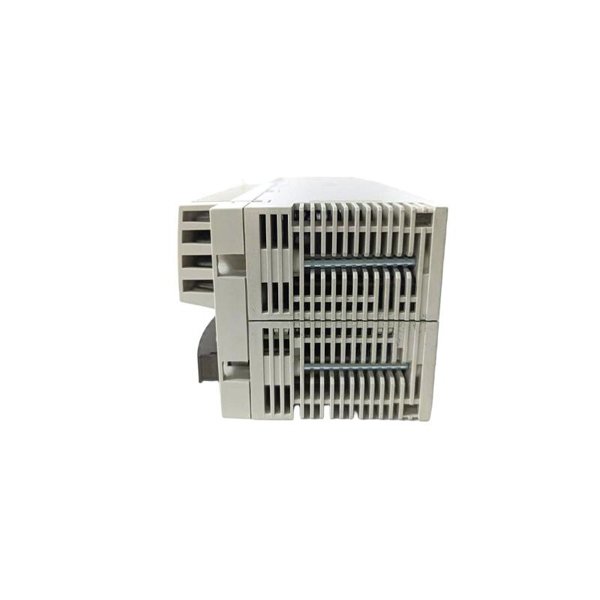

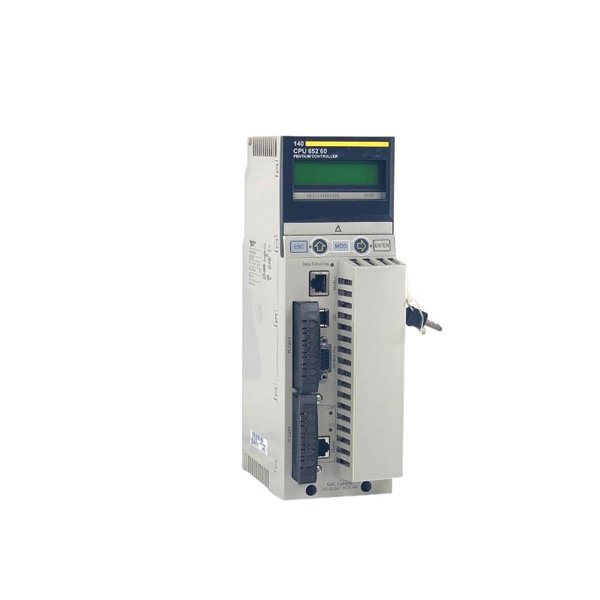

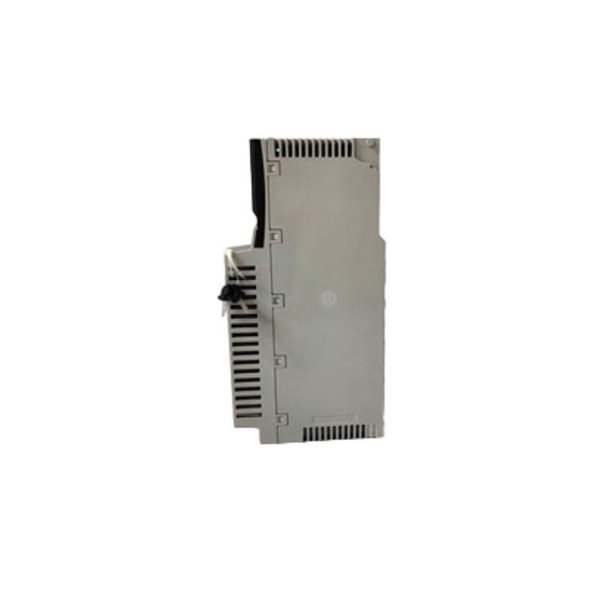

Schneider 140CPU65260C Unity Processor

The Schneider 140CPU65260C Unity Processor is a high-performance central processing unit designed to provide comprehensive control and automation solutions for industrial applications. As part of Schneider Electric’s Unity family of programmable logic controllers (PLCs), the 140CPU65260C offers advanced processing capabilities, high-speed control, and seamless integration into a wide range of industrial systems.

This processor is specifically designed to meet the increasing demand for flexible and scalable automation solutions in industries such as manufacturing, energy management, and infrastructure. The Unity processor is at the core of Schneider Electric’s Modicon platform, providing seamless integration with other Modicon controllers, I/O modules, and human-machine interfaces (HMIs).

The 140CPU65260C is well-suited for applications that require precise control, high-speed data processing, and real-time monitoring of complex systems. With its extended communication capabilities, the Unity processor ensures smooth and efficient operations in even the most demanding industrial environments.

Product Specifications

The Schneider 140CPU65260C Unity Processor comes with the following key specifications:

Applications of the Product

The Schneider 140CPU65260C Unity Processor is designed for use in a wide range of industrial automation applications. Some of its key applications include:

• Manufacturing Automation: The Unity processor is widely used in manufacturing plants for controlling automated machinery, assembly lines, and robotic arms. It helps streamline production processes by enabling high-speed control and real-time monitoring.

• Energy Management: In energy-intensive industries, the 140CPU65260C plays a crucial role in energy management systems by controlling and monitoring energy distribution, optimizing power usage, and reducing energy consumption.

• Process Control: The processor is ideal for process control applications, where it monitors and controls critical systems such as fluid handling, chemical processes, and heat treatment. Its high-speed processing capability ensures smooth and efficient control of complex processes.

• Building Automation: The Unity Processor is also employed in building automation systems, managing lighting, HVAC (heating, ventilation, and air conditioning), and other critical systems in commercial and industrial buildings.

• Infrastructure and Utilities: The 140CPU65260C is used in critical infrastructure applications, including water treatment plants, electric power distribution systems, and transportation control systems, ensuring reliable and efficient operation.

• Industrial Robotics: The Unity Processor can be used to control industrial robots in applications such as material handling, packaging, and assembly. The processor ensures high precision and reliability, enabling safe and efficient robot operations.

Advantages of the Product

The Schneider 140CPU65260C Unity Processor offers several key advantages that make it a standout choice for industrial automation applications:

• High-Speed Processing: With a 1 GHz processor, the 140CPU65260C offers fast processing speeds, ensuring quick response times and improved system performance for high-speed applications.

• Advanced Communication Options: The processor supports a wide range of communication protocols such as Ethernet, Modbus, and Serial Communication, ensuring seamless integration with other industrial control systems and devices.

• Scalable and Flexible: The 140CPU65260C can be used in small to large-scale systems, providing flexible and scalable control solutions to meet varying industrial demands. It is capable of managing up to 32 I/O modules, allowing for extensive system expansion.

• Compact and Robust Design: With dimensions of 110 x 190 x 325 mm and a weight of 1.483 kg, the processor has a compact and robust design, making it easy to integrate into control cabinets and industrial panels, while maintaining durability in harsh environments.

• Energy Efficiency: With a low 24 V DC power supply, the Unity Processor is energy-efficient, helping reduce operational costs and improve sustainability in industrial operations.

• Wide Temperature Range: The processor can operate in temperatures ranging from -10°C to +60°C, making it suitable for a variety of industrial environments, from controlled factory floors to outdoor installations.

Frequently Asked Questions (FAQ)

1. What is the primary function of the Schneider 140CPU65260C Unity Processor?

   • The 140CPU65260C is a high-performance processor for controlling and automating industrial systems in applications such as manufacturing, energy management, and process control.

2. What are the communication ports available on the 140CPU65260C?

   • The processor supports Ethernet, Serial Communication, and Modbus protocols for communication.

3. What is the operating temperature range of the 140CPU65260C?

   • The processor operates within a temperature range of -10°C to +60°C.

4. How many I/O modules can the 140CPU65260C support?

   • The 140CPU65260C supports up to 32 I/O modules.

5. What is the power supply requirement for the 140CPU65260C?

   • The processor requires a 24 V DC power supply.

6. What is the processor speed of the 140CPU65260C?

   • The 140CPU65260C is equipped with a 1 GHz processor, providing fast data processing and control capabilities.

7. How is the 140CPU65260C mounted?

   • The processor is mounted on a DIN Rail, which simplifies installation and integration into industrial control systems.

8. What is the memory capacity of the 140CPU65260C?

   • The processor has 2 MB of RAM, which is suitable for handling complex control tasks and large programs.

9. What industries commonly use the 140CPU65260C processor?

   • The processor is widely used in manufacturing, energy management, process control, building automation, and infrastructure management industries.

10. What are the dimensions of the 140CPU65260C processor?

• The 140CPU65260C has dimensions of 110 x 190 x 325 mm and weighs 1.483 kg.
