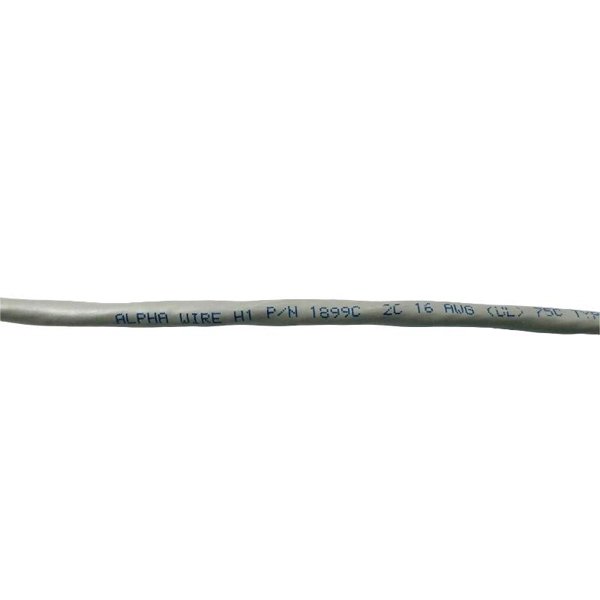

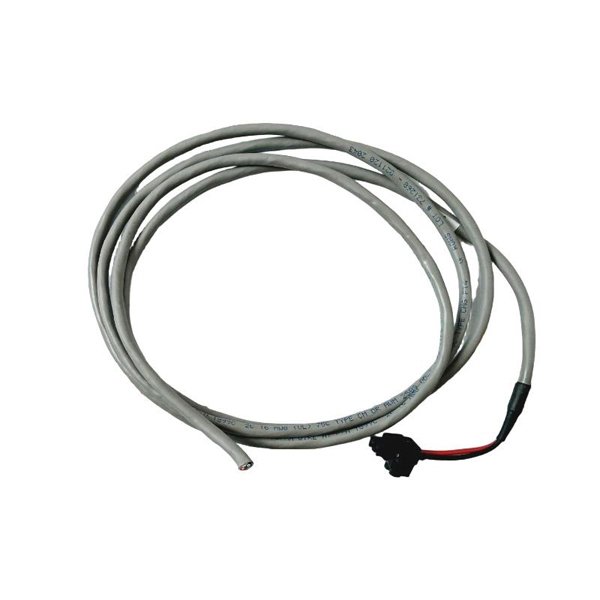

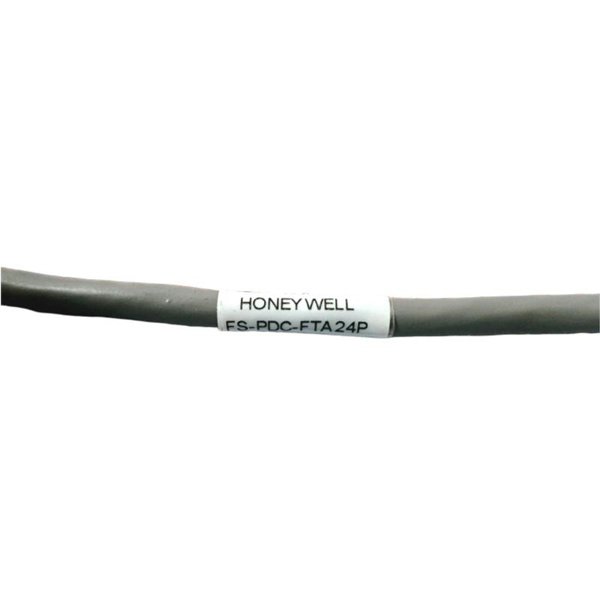

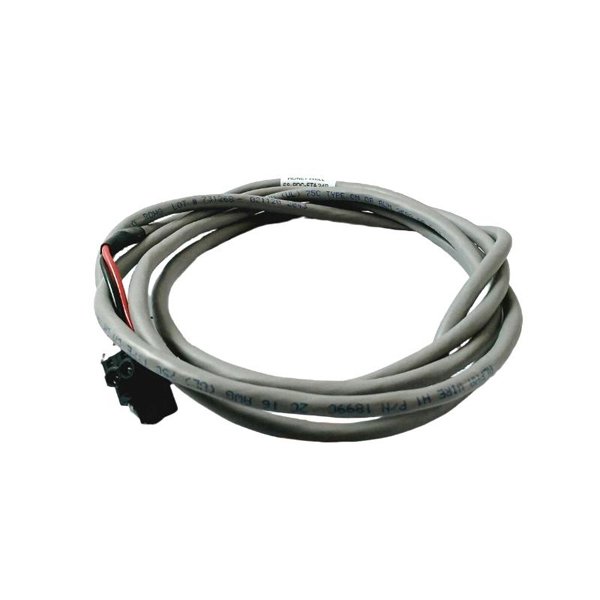

Honeywell FS-PDC-FTA24P Power Distribution Cable

The Honeywell FS-PDC-FTA24P Power Distribution Cable is a critical component used in distributed control systems (DCS), particularly within Honeywell’s Safety Manager and Fail-Safe Controller (FSC) platforms. Engineered for reliability, this cable facilitates power distribution between the Power Distribution Component (FS-PDC) and the Field Terminal Assembly (FTA). The FS-PDC-FTA24P is designed to meet stringent industrial standards, making it suitable for mission-critical applications across various sectors including petrochemical, oil & gas, power generation, and industrial automation.

Constructed with industrial-grade materials and precise manufacturing, the FS-PDC-FTA24P ensures stable voltage transmission, minimal interference, and long-term operational stability even in harsh environments. It supports 24V DC distribution, and its flexible length and rugged jacket enable it to be deployed in challenging setups.

Product Specifications

Product Applications

The FS-PDC-FTA24P cable is engineered for specialized use in Honeywell control systems. Common application scenarios include:

• Distributed Control Systems (DCS): Seamless 24V power supply routing in Honeywell Safety Manager systems.

• Emergency Shutdown Systems (ESD): Reliable voltage transfer between FS-PDC and I/O interfaces in shutdown logic.

• Industrial Automation: Connecting central power units to remote field terminal assemblies (FTA).

• Oil & Gas Plants: High-reliability connections in safety instrumentation systems.

• Power Plants: Integration into process safety systems.

• Refineries and Chemical Plants: Long-term durable deployment in harsh industrial conditions.

Product Advantages

• High Reliability: Designed to operate reliably in mission-critical safety applications.

• Industrial-Grade Build: Withstands harsh environments, temperature extremes, and EMI.

• Honeywell Compatibility: Specifically optimized for FS series modules ensuring plug-and-play compatibility.

• Noise Resistance: Dual shielding protects against electrical noise and signal degradation.

• Custom Lengths: Available in standard and customized lengths to suit various setups.

• Easy Installation: Pre-molded connectors reduce installation time and ensure secure fit.

• Long Service Life: Durable materials enhance product lifespan and reduce maintenance needs.

FAQs

1. What systems is the FS-PDC-FTA24P cable compatible with?

It is designed primarily for Honeywell FSC and Safety Manager systems, particularly in applications involving FS-PDC and FTAs.

2. What is the voltage rating of this cable?

The cable supports 24V DC voltage distribution.

3. How long is the cable?

The cable 2 meters.

4. What certifications does the FS-PDC-FTA24P meet?

It meets CE, RoHS, and UL certifications, and complies with industrial flame-retardant standards.

5. Can this cable be used outdoors?

While it’s designed for industrial environments, it should be enclosed or shielded if exposed directly to outdoor elements.

6. What type of shielding does the cable use?

It uses both braided and foil shielding to provide excellent noise immunity.

7. What kind of connectors are used?

It uses molded plug connectors tailored for FS-PDC and FTA modules, ensuring secure connections.

8. What is the operating temperature range?

The cable functions reliably between -40°C and +85°C.

9. Can I install this cable myself or do I need a technician?

Installation is straightforward, but a certified technician is recommended to ensure correct integration.

10. Is the cable hot-swappable?

No, the cable should be installed or replaced with power off for safety and system integrity.
