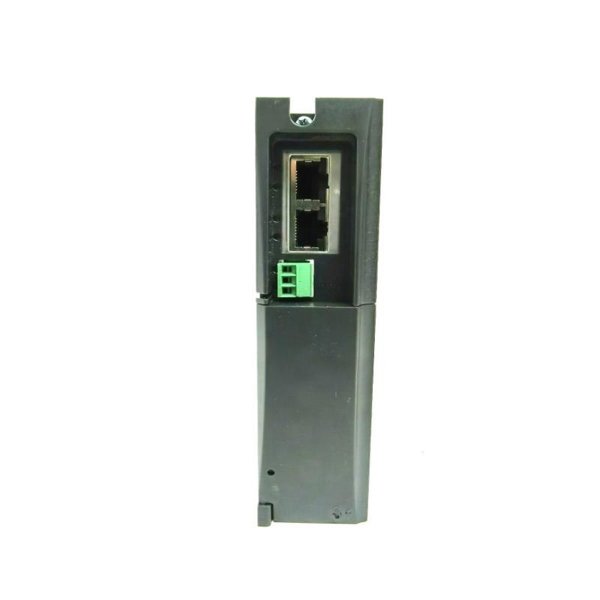

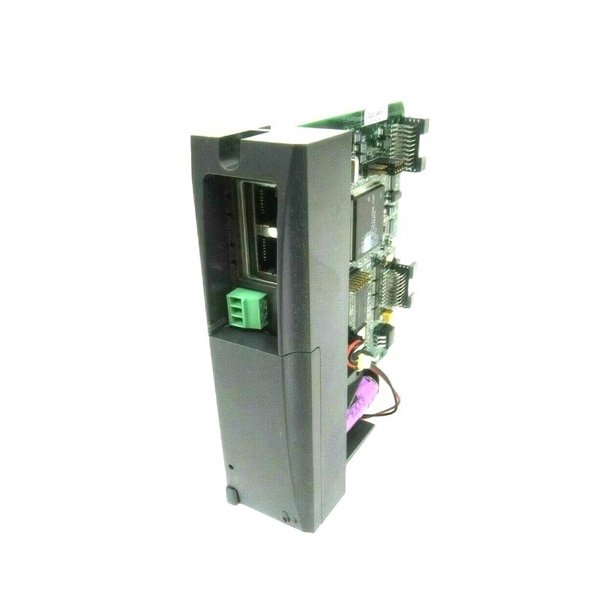

Honeywell 900C52-0141-00 HC900 C50 Controller CPU

The Honeywell 900C52-0141-00 is part of the HC900 C50 Controller CPU family — a robust, high-performance programmable controller designed for complex hybrid applications where both process and logic control are required. As a core element of the HC900 series, this model is optimized for medium to large-sized automation systems requiring modularity, flexibility, and long-term reliability.

With enhanced processing power, dual Ethernet ports, and large I/O capacity, the 900C52-0141-00 is well-suited for industrial sectors that demand accurate control, real-time communication, and seamless system integration. It supports Honeywell’s Hybrid Control Designer (HCD) software, which offers intuitive programming with functional block design and ladder logic tools.

The controller’s design emphasizes scalability, redundancy, and diagnostic transparency, making it a smart solution for OEMs, process industries, and system integrators.

Product Specifications

Product Applications

The 900C52-0141-00 is engineered for demanding environments and advanced control systems across various sectors:

• Chemical & Petrochemical Plants: For precise batch control, recipe management, and blending systems.

• Pharmaceutical Manufacturing: Ensures compliance with FDA standards, ideal for bioreactors and cleanroom environments.

• Water & Wastewater Treatment: Effective for pump control, filtration, and flow management systems.

• Power Generation: Boiler control, turbine monitoring, and balance of plant (BoP) control.

• Food & Beverage Industry: Used in temperature control, pasteurization, and clean-in-place (CIP) systems.

• OEM Equipment Control: For machine builders who require modular and scalable logic/process integration.

Product Advantages

• Dual Ethernet Communication: Provides flexible networking options for plant-wide communication.

• Scalable I/O System: Supports up to 2048 points, ideal for medium to large installations.

• Redundancy-Ready: Designed to support CPU and power supply redundancy for critical processes.

• Hybrid Control Capability: Integrates both discrete logic and continuous process control seamlessly.

• Built-In Diagnostics: Real-time diagnostics reduce downtime and simplify maintenance.

• Flexible Programming Options: Intuitive block-based configuration via HCD software with drag-and-drop UI.

• Secure and Reliable: Designed for 24/7 operation in industrial-grade environments with harsh conditions.

• Broad Protocol Support: Compatible with most SCADA, DCS, and third-party HMI systems.

Frequently Asked Questions (FAQ)

1. Q: What makes the 900C52-0141-00 different from other C50 CPUs?

   A: This model includes support for peer-to-peer communication and redundancy, which some base-level C50 models don’t offer.

2. Q: Can I replace a failed C50 CPU without shutting down the entire system?

   A: Yes, if the system is configured for CPU redundancy, the secondary controller will take over automatically.

3. Q: Is the 900C52-0141-00 compatible with third-party I/O modules?

   A: No. It works only with Honeywell HC900 series I/O modules to maintain system integrity and performance.

4. Q: What is the average configuration time for a typical project?

   A: For mid-sized projects, most engineers can configure the system in HCD within a few hours to a day, depending on the complexity.

5. Q: How do I transfer my program to the CPU?

   A: Use the Hybrid Control Designer software and download the control strategy via Ethernet or serial connection.

6. Q: Can this CPU log data to an external storage device?

   A: Not directly. However, data can be logged via connected SCADA or HMI software using Modbus or OPC.

7. Q: What kind of redundancy is supported?

   A: The controller supports both power and CPU redundancy for uninterrupted control.

8. Q: Does the unit support SNMP for network management?

   A: SNMP is not natively supported, but network health can be monitored through diagnostics tools and SCADA integration.

9. Q: How do firmware upgrades work?

   A: Firmware updates are done via USB or Ethernet using Honeywell tools, typically provided through authorized service channels.

10. Q: What happens if communication between the CPU and I/O rack is lost?

    A: The system generates a fault and enters a safe state, based on the configured fallback behavior in the control logic.
