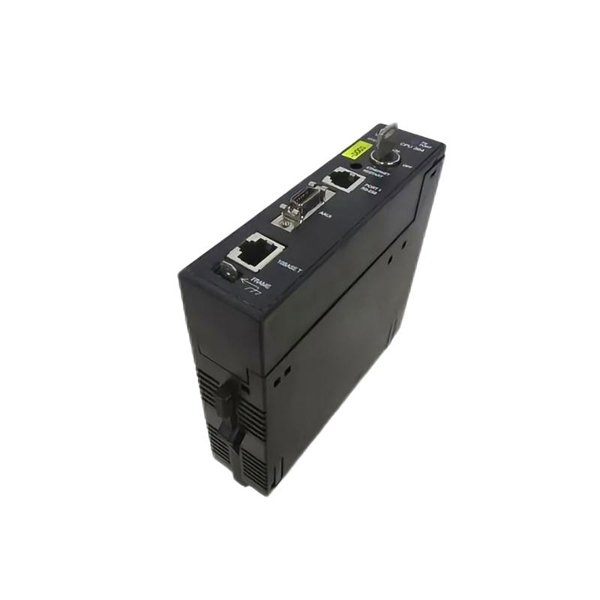

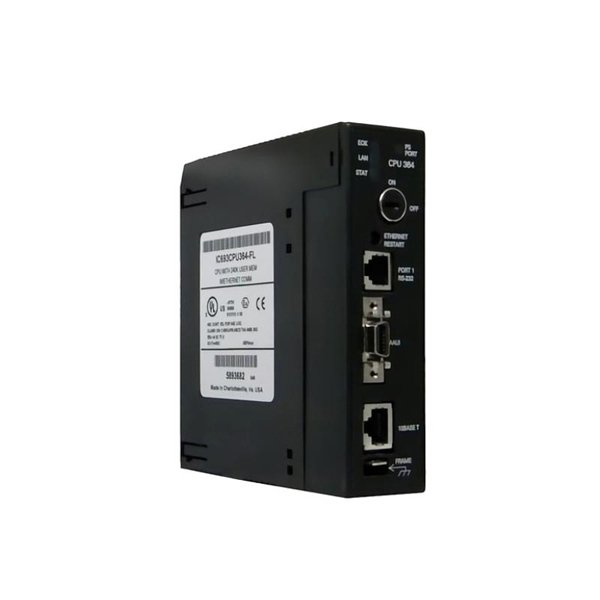

General Electric IC693CPU364 Single-Slot CPU Module

The GE IC693CPU364 is a high-performance CPU module from the Series 90-30 PLC family, manufactured by GE Fanuc (now part of Emerson). Designed for industrial automation systems that demand fast execution, integrated networking, and a compact footprint, the IC693CPU364 has become a go-to controller for medium-to-large scale applications.

This module features built-in Ethernet connectivity, a real-time clock, and expanded memory capacity, allowing engineers to execute complex control logic while simultaneously communicating with SCADA, HMI, and other networked devices. As a single-slot module, it fits easily into compact control panels, making it ideal for distributed control systems.

Product Specifications

Applications

The IC693CPU364 is widely deployed in various sectors where reliable control, network integration, and modular expansion are critical. Applications include:

• Discrete Manufacturing: Managing assembly lines, motor starters, and robotic interfaces.

• Water/Wastewater Treatment: Control of valves, pumps, monitoring stations, and telemetry units.

• Food & Beverage: Sequencing, batching, and packaging systems.

• Oil & Gas: SCADA-enabled pipeline monitoring and compressor control.

• Material Handling: Conveyor systems, warehouse automation, and palletizers.

• HVAC and Building Systems: Advanced control of heating, cooling, and lighting systems.

Thanks to the built-in Ethernet port, this CPU module is well-suited for networked automation environments and integrated control architectures.

Product Advantages

• Integrated Ethernet Port: Enables remote programming, monitoring, and SCADA integration without the need for additional modules.

• High Memory Capacity: Supports large-scale applications and complex logic execution.

• Single-Slot Architecture: Saves panel space, ideal for compact installations.

• Real-Time Clock: Ensures accurate time-stamping and logging of events.

• Flexible Communication: Supports Modbus TCP/IP, SRTP, and other open protocols for seamless integration.

• Reliable Design: Field-proven reliability in harsh and mission-critical environments.

• Expandable System: Easily scalable using additional I/O and specialty modules in the Series 90-30 family.

• Cost-Effective Solution: Combines performance, scalability, and connectivity at a competitive price point.

Frequently Asked Questions (FAQ)

1. Q: What is the main difference between IC693CPU364 and IC693CPU363?

   A: The IC693CPU364 features built-in Ethernet and larger memory, whereas the 363 has basic Ethernet and less memory.

2. Q: What software is required to program this module?

   A: The module is programmed using Proficy Machine Edition – Logic Developer PLC.

3. Q: Does this CPU support real-time clock functionalities?

   A: Yes, it has an integrated battery-backed real-time clock.

4. Q: What Ethernet protocols does the IC693CPU364 support?

   A: It supports SRTP, Modbus TCP/IP, EGD, and SNMP.

5. Q: Can I use this module in hazardous or outdoor environments?

   A: It is designed for industrial settings, but additional enclosures or protective ratings may be required for extreme environments.

6. Q: How many I/O points can be connected?

   A: It supports up to 240 local I/O points, and more with remote I/O racks.

7. Q: Is online editing supported during operation?

   A: Yes, Proficy ME allows for online changes without halting the process.

8. Q: Can I use structured text or function block programming?

   A: No, the IC693CPU364 primarily supports Relay Ladder Logic (RLL).

9. Q: Is this CPU module hot-swappable?

   A: No, power must be turned off before removing or inserting the CPU module.

10. Q: How long is this product expected to be supported?

    A: GE has long-term lifecycle support for Series 90-30 products, often exceeding 10–15 years in service.
