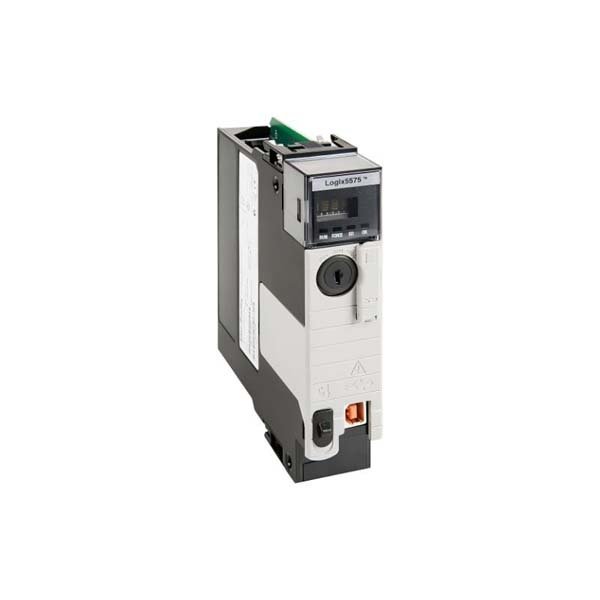

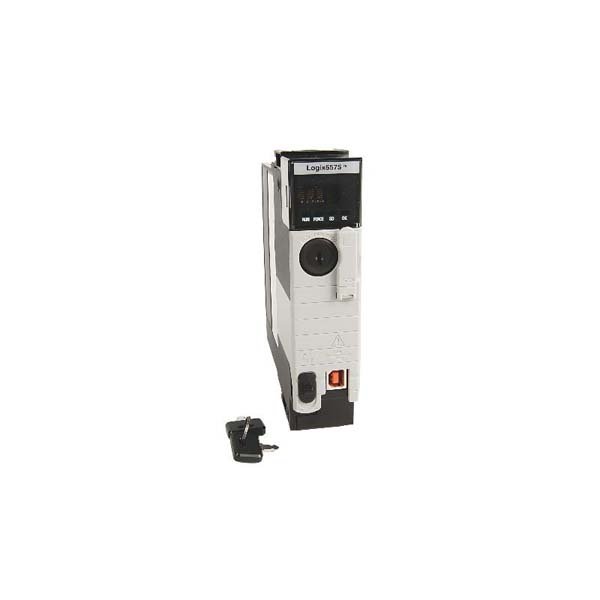

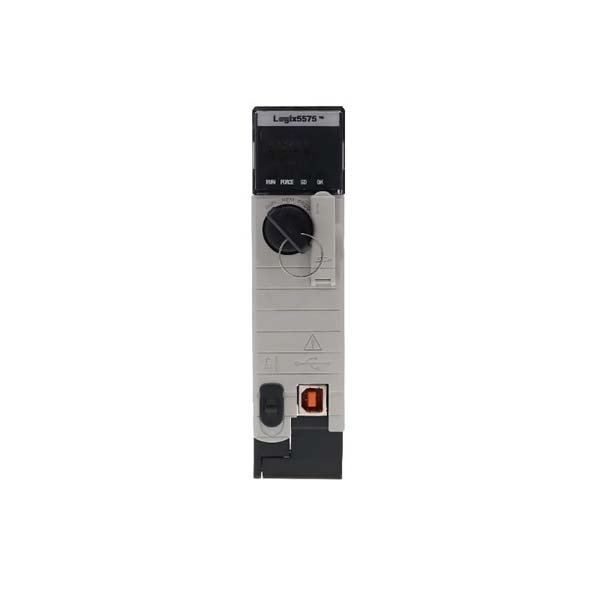

Allen-Bradley 1756-L75 ControlLogix 5570 CPU Processor Module

The Allen-Bradley 1756-L75 is a high-performance ControlLogix 5570 processor module developed for complex automation, motion control, and process applications. Equipped with 32 MB of user memory and an advanced multi-core processor, the L75 provides fast scan times, enhanced communication, and superior data management capabilities. It integrates seamlessly into Rockwell Automation’s ControlLogix platform, supporting EtherNet/IP, ControlNet, and DeviceNet communication modules for flexible system design.

Built for mission-critical industrial environments, the 1756-L75 ensures exceptional performance, scalability, and reliability. Its robust architecture, redundancy capability, and advanced diagnostics make it a trusted solution for large-scale control systems across industries such as manufacturing, power generation, oil and gas, and infrastructure automation.

Technical Specifications

Applications

The Allen-Bradley 1756-L75 processor is designed for high-end control and automation solutions requiring real-time performance and large data handling capacity:

• Automotive Manufacturing: Coordinates robots, conveyors, and assembly systems.

• Oil & Gas Systems: Controls complex distributed processes with redundancy.

• Pharmaceutical Production: Ensures batch accuracy and regulatory compliance.

• Power & Utilities: Supports plant automation and smart grid integration.

• Food and Beverage Lines: Handles synchronized packaging and quality control.

• Water Treatment Plants: Provides reliable distributed control with high data throughput.

Advantages

• Large Memory Capacity: 32 MB user memory allows for complex programs and high data storage.

• High-Speed Execution: Multi-core architecture ensures rapid logic processing.

• Modular Flexibility: Works with various communication and I/O modules.

• Enhanced Reliability: Redundancy support ensures continuous uptime.

• Scalable System Design: Ideal for both small and large distributed systems.

• Advanced Diagnostics: Real-time fault detection and detailed system status.

• Studio 5000 Integration: Simplified configuration and programming.

• Secure Data Management: SD card enables backup, restore, and audit capabilities.

• High I/O Capacity: Supports up to 500,000 I/O points for extensive applications.

• Industrial Durability: Built for demanding environments with robust construction.

FAQs

1. Q: What is the user memory capacity of the 1756-L75 module?

   A: It features 32 MB of user memory for control logic and data storage.

2. Q: Does the L75 support redundancy configurations?

   A: Yes, it supports ControlLogix controller redundancy for critical systems.

3. Q: What programming environment is used for configuration?

   A: The module is programmed using Studio 5000 Logix Designer.

4. Q: Can it communicate via EtherNet/IP directly?

   A: Yes, when paired with a 1756-EN2T or similar communication module.

5. Q: Is an SD card required for operation?

   A: It’s optional but recommended for data backup and nonvolatile storage.

6. Q: What is the processor’s operating temperature range?

   A: From 0°C to +60°C (32°F to 140°F).

7. Q: Can multiple L75 processors be installed in a single chassis?

   A: Yes, provided the chassis has adequate power and slot capacity.

8. Q: Does it support CIP Motion?

   A: Yes, it fully supports integrated motion over EtherNet/IP.

9. Q: How many tasks can the L75 handle simultaneously?

   A: It supports up to 100 concurrent tasks.

10. Q: What is the maximum I/O capacity supported?

    A: The processor supports up to 500,000 I/O points.
