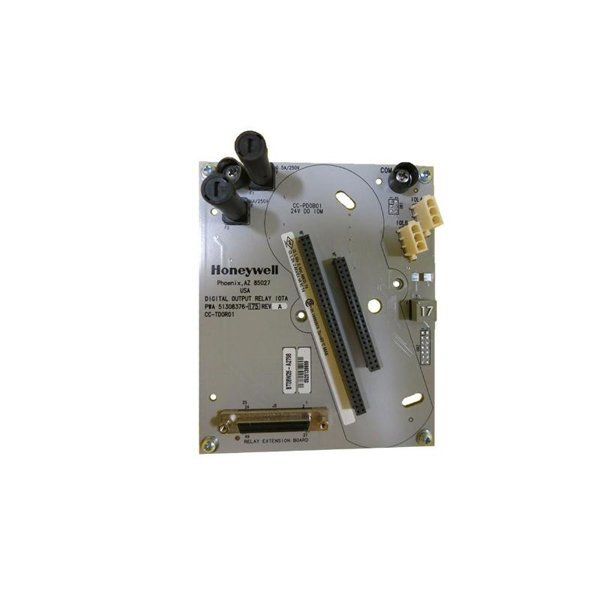

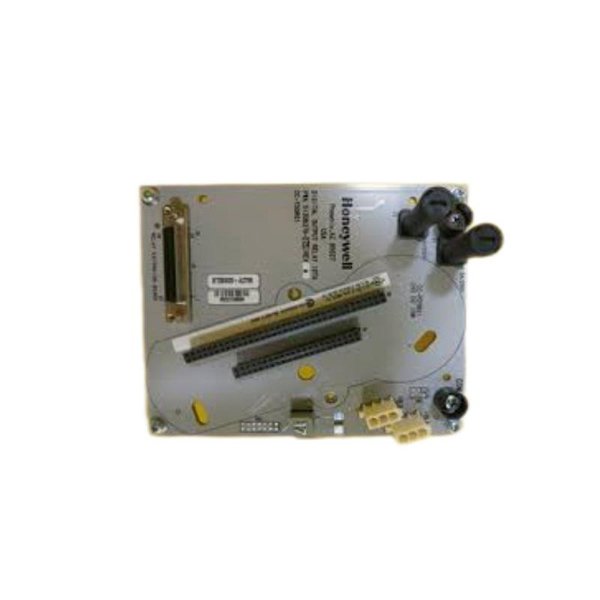

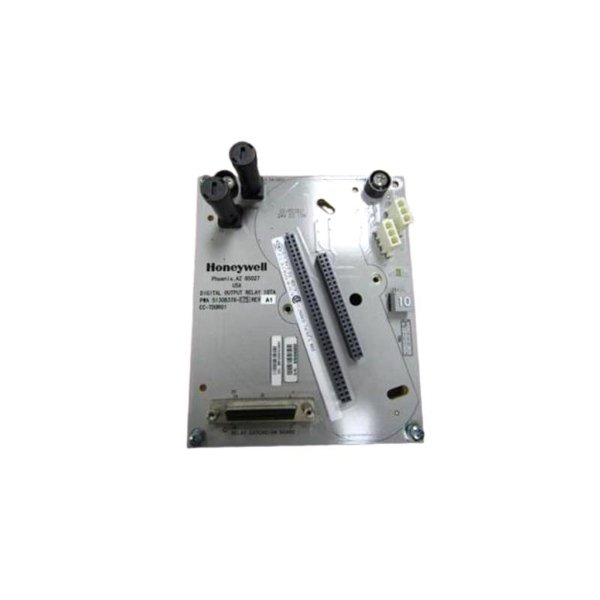

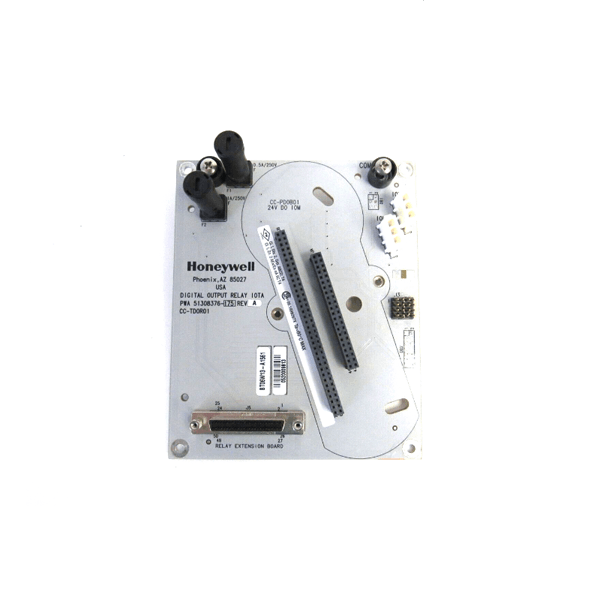

Honeywell CC-TD0R01 Digital output Module

With robust diagnostic features, hot-swap capability, and tight integration into the Experion system architecture, the CC-TD0R01 supports efficient plant operations and ensures long-term system sustainability.

Technical Parameters

Product Applications

• Oil & Gas Refineries – Used in burner management, valve actuation, and safety interlocks.

• Petrochemical Plants – Ideal for process control where digital signal switching reliability is critical.

• Power Generation Facilities – Employed in turbine control systems and plant-wide automation.

• Pharmaceutical Manufacturing – Applied in validation-critical and batch control operations.

• Water Treatment Plants – Controls pumps, valves, and other field actuators in SCADA environments.

• Steel and Metal Processing – Enables real-time actuation and signal feedback for heavy equipment.

Product Advantages

• Redundant Design: Built-in support for fault-tolerant redundant configurations improves uptime and reliability.

• Hot-Swappable Module: Enables module replacement without system shutdown or data loss.

• Integrated Diagnostics: Real-time fault detection and LED status indicators enhance maintenance efficiency.

• Compact Footprint: Slim module design fits into high-density cabinet installations.

• Seamless Integration: Fully compatible with Honeywell Experion and C300 systems, reducing engineering overhead.

• High Output Channel Density: Offers up to 16 outputs per module for scalable system expansion.

FAQ (Frequently Asked Questions)

Q1: What is the main function of the CC-TD0R01 module?

A1: It serves as a 16-channel digital output module for switching field devices in industrial automation systems.

Q2: Is this module suitable for safety-critical applications?

A2: Yes, it supports redundancy and diagnostic functions ideal for critical environments.

Q3: Can this module be used with non-Honeywell systems?

A3: It is specifically designed for Honeywell Experion PKS and C300 systems and may not be compatible elsewhere.

Q4: Does the CC-TD0R01 support hot-swap functionality?

A4: Yes, it allows module replacement without system power-down.

Q5: How many output channels are available on the module?

A5: The module provides 16 discrete digital output channels.

Q6: What is the operating temperature range?

A6: It operates from -40°C to +70°C.

Q7: Is the module compliant with global safety and environmental standards?

A7: Yes, it complies with CE, RoHS, UL, and CSA standards.

Q8: Can this module be mounted on any base?

A8: It must be installed on a compatible Honeywell Universal I/O base.

Q9: What happens if one part of the redundant pair fails?

A9: The system automatically switches to the healthy module without affecting operation.

Q10: What is the power consumption of this module?

A10: Less than 5 watts from the backplane.
