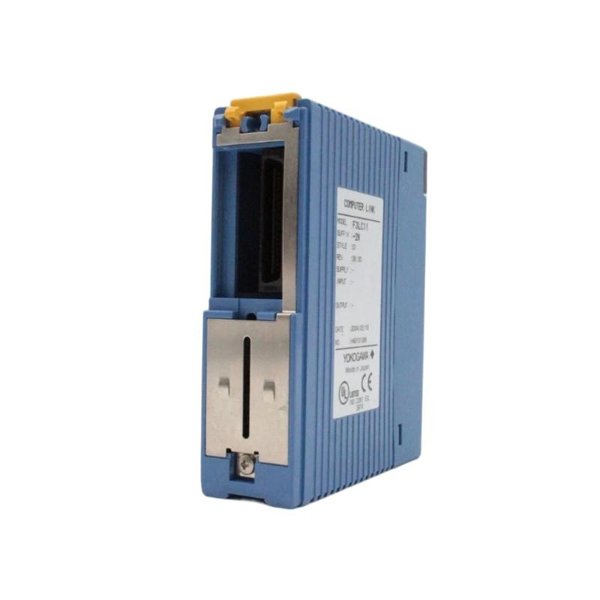

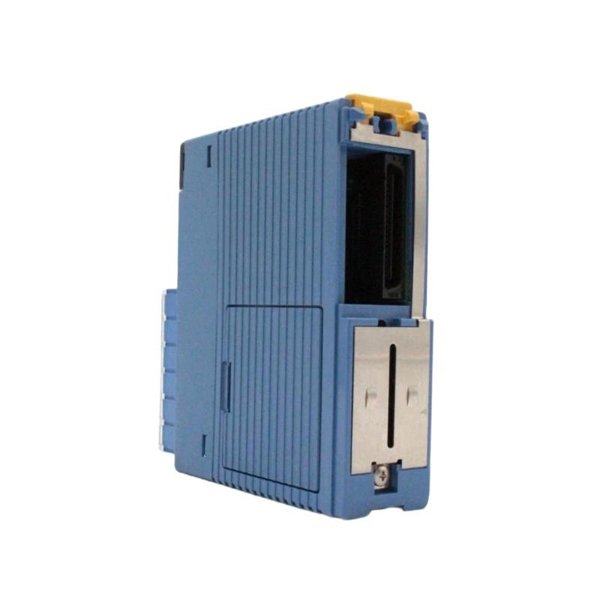

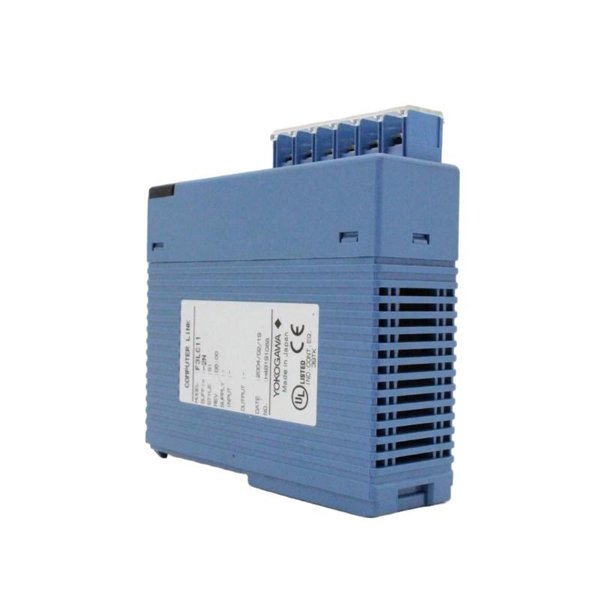

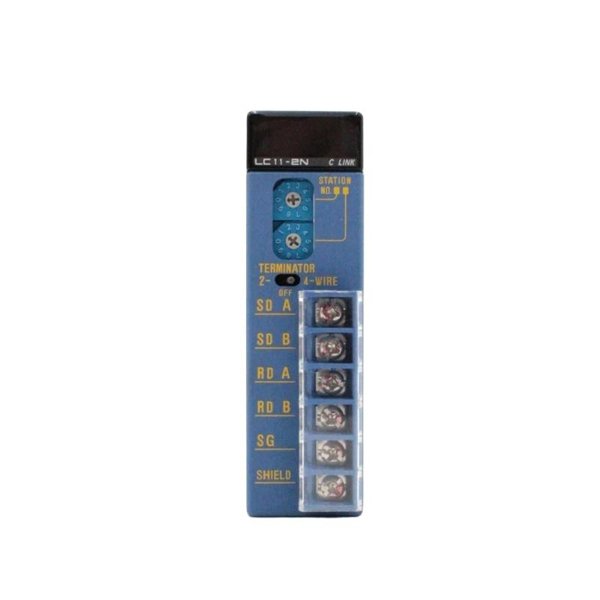

Yokogawa F3LC31-2F Modbus Interface Module

The Yokogawa F3LC31-2F Modbus Interface Module is designed to provide seamless communication between a Yokogawa FA-M3 PLC system and devices utilizing the Modbus protocol. This module ensures reliable and efficient data exchange in both master and slave modes, making it a key component for industrial automation systems requiring flexible communication architecture. Built for rugged industrial environments, the module delivers high-speed data transfer, advanced error detection, and protocol conversion capabilities, enabling interoperability across multiple vendors’ systems.

The F3LC31-2F enhances the overall performance of process automation systems by simplifying integration with third-party devices such as drives, sensors, and controllers. Its modular architecture allows easy installation within FA-M3 racks while offering robust diagnostic features for maintenance and troubleshooting.

Product Specifications

Product Applications

The F3LC31-2F Modbus Interface Module is widely utilized in various industrial and process automation applications where Modbus communication is required. Common applications include:

• Integration of Modbus devices such as sensors, actuators, and controllers into Yokogawa FA-M3 systems.

• Communication with variable frequency drives (VFDs) for speed and torque control in manufacturing environments.

• Remote terminal unit (RTU) integration in SCADA systems for real-time data acquisition and control.

• Energy management systems, connecting energy meters with control systems via Modbus.

• Process control applications in industries such as oil and gas, water treatment, chemical processing, and power generation.

Product Advantages

• Flexible Protocol Support: Supports both Modbus RTU and ASCII modes for compatibility with a wide range of devices.

• Dual Communication Ports: Allows simultaneous connections to multiple devices, increasing system scalability.

• High-Speed Data Transfer: Configurable baud rates up to 115.2 kbps for fast communication.

• Robust Error Handling: Built-in error detection and diagnostics reduce downtime and ensure reliable operation.

• Easy Integration: Seamlessly fits into FA-M3 racks without additional wiring complexity.

• Industrial Durability: Designed for harsh environments with optical isolation and wide operating temperature range.

FAQ

1. How many Modbus devices can the F3LC31-2F module communicate with simultaneously?

The F3LC31-2F can manage multiple devices based on the configured network topology, supporting up to 31 slave devices in RS-485 multi-drop mode.

2. Does the module support Modbus TCP/IP?

No, the F3LC31-2F supports only serial Modbus protocols (RTU and ASCII) over RS-232C and RS-485 interfaces.

3. Can the F3LC31-2F function as both Modbus master and slave?

Yes, the module supports both master and slave modes, which can be configured through the system settings.

4. What diagnostic features are included in the module?

The module provides communication status LEDs, error code display, and detailed diagnostic logs accessible through the configuration software.

5. How is communication speed configured on this module?

Baud rate and communication parameters can be set via system configuration tools or through DIP switches, depending on the system design.

6. Is the F3LC31-2F hot-swappable within the FA-M3 system?

Yes, the module supports hot-swapping, allowing maintenance without shutting down the entire system.

7. How does the module handle communication errors?

The module uses checksum verification, timeout detection, and retries to ensure data integrity during transmission.

8. Does the module provide electrical isolation for the communication ports?

Yes, the F3LC31-2F features optical isolation to protect against ground loops and electrical noise.

9. What is the maximum supported cable length for RS-485 communication?

The maximum cable length for RS-485 is typically 1,200 meters, depending on baud rate and cable quality.

10. Can the F3LC31-2F be configured remotely?

Yes, configuration can be performed remotely through the Yokogawa engineering software when the system is connected to the network.
