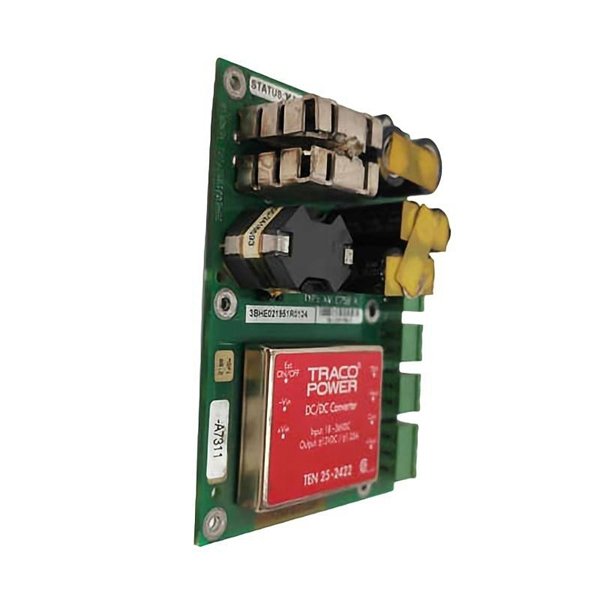

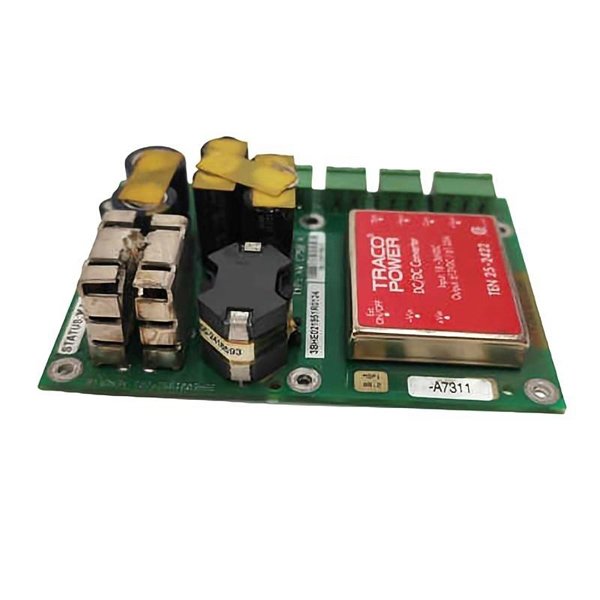

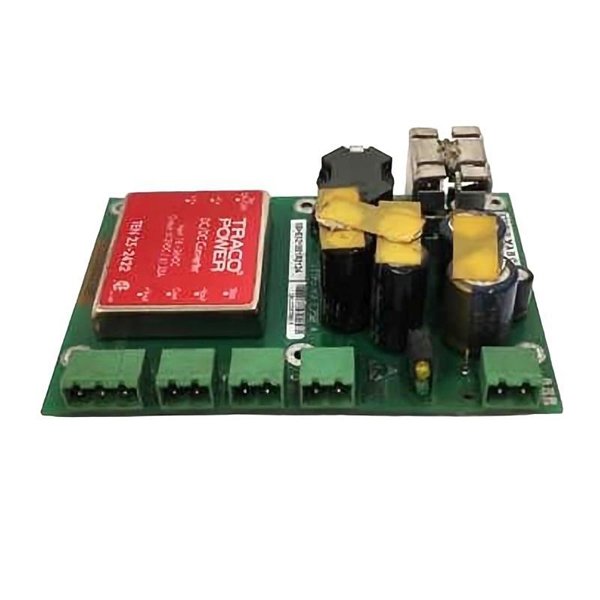

ABB 3BHE02195R0124 Control Board

The ABB 3BHE02195R0124 Control Board is a high-performance electronic control module designed for ABB’s industrial automation and process control systems. It functions as the central processing and interfacing unit within distributed control systems (DCS), motor control centers, and power converters, providing precise monitoring, control, and communication capabilities.

Engineered with high-quality components and robust circuit design, this control board ensures reliable operation in harsh industrial environments. It manages signal processing, logic control, and communication with I/O modules, power electronics, and supervisory systems. The 3BHE02195R0124 enhances operational safety, reduces system downtime, and allows for scalable integration into both new and legacy ABB control platforms.

Product Specifications

Product Applications

The ABB 3BHE02195R0124 control board is used across a wide range of industrial applications, including:

• Power Generation – Monitors and controls turbines, generators, and auxiliary systems.

• Petrochemical & Chemical Processing – Controls process variables and integrates with safety systems.

• Water & Wastewater Treatment – Interfaces with pumps, valves, and sensors for automated operation.

• Industrial Drives – Controls medium- and high-voltage motors in steel, cement, and mining plants.

• Oil & Gas – Provides control for pipelines, compressors, and refinery equipment.

• Renewable Energy – Used in wind turbine and solar plant control systems for power regulation and monitoring.

Product Advantages

• Reliable Performance – Industrial-grade components and tested design ensure stable operation under harsh conditions.

• Flexible Communication – Supports multiple protocols for seamless integration into ABB DCS and third-party systems.

• High Processing Power – 32-bit microcontroller allows fast signal processing and precise control.

• Scalable Design – Suitable for small automation setups as well as large, distributed industrial networks.

• Compact & Durable – Small footprint and robust construction make it ideal for retrofits and new installations.

• Ease of Maintenance – Modular design simplifies replacement and upgrades.

• Industrial Compliance – Meets CE, UL, and IEC standards for safety and reliability.

FAQ

1. What type of processor is used in the 3BHE02195R0124?

   It uses a 32-bit industrial-grade microcontroller for high-speed control operations.

2. Which communication protocols are supported?

   CAN, RS-485, Ethernet, Profibus, and Modbus RTU.

3. Can this control board be used in redundant systems?

   Yes, it supports configurations for redundancy in DCS and motor control applications.

4. What is the operating voltage of the board?

   It operates on 24 V DC nominal supply voltage.

5. Is the board suitable for high-humidity environments?

   Yes, it can operate reliably in 10–95% non-condensing humidity.

6. How is the board mounted?

   It supports rack or DIN rail mounting for flexible installation.

7. Does it support online firmware upgrades?

   Yes, the board allows firmware updates without full system shutdown.

8. What type of memory is integrated?

   It has 512 MB RAM for processing and 4 GB flash for firmware and configuration storage.

9. Can it interface with legacy ABB systems?

   Yes, it is compatible with both modern and legacy ABB control platforms.

10. Does it include diagnostics or status indicators?

    Yes, it features LED indicators and self-diagnostics for operational monitoring.
