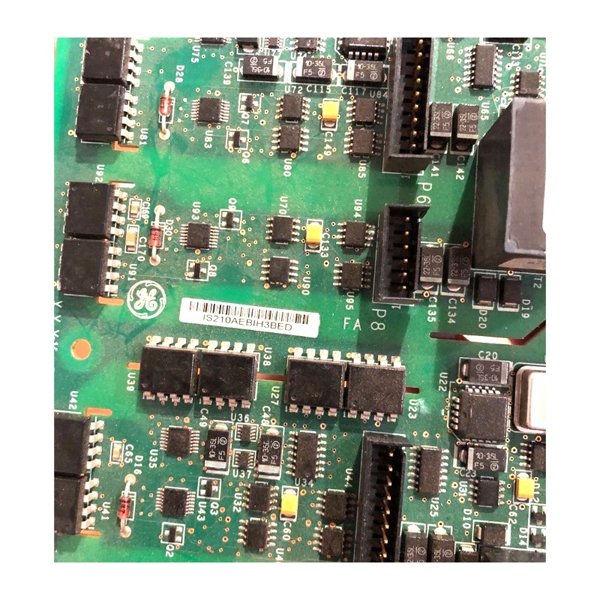

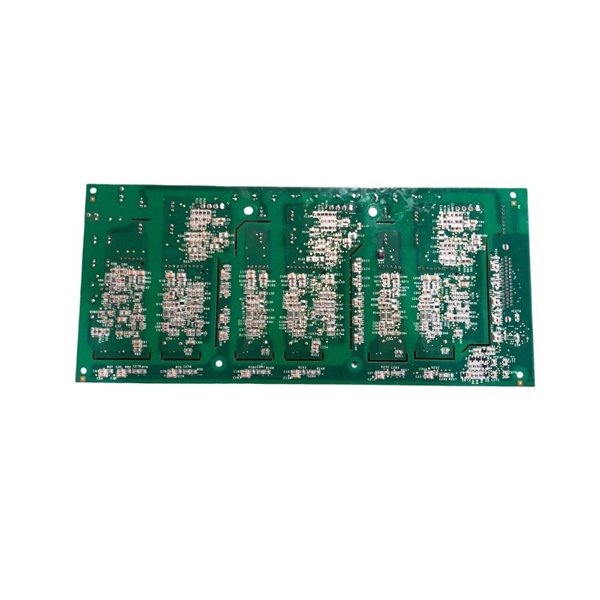

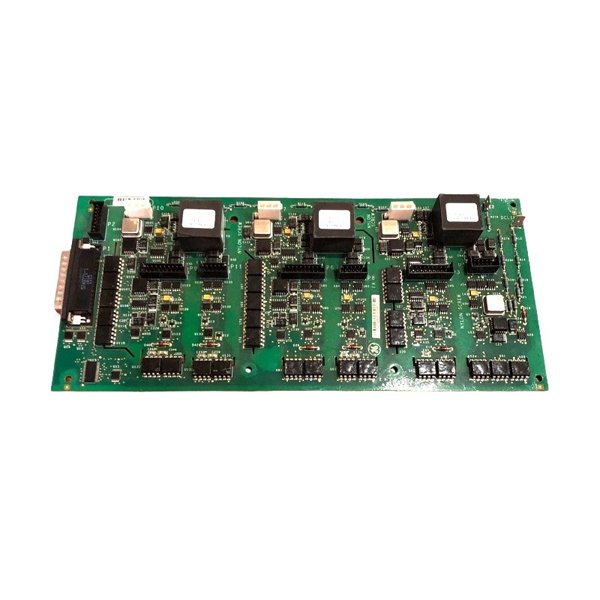

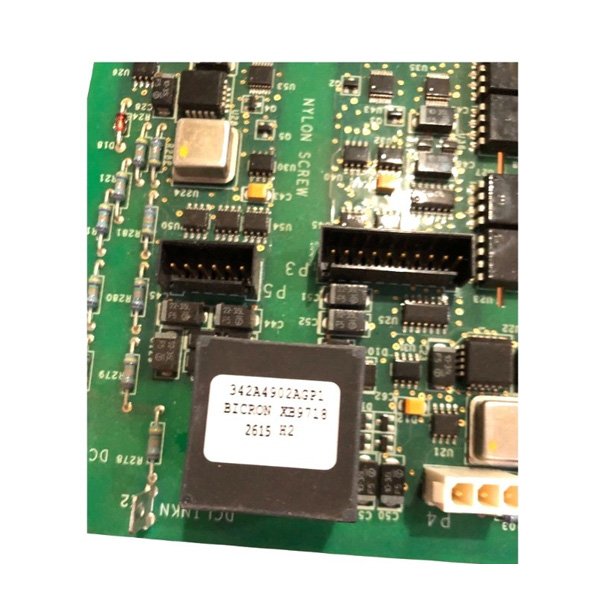

General Electric IS210AEBIH3B AE Bridge Interface

The GE IS210AEBIH3B AE Bridge Interface is a high-performance signal interface device designed for integration with GE’s advanced machinery protection and monitoring systems. It enables precise acquisition and transmission of acoustic emission (AE) signals from sensors to monitoring units, ensuring accurate diagnostics of mechanical equipment. The product is particularly suited for high-speed rotating machinery, offering reliable signal fidelity under challenging industrial conditions.

Product Advantages

• High Signal Fidelity: Maintains the integrity of AE signals during transmission for precise monitoring and fault detection.

• Robust Industrial Design: Built to withstand harsh industrial environments, including electrical noise and temperature fluctuations.

• Flexible Integration: Compatible with multiple GE monitoring systems for seamless installation and operation.

• Real-Time Monitoring: Supports continuous signal transmission for immediate detection of equipment anomalies.

• Scalable Architecture: Can be deployed across multiple machinery units, facilitating centralized monitoring.

• Enhanced Safety: Reduces the risk of undetected mechanical failures, enhancing operational safety and reliability.

Technical Specifications

Applications

• Rotating machinery fault detection (turbines, compressors, pumps)

• Vibration and acoustic monitoring of industrial equipment

• Predictive maintenance systems

• Early warning systems for mechanical faults

• Integration with GE Bently Nevada monitoring solutions

FAQ

1. Q: Can the IS210AEBIH3B interface handle multiple AE sensors simultaneously?

   A: Yes, it supports 4–8 AE sensor channels depending on configuration.

2. Q: What types of output signals does the device provide?

   A: It provides both analog and digital outputs compatible with GE monitoring units.

3. Q: Is the device compatible with Ethernet communication?

   A: Yes, an optional Ethernet module allows for network integration.

4. Q: What is the maximum operating temperature for reliable performance?

   A: The interface operates reliably up to 70°C.

5. Q: Can the device be integrated into existing Bently Nevada systems?

   A: Yes, it is fully compatible with standard GE machinery protection systems.

6. Q: What is the frequency response range of the AE signals?

   A: The device supports a frequency range of 20 kHz to 1 MHz.

7. Q: Does the interface maintain signal integrity under electrical noise?

   A: Yes, it is designed with high SNR (>70 dB) to reduce noise interference.

8. Q: Can the output be monitored in real-time?

   A: Yes, the interface supports continuous real-time monitoring.

9. Q: What is the operating voltage range?

   A: The device operates at 24 V DC.

10. Q: Does the device support predictive maintenance applications?

    A: Yes, it is optimized for integration into predictive maintenance systems for rotating machinery.
