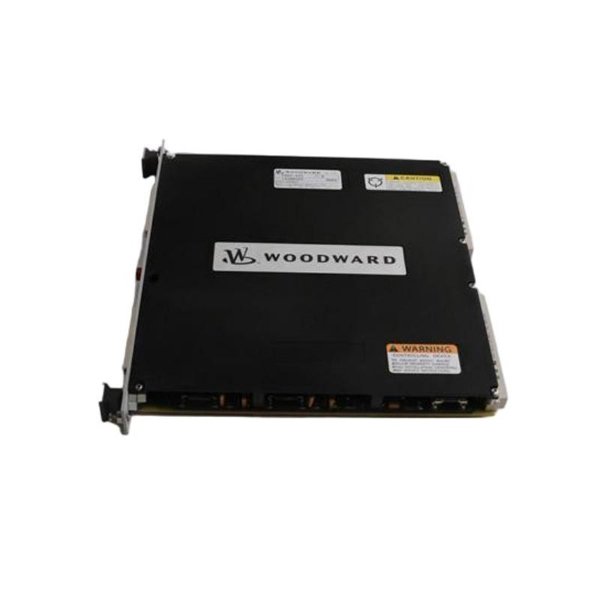

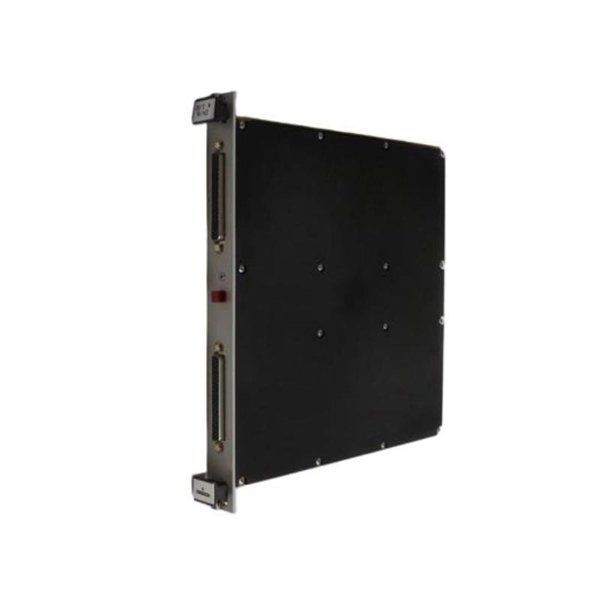

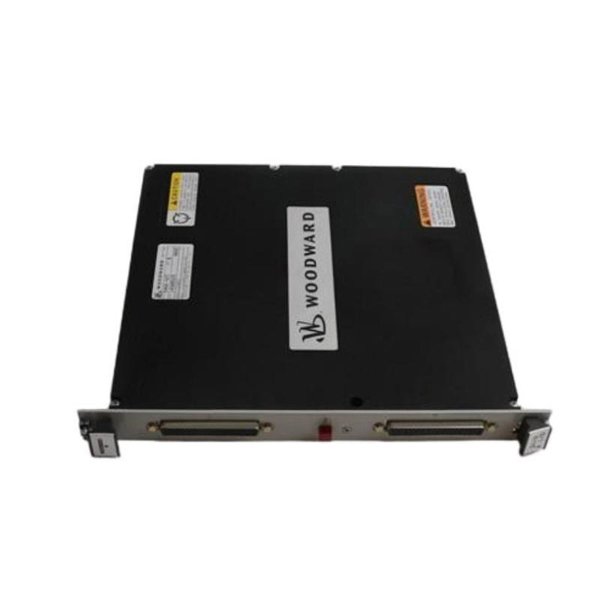

Woodward 5466-425D Analog I/O Modules
Manufacturer:Woodward
Product Number:5466-425D
Product Type:Analog I/O Modules
Origin:USA
Dimensions:180 × 120 × 25 mm
Weight:0.6kg
Views:32
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Woodward 5466-425D Analog I/O Module is a versatile and robust component designed to support both analog input and output functions within industrial control systems. Specifically engineered for compatibility with Woodward’s MicroNet™ and NetCon™ platforms, this module enhances process control by providing precise measurement and actuation capabilities for a wide range of industrial applications, including energy, power generation, and heavy machinery automation.
Key Features
-
Combined analog input and output functionality in one module
-
High-resolution 12-bit or 16-bit A/D and D/A conversion
-
Individually configurable channels
-
Fast signal response and processing
-
Electrical isolation for signal integrity and system protection
-
Easy installation in rack-based systems
-
Designed for mission-critical control applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 5466-425D |
| Module Type | Analog Input/Output Module |
| Number of Channels | Configurable mix of analog inputs and outputs |
| Input Signal Range | ±10 V, 0–10 V, 4–20 mA (typical) |
| Output Signal Range | 0–10 V, 4–20 mA (typical) |
| Resolution | 12-bit or 16-bit (depending on system configuration) |
| Input Accuracy | ±0.1% of full scale |
| Output Accuracy | ±0.2% of full scale |
| Isolation | Channel-to-bus isolation |
| Status Indicators | Channel and fault LEDs |
| Mounting Style | Rack-mounted |
| Diagnostics | Self-diagnostics and channel fault detection |
| Dimensions | 180 × 120 × 25 mm |
| Weight | 0.6 kg |
| Operating Temperature | –40 °C to +70 °C |
| Storage Temperature | –55 °C to +85 °C |
| Designed For | Woodward MicroNet™ and NetCon™ control platforms |
| Country of Manufacture | United States of America |
Industry Applications
-
Turbine and engine control
-
Power generation systems
-
Oil and gas process management
-
Water and wastewater control systems
Frequently Asked Questions (FAQ)
-
What does the 5466-425D module do?
It provides both analog input and output capabilities for industrial control systems.
-
Can the channels be configured individually?
Yes, channels can be set as input or output depending on system requirements.
-
Which systems is this module compatible with?
It is compatible with Woodward’s MicroNet™ and NetCon™ platforms.
-
What type of signals does it handle?
It handles standard voltage (e.g., 0–10 V, ±10 V) and current (e.g., 4–20 mA) signals.
-
Does it provide signal isolation?
Yes, electrical isolation is provided to ensure system protection and signal integrity.
-
How is it mounted?
It is rack-mounted within Woodward system chassis.
-
What is its accuracy?
±0.1% for input and ±0.2% for output signals.
-
Are diagnostic features included?
Yes, it includes self-diagnostics and channel fault detection.
-
What is its operating temperature range?
–40 °C to +70 °C.
-
Is it field-upgradable?
Configuration options may allow updates; consult system documentation.
