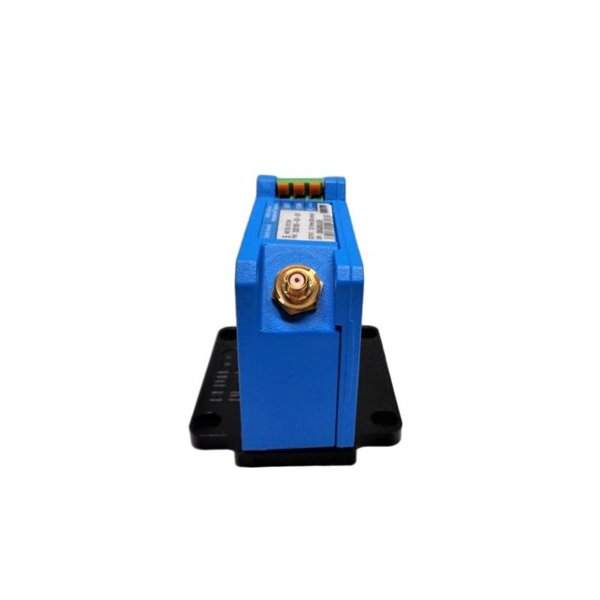

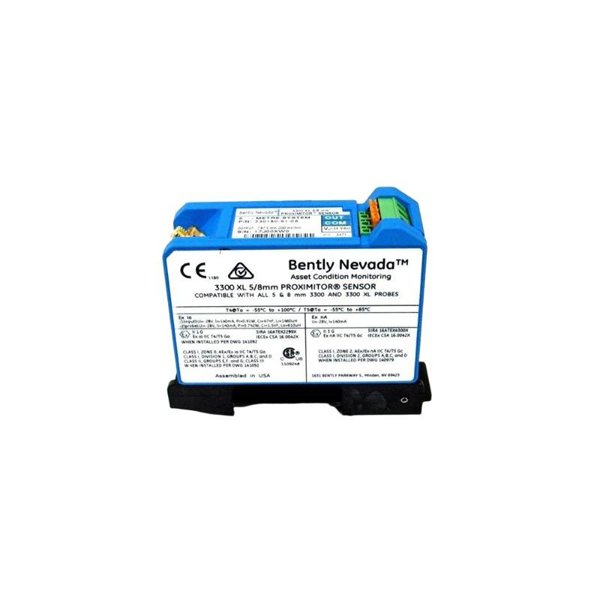

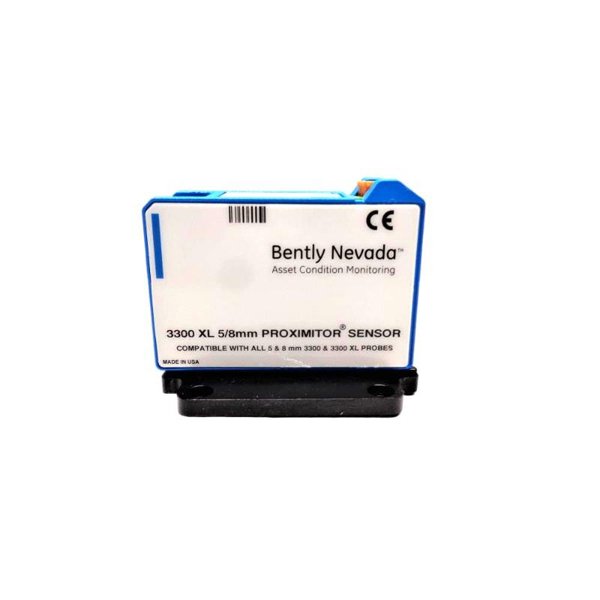

Bently Nevada 330180-X1-00 285447-00 3300 XL 8mm Proximity Sensor

The Bently Nevada 330180-X1-00 285447-00 3300 XL 8mm Proximity Sensor is a vital component for industrial monitoring systems, offering high precision and durability for machinery health monitoring applications. Part of the renowned 3300 XL series, this sensor is designed to provide real-time vibration and displacement measurements in rotating machinery such as motors, compressors, turbines, and pumps.

Designed for non-contact measurement, the 8mm proximity range makes it ideal for detecting displacement and vibration without physically touching the equipment being monitored, which extends the sensor’s lifespan and minimizes wear on both the sensor and monitored machinery. Its compact dimensions of 81.3 × 35.1 × 63.5 mm and a weight of 0.246 kg allow for easy integration into confined spaces without compromising on performance.

This sensor is built to operate in extreme environments, with an operating temperature range of -40°C to +85°C and an IP67 protection rating, ensuring that it can perform reliably even in harsh industrial settings, such as power generation plants, oil and gas facilities, and heavy manufacturing industries.

Product Parameters

Product Applications

1. Rotating Machinery Monitoring: The 3300 XL 8mm Proximity Sensor is commonly used in condition monitoring systems for industrial rotating equipment. It is particularly useful for motors, pumps, compressors, and turbines, where it detects early signs of misalignment, imbalance, and bearing wear, helping operators prevent costly failures.

2. Predictive Maintenance: The sensor plays an essential role in predictive maintenance systems, where real-time data is collected and analyzed to predict equipment failures before they occur. By accurately measuring displacement and vibration, it enables maintenance teams to schedule repairs and replacements based on data-driven insights.

3. Power Generation: In the power generation industry, this sensor is used to monitor generators and turbines. It provides continuous, accurate measurements to help detect issues such as vibration anomalies, which can lead to costly breakdowns if left undetected.

4. Oil & Gas Industry: The sensor is also highly effective in oil and gas operations, where it is used to monitor critical assets like pumps and compressors in harsh environments. Its rugged design and ability to operate at extreme temperatures make it an ideal choice for this sector.

Product Advantages

1. Non-Contact Sensing Technology: The 8mm proximity range and non-contact measurement technology ensure that the sensor does not physically wear out, thereby extending its lifespan and reducing maintenance costs.

2. Durability in Harsh Environments: Designed with an IP67 protection rating, the sensor is dustproof and water-resistant, making it highly durable in environments exposed to extreme conditions, such as wet, dirty, and dusty factory floors or outdoor settings.

3. High Precision and Reliability: The sensor provides high-precision displacement and vibration measurements, making it highly reliable for monitoring the health of critical industrial equipment. This ensures that operators can make informed decisions and take preventive actions before failures occur.

4. Compact and Easy Integration: With its compact size of 81.3 × 35.1 × 63.5 mm and lightweight design (0.246 kg), the sensor can easily be integrated into tight spaces, offering versatility in installation and saving space in complex industrial control systems.

Frequently Asked Questions (FAQ)

1. What is the measurement range of the Bently Nevada 3300 XL 8mm Proximity Sensor?

   • The sensor measures 8mm from the target surface.

2. What are the dimensions of the Bently Nevada 3300 XL 8mm Proximity Sensor?

   • The dimensions are 81.3 × 35.1 × 63.5 mm.

3. What is the weight of the Bently Nevada 3300 XL 8mm Proximity Sensor?

   • The sensor weighs 0.246 kg.

4. What is the signal output of the sensor?

   • The sensor provides a DC voltage output, which can be used for direct measurement or integrated into a broader system.

5. What is the operating temperature range of the Bently Nevada 3300 XL 8mm Proximity Sensor?

   • The sensor operates efficiently within a temperature range of -40°C to +85°C.

6. How does the proximity sensor measure displacement?

   • The sensor uses non-contact proximity technology to measure displacement accurately, without causing any physical damage to the machinery or sensor itself.

7. What industries are best suited for using this sensor?

   • The 3300 XL 8mm Proximity Sensor is used in industries such as power generation, oil and gas, automotive, mining, and manufacturing.

8. Can the sensor be used in hazardous environments?

   • Yes, with its IP67 protection rating, the sensor is dustproof and water-resistant, making it suitable for use in harsh and hazardous environments.

9. How is the sensor mounted?

   • The 3300 XL 8mm Proximity Sensor is designed for direct mounting, making installation easy and convenient for users.

10. What is the primary purpose of this sensor?

    • The primary purpose of the 3300 XL 8mm Proximity Sensor is to monitor the vibration and displacement of rotating machinery, providing critical insights to prevent downtime and equipment failure.
