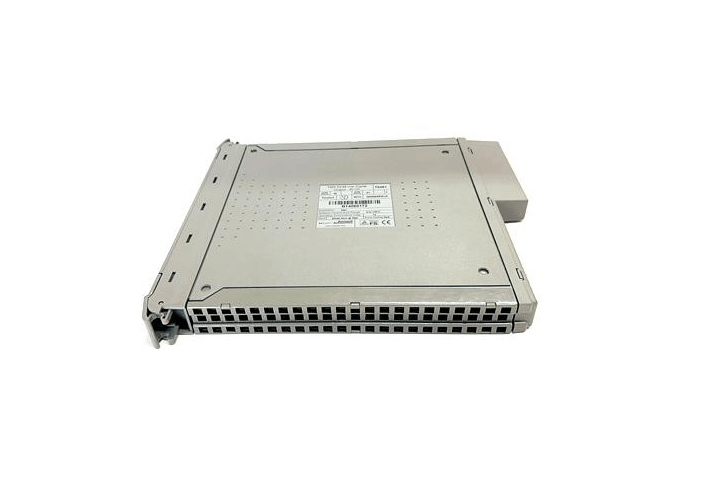

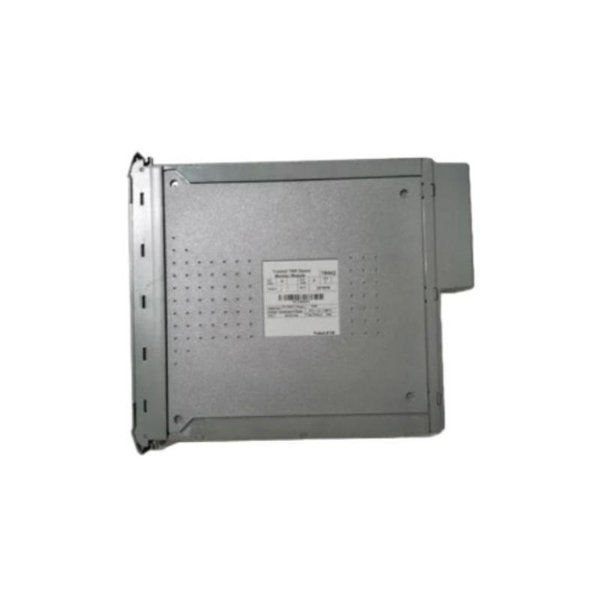

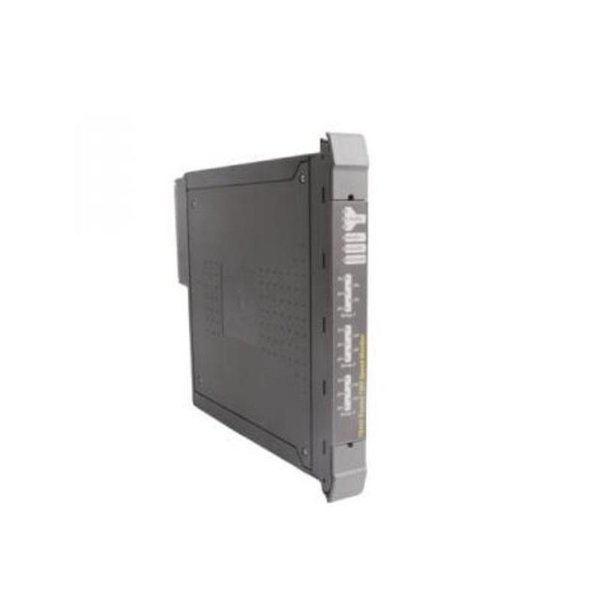

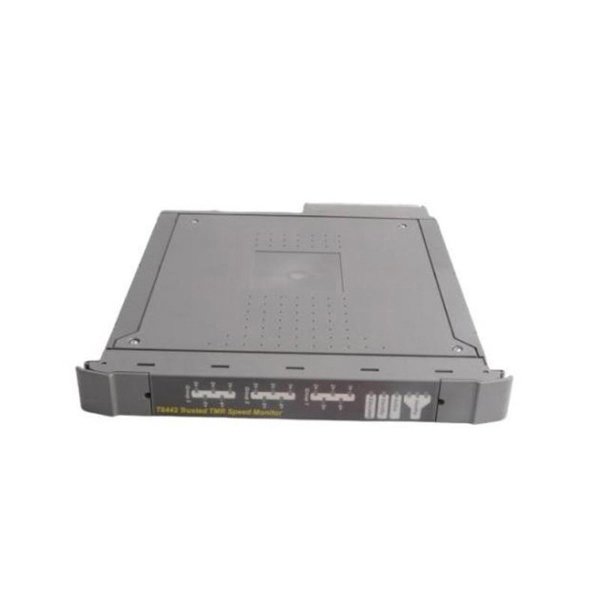

ICS Triplex T8442 Trusted TMR Speed Monitor Module

The ICS Triplex T8442 Trusted TMR Speed Monitor Module is a crucial safety and monitoring device designed to ensure the safe and reliable operation of critical machinery, particularly in high-risk environments. This module is an essential component of the ICS Triplex Trusted series, known for its high-reliability safety systems, which are widely used in industries such as oil and gas, power generation, and chemical processing.

The T8442 Speed Monitor Module provides continuous monitoring of machinery speeds and helps to detect any anomalies or failures that may occur. It is equipped with triple-modular redundancy (TMR) architecture, which ensures a higher level of system reliability and fault tolerance. This module is designed to meet the highest safety standards, making it suitable for use in critical applications where machine speed must be closely monitored to prevent equipment damage and ensure safe operation.

Product Specifications

Product Applications

The ICS Triplex T8442 Trusted TMR Speed Monitor Module is designed for use in safety-critical environments where machinery speed must be monitored to avoid potential hazards. Some of the key applications include:

• Turbine Monitoring: Used in power generation plants to monitor turbine speeds, ensuring that any abnormal speed conditions are immediately detected and mitigated to prevent equipment damage.
• Pump Monitoring: Helps monitor pump speeds in various industrial settings, ensuring that pumps operate within their safe speed range.
• Compressor Monitoring: Used in compressor stations in the oil and gas industry to monitor the speed of compressors, ensuring they operate within safe limits to avoid mechanical failure.
• Motor Speed Monitoring: Ensures that motors in industrial plants are functioning properly and that their speed does not exceed operational limits.
• Critical Equipment Monitoring: Installed in equipment such as gas turbines, water turbines, and critical machinery in refineries to ensure safe operational speeds and avoid catastrophic failures.
• Hazardous Locations: Suitable for use in hazardous environments like chemical plants, oil rigs, and offshore platforms, where equipment failures could lead to serious safety issues.

Advantages

1. Triple-Modular Redundancy (TMR): The T8442 is built on a TMR architecture, ensuring high fault tolerance and system reliability. In the event of a fault in one channel, the system continues to operate normally using the remaining channels.
2. Real-Time Monitoring: It provides real-time speed monitoring of critical machinery, alerting operators to abnormalities as soon as they arise.
3. Safety Certified: The module meets IEC61508 SIL 3 safety standards, ensuring it provides a high level of functional safety for critical applications.
4. Wide Operating Temperature Range: The T8442 operates within a broad temperature range of -20°C to +60°C, making it suitable for use in diverse environments.
5. Compact Design: The module’s compact size (266 x 31 x 303 mm) allows for easy integration into existing control systems, even in space-constrained environments.
6. Flexible Input Options: The module supports a variety of input types, including 4-20mA and pulse inputs, providing flexibility in how it interfaces with other equipment.
7. High Reliability: Designed with high-reliability components, the T8442 is capable of delivering accurate and consistent results in mission-critical environments.
8. Clear Status Indicators: Equipped with LED indicators for status, fault, and alarm conditions, the module allows operators to quickly assess the health of the system.
9. Versatile Output Options: The T8442 has digital alarm outputs and form C relay contacts for flexible integration into monitoring and control systems.
10. Easy Installation: The T8442 is designed for DIN rail mounting, making it easy to install in standard control panels.
