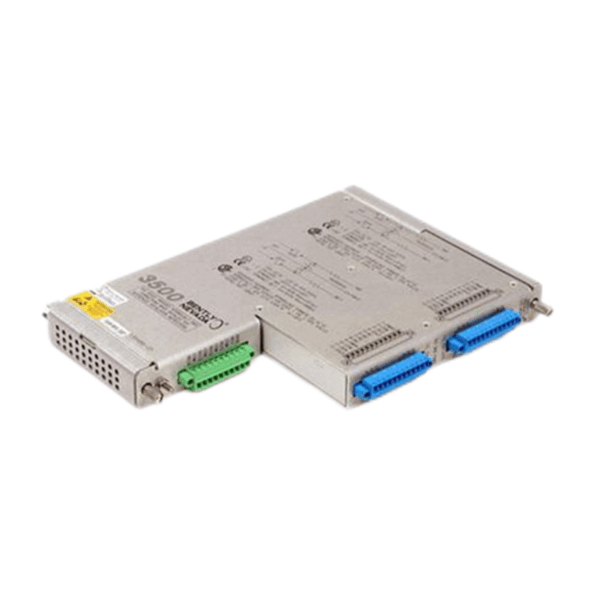

Bently Nevada 3500/40M-03-00 135489-04 Pre-Amplifier I/O Module

The Bently Nevada 3500/40M-03-00 135489-04 Pre-Amplifier I/O Module is a crucial component of the Bently Nevada 3500 Series machinery monitoring system. It plays a pivotal role in amplifying and conditioning the signals from vibration, proximity, and acceleration transducers, which are vital for the accurate assessment of machinery health. This module is essential for the early detection of mechanical faults such as imbalance, misalignment, and bearing wear, providing critical data for preventive and predictive maintenance strategies.

The 3500/40M-03-00 is engineered with high-performance signal conditioning and amplification capabilities, ensuring that high-quality, accurate signals are sent to the system for real-time monitoring. Its compact design and reliable performance in challenging industrial environments make it ideal for use in applications that require precise machinery condition monitoring, including turbines, compressors, pumps, motors, and other critical rotating machinery.

With an operating temperature range of -40°C to +70°C and weighing just 0.2 kg, this module is designed to be robust yet lightweight, offering an efficient solution for system integration and operation in space-constrained environments.

Product Parameters

The technical specifications of the Bently Nevada 3500/40M-03-00 135489-04 Pre-Amplifier I/O Module are as follows:

Product Applications

The 3500/40M-03-00 Pre-Amplifier I/O Module is designed for a wide range of industrial applications where precise signal conditioning and amplification are essential. Its typical applications include:

1. Turbine Monitoring: Used in turbine monitoring systems to amplify and condition signals from vibration sensors, allowing for early detection of imbalance, misalignment, and bearing issues.

2. Compressor Monitoring: The module conditions signals from proximity and vibration transducers, helping to detect faults like cavitation, misalignment, and excessive wear before they lead to equipment failure.

3. Pump Systems: In pumps, the pre-amplifier ensures that transducer signals are conditioned and amplified to detect early signs of mechanical problems such as cavitation or misalignment.

4. Motor Monitoring: Used to monitor motors, the module amplifies signals from vibration and proximity sensors to detect problems like bearing wear or imbalance that could affect performance and longevity.

5. Power Generation: Essential in power plants for monitoring critical machinery such as turbines and generators, providing early detection of issues to prevent unplanned shutdowns.

6. Heavy Industrial Machinery: Applied across various industrial machinery systems, the 3500/40M-03-00 helps ensure smooth operation and supports condition-based maintenance strategies by amplifying key sensor data.

Product Advantages

1. High-Precision Signal Conditioning: The 3500/40M-03-00 module provides high-gain amplification and advanced signal conditioning, ensuring the accurate transmission of data for machinery health monitoring.

2. Compact and Lightweight Design: With dimensions of 241.3 x 24.4 x 99.1 mm and weighing only 0.2 kg, the module is compact enough to be installed in tight spaces, making it a great choice for space-constrained environments.

3. Energy Efficient: Consuming only 5W of power, the module offers an energy-efficient solution for continuous machinery monitoring without excessive power demand.

4. Wide Temperature Range: The 3500/40M-03-00 operates in extreme temperatures from -40°C to +70°C, making it suitable for harsh industrial environments where temperature fluctuations are common.

5. Easy Integration with 3500 Series: Fully compatible with the Bently Nevada 3500 Series of modules, the 3500/40M-03-00 integrates seamlessly into existing machinery health monitoring systems.

6. Enhanced Diagnostics: By amplifying and conditioning signals, the module enhances the accuracy and reliability of diagnostics, enabling early identification of mechanical issues before they cause significant damage.

7. Reduced Downtime: Early detection of issues allows for predictive maintenance, which helps avoid unplanned downtime and improves the overall reliability and availability of machinery.

8. Robust for Harsh Environments: The module’s durable construction ensures that it will perform reliably even in environments with high humidity, vibration, and temperature extremes.

9. Versatile Application: The module works with a wide variety of transducers, including vibration, proximity, and acceleration sensors, making it suitable for many different machinery monitoring applications.

FAQs

1. What is the main function of the Bently Nevada 3500/40M-03-00 Pre-Amplifier I/O Module?

   The module amplifies and conditions signals from vibration, proximity, and acceleration transducers, providing reliable data for machinery health monitoring.

2. What types of transducers are compatible with the 3500/40M-03-00?

   The module is compatible with vibration, proximity, and acceleration transducers, providing flexible signal conditioning for various machinery applications.

3. What is the temperature range for the 3500/40M-03-00?

   The module operates within a temperature range of -40°C to +70°C, making it suitable for use in extreme industrial environments.

4. What is the input signal type for the 3500/40M-03-00?

   The module accepts signals from vibration, proximity, and acceleration transducers to monitor machinery conditions.

5. What is the power supply requirement for the 3500/40M-03-00?

   The module requires a 24V DC power supply with a tolerance of ±20%.

6. What is the power consumption of the 3500/40M-03-00?

   The module consumes 5W of power, providing an energy-efficient solution for continuous machinery monitoring.

7. How is the 3500/40M-03-00 mounted?

   The module is rack-mounted and is fully compatible with the Bently Nevada 3500 Series.

8. What is the weight of the 3500/40M-03-00?

   The module weighs only 0.2 kg, making it lightweight and easy to install.

9. Can the 3500/40M-03-00 be used in power generation systems?

   Yes, the module is commonly used in power plants to monitor critical equipment like turbines and generators, ensuring reliable performance.

10. How does the 3500/40M-03-00 help with predictive maintenance?

    By amplifying and conditioning sensor signals, the module helps detect issues early, enabling proactive maintenance to prevent unplanned downtime.
