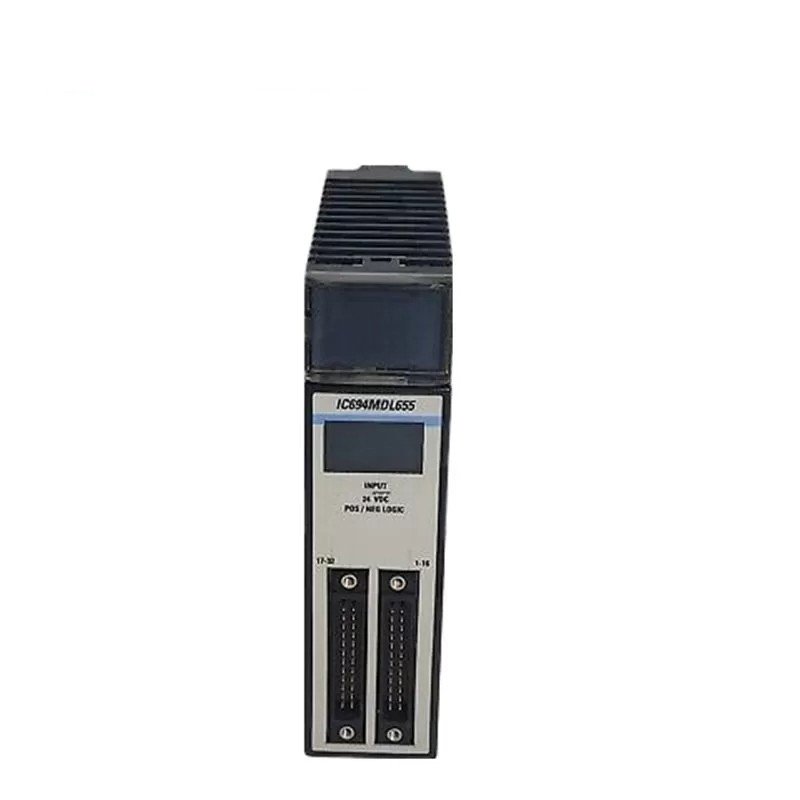

GE Fanuc IC694MDL655 Digital Input Module

The IC694MDL655 is a high-performance digital input module designed for seamless integration with the GE Fanuc RX3i Series PLCs. It efficiently reads discrete inputs from various field devices like limit switches, push buttons, and proximity sensors, ensuring reliable and accurate data acquisition.

Key Features

• 32 Input Points: Monitor up to 32 discrete inputs, providing robust input capabilities.
• 24 VDC Power Supply: Operates on a standard 24 VDC supply, widely used in industrial systems.
• Positive/Negative Logic: Supports both positive and negative logic for flexible system design.
• Isolated Inputs: Four isolated groups of eight inputs enhance noise reduction and system reliability.
• High Input Voltage Range: Tolerates 0 to +30 VDC, offering protection against voltage spikes.
• Low Power Consumption: Consumes minimal power, reducing heat and extending PLC lifespan.

Technical Specifications

• Number of Inputs: 32
• Input Type: Digital
• Voltage: 24 VDC
• Logic: Positive/Negative
• Isolation: 4 isolated groups of 8
• Input Current: 7 mA per input
• Input Voltage Range: 0 to +30 VDC
• Power Consumption:
  • 195 mA from 5V bus
  • 224 mA from 24V supply

Applications

The IC694MDL655 module excels in various industrial automation applications, including:

• Machine Control: Enhances control precision in manufacturing environments.
• Process Control: Ensures accurate monitoring of critical process parameters.
• Material Handling: Streamlines operations in logistics and material management.
• Packaging: Supports automated packaging systems with reliable input detection.
• Automotive: Integrates smoothly into automotive manufacturing and assembly lines.
