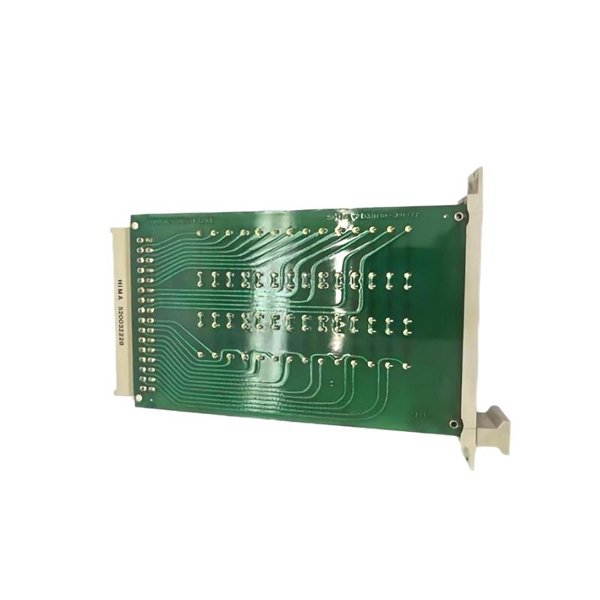

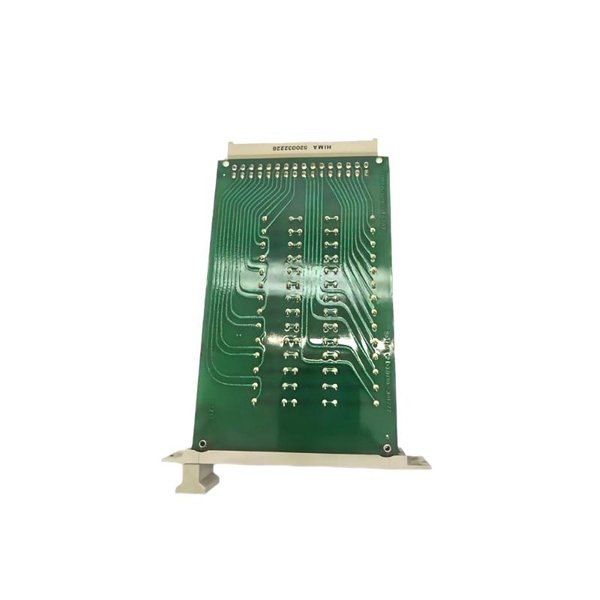

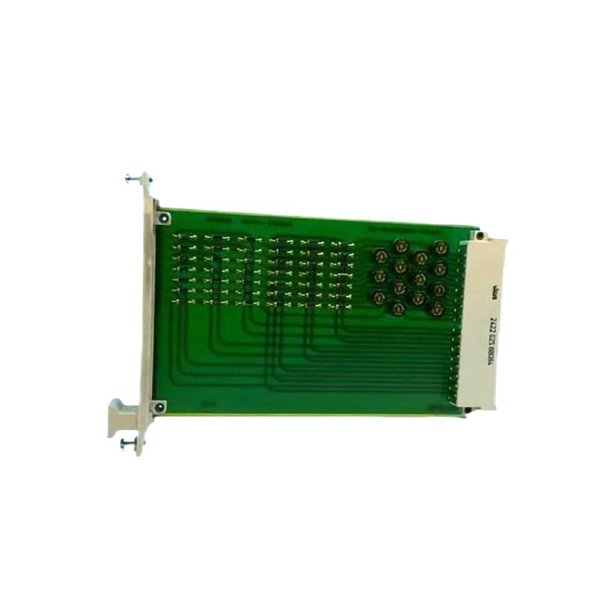

Hima F4203 Safety Related Diode Pre-Unit

The HIMA F4203 is a safety-related diode pre-unit designed specifically for use in high-integrity safety systems where controlled energy direction and signal isolation are essential. Engineered to function reliably in critical environments, the F4203 enables decoupling of redundant power supplies or signal lines and ensures that fault conditions such as back-feed or short circuits do not propagate across safety channels.

This module is an integral component in functional safety architectures, particularly within SIL-rated systems (up to SIL3), and is widely used in energy decoupling scenarios. The F4203 offers passive operation with extremely low failure probability, no active electronics, and no software—making it ideal for safety-critical installations in industries like oil & gas, chemicals, energy, and pharmaceuticals.

Product Specifications

Product Applications

The HIMA F4203 is tailored for a range of high-reliability applications, specifically where energy separation and voltage isolation are required to protect critical systems. Common application areas include:

• Power Supply Decoupling: In redundant power supply configurations to prevent reverse current flow.

• Signal Path Protection: For isolating analog or digital signals between control modules.

• Safety Loop Isolation: Preventing faults from affecting downstream or adjacent safety circuits.

• Hazardous Area Isolation: Protecting safety-critical barriers and I/O modules.

• Redundant Logic Decoupling: Ensuring independent operation of safety CPUs or safety relays.

Product Advantages

• SIL3 Certified: Fully compliant with IEC 61508 for functional safety up to SIL3.

• Passive and Maintenance-Free: No active electronics—extremely reliable with minimal failure points.

• Redundancy Friendly: Ideal for dual-power systems and fail-safe isolation requirements.

• Thermal and Electrical Robustness: Withstands wide temperature ranges and voltage variations.

• Compact Form Factor: Space-saving design suitable for dense cabinet installations.

• No Configuration Needed: Plug-and-play operation, simplifying commissioning.

• High Current Capability: Supports currents up to 5 A for demanding installations.

• Galvanic Isolation: Ensures system integrity across redundant or isolated segments.

• Long Service Life: Diode-rated for industrial continuous operation over extended periods.

• Integration Ready: Seamlessly integrates with HIMA’s HIMax, HIQuad, and Planar4 systems.

FAQ

1. What is the main purpose of the F4203 module?

   The F4203 provides diode-based isolation for power or signal lines to ensure fault-free redundancy and decoupling in safety-critical applications.

2. Is the F4203 certified for functional safety?

   Yes, it is certified for use in SIL3 applications as per IEC 61508.

3. Does the module contain any software or configurable electronics?

   No, it is a passive device with no active electronics or software—making it highly reliable.

4. Can the F4203 be used with redundant power supplies?

   Absolutely. It’s specifically designed to decouple two power sources and prevent backfeeding.

5. Is this module compatible with HIMax systems?

   Yes, it works seamlessly with HIMax, HIQuad, and Planar4 systems.

6. What is the typical voltage drop across the diode?

   The typical forward voltage drop is 0.7 V.

7. Can this module be mounted on standard DIN rails?

   Yes, it is DIN rail mountable, facilitating standard control panel integration.

8. Is any maintenance required during its lifetime?

   No, the F4203 is passive and maintenance-free under normal operating conditions.

9. How many channels does the F4203 support?

   It is a single-channel module designed for one line of decoupling.

10. Does it provide any LED indication or diagnostics?

    No, since it is passive, there are no LEDs or diagnostics on the unit.
