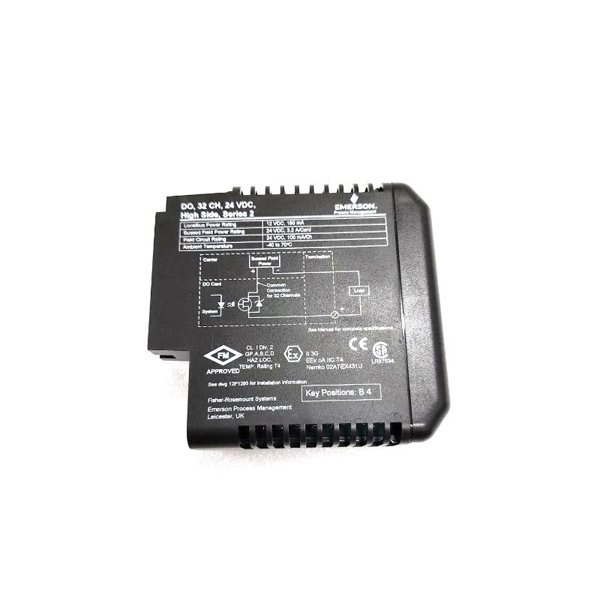

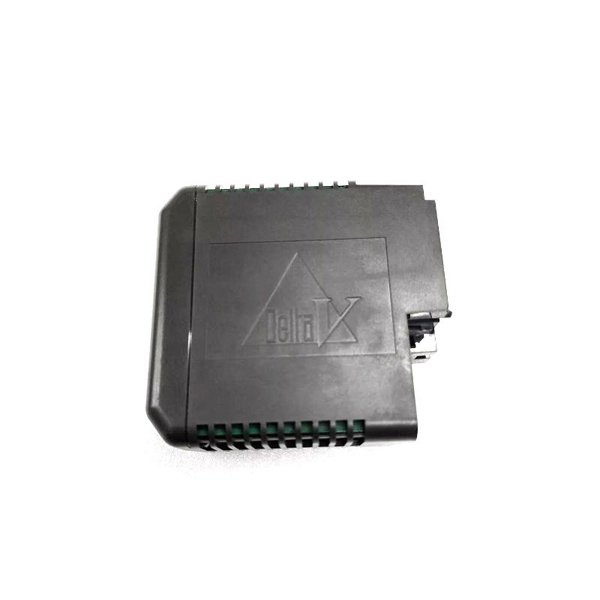

Emerson KJ3204X1-BA1 12P3275X032 Discrete Output Module

The Emerson KJ3204X1-BA1 12P3275X032 Discrete Output Module is an integral part of Emerson’s DeltaV™ distributed control system (DCS). Designed for industrial environments, this module facilitates precise and reliable control of various discrete field devices such as relays, solenoids, actuators, and other digital devices. It is a robust and high-performance module that helps optimize plant operation and reduce downtime by providing superior control, monitoring, and diagnostic capabilities.

Product Specifications

Applications

The Emerson KJ3204X1-BA1 12P3275X032 Discrete Output Module is used across a variety of industries where precise, reliable control of discrete outputs is critical. These applications include:

• Process Control: Controlling relays, solenoids, and actuators in process plants.

• Manufacturing Systems: Used in automated control of machines and conveyors.

• Oil & Gas Industry: Integrated into wellhead control systems and pipeline monitoring.

• Power Generation: Enabling control of circuit breakers, pumps, and other discrete devices.

• Chemical Processing: Used for controlling valves and other automated process equipment.

Advantages

• High Performance: Offers stable and reliable control, ensuring the continuous operation of plant systems.

• Space-Efficient Design: Compact and easy to integrate into existing control systems.

• Enhanced Diagnostics: Provides real-time diagnostic information, allowing for quicker troubleshooting and reducing downtime.

• Versatility: Capable of supporting a wide range of field devices, making it highly versatile for different applications.

• Reduced Maintenance Costs: Durable and low-maintenance design, resulting in lower operational costs.

FAQ

1. What is the primary function of the Emerson KJ3204X1-BA1 Discrete Output Module?

   The primary function is to control digital output devices such as relays, actuators, and solenoids in industrial control systems.

2. How many output channels does the module support?

   The module supports up to 16 output channels.

3. What is the operating voltage of the KJ3204X1-BA1 module?

   The module operates with a 24V DC power supply.

4. What are the dimensions of the module?

   The module dimensions is 160 x 130 x 50 mm.

5. What is the weight of the module?

   The weight of the module is 0.181 kg.

6. What type of communication does this module use?

   The module uses HART (Highway Addressable Remote Transducer) communication protocol.

7. What is the temperature range for the module’s operation?

   The operating temperature range is -20°C to +60°C.

8. What industries benefit from using the Emerson KJ3204X1-BA1 module?

   Industries such as oil & gas, power generation, chemical processing, and manufacturing benefit from this module’s capabilities.

9. What is the IP rating of the module?

   The module has an IP20 environmental rating.

10. What maintenance requirements are there for the module?

    The module is designed to be low-maintenance with a durable construction, minimizing downtime and maintenance costs.
