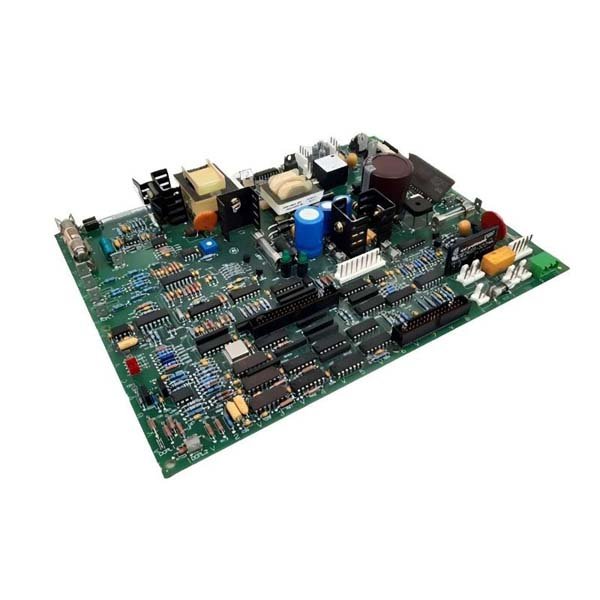

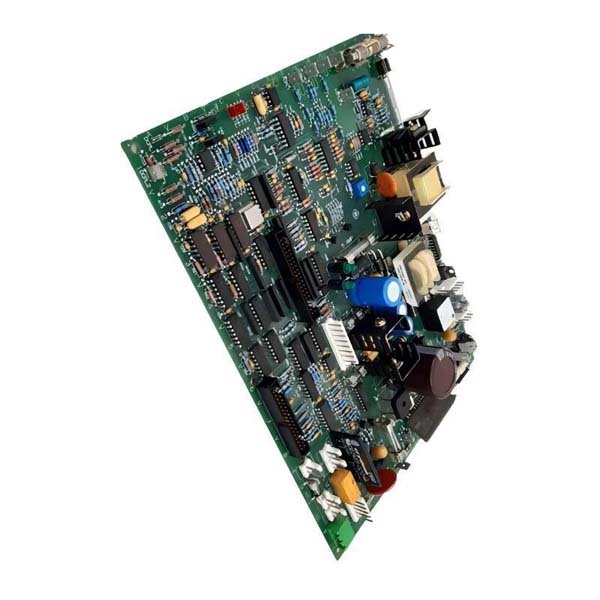

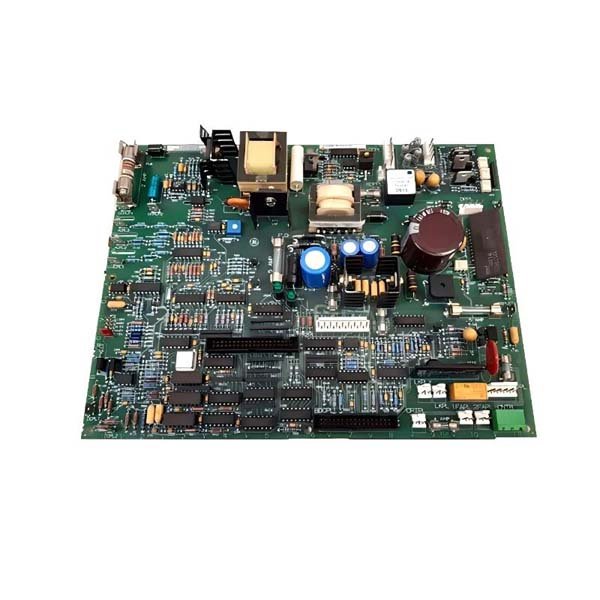

General Electric DS200IMCPG1CCA Motor Control Processor Module
Manufacturer:GE Fanuc
Product Number:DS200IMCPG1CCA
Product Type:Motor Control Processor Module
Origin:USA
Dimensions:330 × 160 × 40 mm
Weight:1.2 kg
Views:162
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The DS200IMCPG1CCA is a dedicated motor control processor designed for GE industrial drive and turbine systems. From hands-on field experience, this module excels at managing precise motor commands, monitoring I/O status, and ensuring deterministic drive performance.
Technical Specifications
| Specification | DS200IMCPG1CCA |
|---|---|
| Module Type | Motor Control Processor |
| System Compatibility | GE Mark V / Industrial Drives |
| Processor | Embedded GE ASIC + dedicated motor control DSP |
| Control Functions | Motor speed/torque regulation, digital I/O handling |
| Communication | Backplane bus, optional serial/Ethernet interface |
| Diagnostics | Status LEDs, fault logs, self-test routines |
| Power Supply | +5 VDC, +15 VDC, –15 VDC via backplane |
| Operating Temperature | 0…+60°C |
| Storage Temperature | –40…+85°C |
| Vibration Rating | Turbine-grade industrial standard |
| Dimensions (H × W × D) | 330 × 160 × 40 mm |
| Weight | ~1.2 kg |
| Mounting | Rack-mount within GE industrial chassis |
Applications
-
Industrial motor control systems requiring precise speed and torque regulation
-
Auxiliary turbine drives and pump control in power plants
-
Retrofitting older Mark V/VI drive systems
-
Safety-critical motor control where deterministic response is essential
-
Systems requiring real-time digital signal processing for drive logic
-
Integration with GE DSP-based drive architectures
Advantages
-
Real-time deterministic control ensures accurate motor operations
-
Reliable diagnostic feedback, reducing troubleshooting time
-
Robust industrial-grade design, resistant to vibration and EMI
-
Field-swappable module, minimizing system downtime
-
Smooth integration with existing GE backplane and control networks
-
Compact footprint for dense control racks
Technical FAQs
-
Does this module handle both speed and torque control?
Yes, dedicated DSP circuitry provides precise real-time regulation.
-
Are configuration parameters stored on the module?
Critical parameters are non-volatile; system settings are loaded at boot.
-
Can it operate in high-vibration turbine enclosures?
Yes, it meets GE’s turbine-grade vibration standards.
-
What diagnostics are available to field engineers?
LEDs indicate operational status, faults, and self-test results.
-
Is hot-swapping supported?
No, power must be removed before module replacement.
-
Does it support redundant operation?
Redundancy is managed at system level, not directly by the module.
-
Are all inputs optically isolated?
Yes, to prevent noise interference from adjacent systems.
-
What happens during a power failure?
The module enters a fail-safe state to protect motors and drives.
-
Is firmware field-updatable?
Yes, using GE-approved tools and procedures.
-
Can this module interface with Mark VIe controllers?
No, it is primarily intended for Mark V and legacy drive systems.
