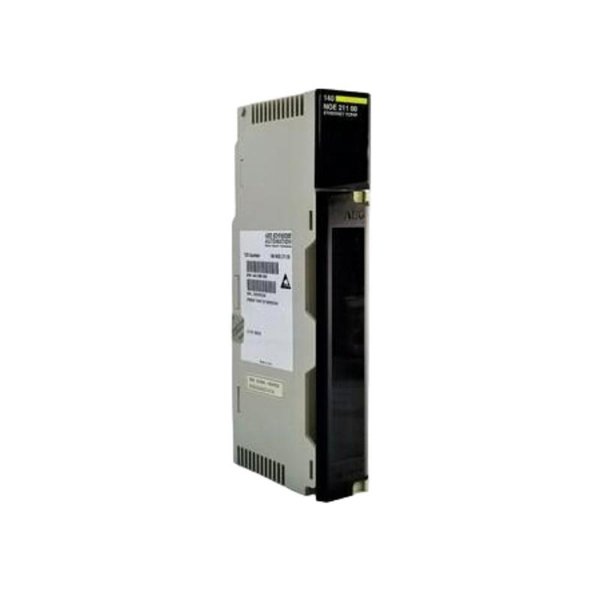

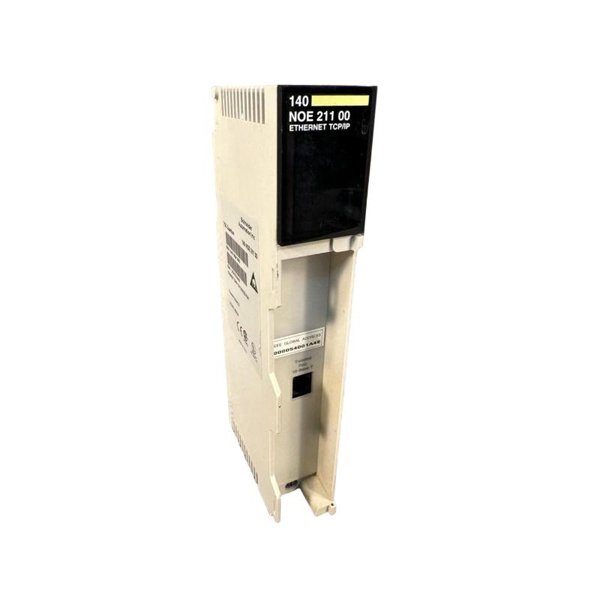

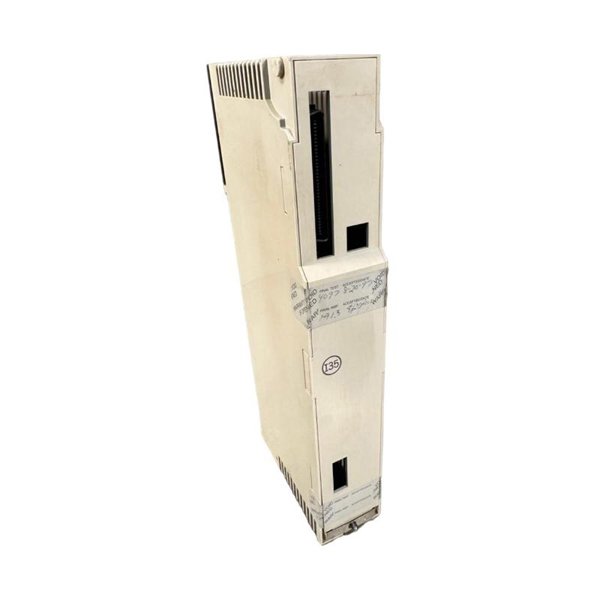

Schneider 140NOE21100C Programmable Logic Controller Module

The 140NOE21100C is a Modicon Ethernet Communication Module designed to provide high-performance communication capabilities between different network devices in a control system. This product enables seamless integration and communication within Modicon automation solutions.

The module connects the PLC (Programmable Logic Controller) to an Ethernet network, making it a vital component for industrial systems that require fast data exchange and integration with IT infrastructures. With Schneider Electric’s reputation for quality and durability, the 140NOE21100C ensures reliable and secure data transmission, optimized for mission-critical applications.

Product Specifications

Below is a detailed table of the technical specifications for the 140NOE21100C:

Product Applications

The 140NOE21100C is widely used in industrial settings that require Ethernet communication for various automation applications, such as:

1. Industrial Automation: Enables efficient communication between controllers, devices, and HMIs (Human-Machine Interfaces) in manufacturing and processing plants.

2. Building Automation: Used in systems where monitoring and control over HVAC, lighting, and other building systems is required.

3. Oil & Gas: Facilitates reliable data exchange for control systems in the oil and gas industry, where real-time data is critical.

4. Energy Management: Ideal for integrating smart grid components and communicating with energy monitoring systems.

5. Automated Warehouses: Ensures smooth communication between automated systems and central control for better inventory and order management.

6. Water Treatment Plants: Used to streamline control and monitoring of water treatment and distribution systems.

Product Advantages

The 140NOE21100C Ethernet Communication Module offers several advantages:

1. High-Speed Communication: With 10/100 Mbps Ethernet support, the module allows fast data exchange across the network.

2. Scalability: It can be easily integrated into larger systems, allowing users to scale their network as needed.

3. Reliability: Built to meet industrial standards, it ensures uninterrupted operation even in challenging environments.

4. Flexibility: The Ethernet port supports a range of devices and network configurations, making it suitable for various industrial applications.

5. Long-Term Durability: Designed to withstand extreme temperatures, vibrations, and environmental conditions.

6. Low Power Consumption: With a current consumption of only 150 mA, it is energy-efficient, reducing the overall energy consumption of your system.

7. Easy Installation: The module’s compact size and simple integration with the Modicon controllers make installation fast and straightforward.

8. Wide Temperature Range: It operates effectively in a wide temperature range, from -25°C to 70°C, which enhances its versatility in different industrial environments.

FAQ

1. What is the purpose of the Schneider 140NOE21100C module?

   • The 140NOE21100C serves as an Ethernet communication interface for Modicon PLCs, facilitating high-speed data transfer between industrial control systems and network devices.

2. How does this module integrate with other devices?

   • It connects through an RJ45 Ethernet port, enabling seamless integration into Ethernet-based control systems and communication with other devices on the network.

3. What are the main features of this Ethernet communication module?

   • The module features high-speed Ethernet communication (10/100 Mbps), wide operating temperature range, and easy integration into Modicon automation systems.

4. What is the operating voltage range of the module?

   • The module operates on 24 V DC power supply, ensuring compatibility with most industrial systems.

5. Can the 140NOE21100C be used in harsh environments?

   • Yes, it is designed to withstand extreme temperatures ranging from -25°C to 70°C and has a durable construction suitable for challenging industrial environments.

6. Is the module compatible with all Modicon controllers?

   • The 140NOE21100C is specifically designed for use with Modicon PLCs, ensuring smooth communication with other Schneider Electric automation devices.

7. What is the weight of the 140NOE21100C module?

   • The module weighs 0.498 kg, making it lightweight and easy to integrate into control panels or systems.

8. What kind of Ethernet network does the module support?

   • It supports 10/100 Mbps Ethernet networks, offering high-speed data transmission capabilities.

9. Can I use this module for remote monitoring of systems?

   • Yes, with Ethernet communication, this module can facilitate remote monitoring and control of industrial systems.

10. What are the power consumption specifications of the module?

    • The module consumes a current of 150 mA, making it energy-efficient for continuous operation.
