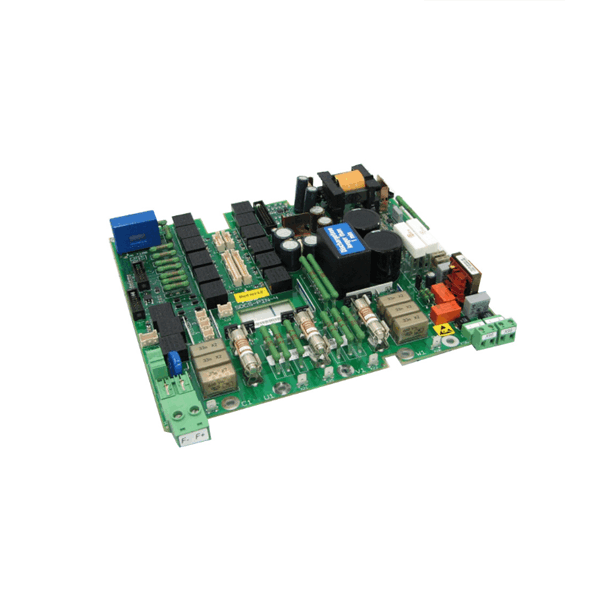

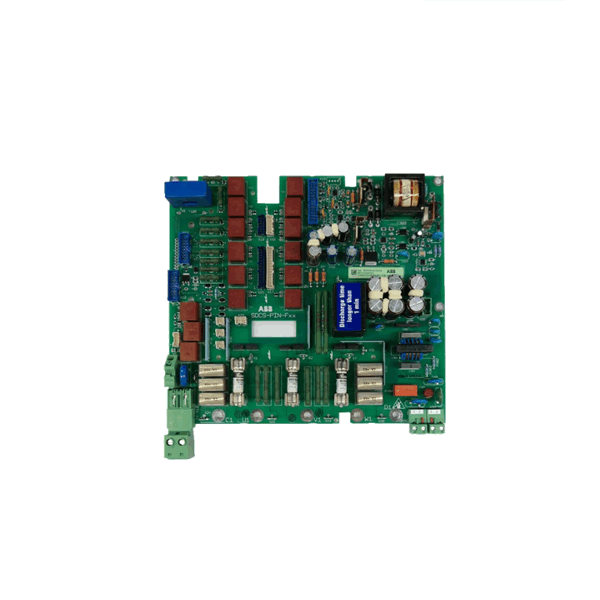

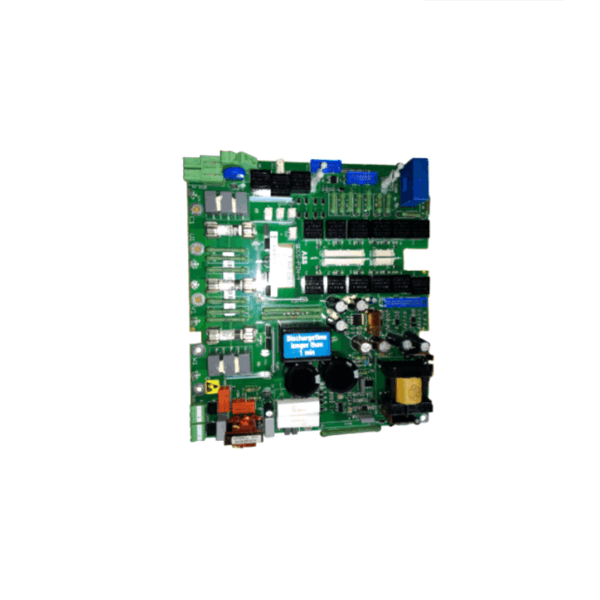

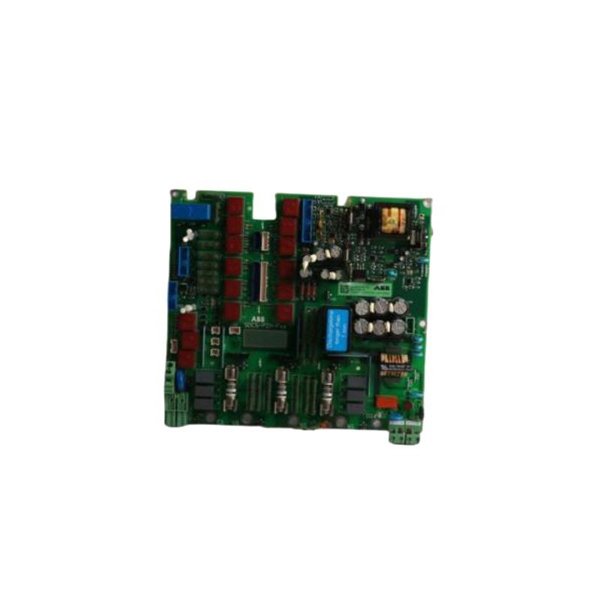

ABB SDCS-PIN-4B 3ADT316300R1510 Power interface board

As a robust component of ABB’s modular DC drive architecture, the SDCS-PIN-4B is highly valued in automation sectors requiring high reliability and accuracy in motion control.

Product Advantages

• High Compatibility: Seamlessly integrates with multiple ABB DCS drives including DCS400, DCS500, and DCS600 systems.

• Precision Feedback: Offers high-fidelity signal conversion for pulse encoders, ensuring accurate motor control.

• Compact Design: Small footprint allows installation in tight industrial control cabinets.

• Reliable Performance: Manufactured using industrial-grade components, providing stable operation in harsh environments.

• Plug-and-Play Capability: Simple wiring and plug-in mounting allow for quick installation and commissioning.

• Reduced Downtime: Enhances system diagnostic capability, enabling faster fault detection and corrective action.

Technical Specifications

Applications

• Industrial Automation: Precision control in large manufacturing setups.

• Pulp and Paper Industry: Integration in speed-critical DC motor applications.

• Metals Industry: Used in rolling mills and heavy-duty drives for closed-loop control.

• Textile Manufacturing: High-speed motor synchronization.

• Robotics and Assembly Lines: Precise positioning via pulse feedback encoders.

• Crane and Hoisting Systems: Ensures smooth start/stop and accurate positioning.

Installation Instructions

1. Power Down: Disconnect all drive power supplies before handling.

2. Identify Slot: Locate the dedicated encoder interface slot on the drive controller.

3. Insert Module: Plug the SDCS-PIN-4B board into the slot ensuring firm contact.

4. Connect Encoder: Wire the encoder signal cables to the input terminal block of the board.

5. Configure Parameters: Through drive control panel, set encoder parameters (pulses/rev, signal type).

6. Perform Diagnostics: Use built-in diagnostics to verify signal reception and encoder rotation.

7. Close Panel: Ensure safety covers are reinstalled and power is restored.

FAQs

Q1: What type of encoders are compatible with the SDCS-PIN-4B?

A1: The SDCS-PIN-4B supports both TTL and HTL type incremental encoders with differential signal outputs.

Q2: Can this module be used with non-ABB drives?

A2: It is specifically engineered for ABB DCS400, DCS500, and DCS600 drives. Use with non-ABB systems is not supported.

Q3: How do I know if the encoder is connected correctly?

A3: The drive system will show encoder signal diagnostics. Also, an incorrect wiring often results in encoder error alarms.

Q4: Is this board hot-swappable?

A4: No. Always power down the drive before inserting or removing the SDCS-PIN-4B.

Q5: What happens if the encoder signal fails?

A5: The drive enters fault mode and may stop motor operation depending on safety settings.

Q6: How many encoder channels does it support?

A6: It supports dual-channel encoder signals (A/B) and index (Z) if needed.

Q7: Does it provide galvanic isolation?

A7: Yes, there is galvanic isolation between the encoder input and the drive communication interface.

Q8: How often does this module need maintenance?

A8: Virtually maintenance-free, but it is good practice to check signal integrity annually.

Q9: Can the module be mounted externally from the drive?

A9: No, it is designed to be installed directly inside the drive controller.

Q10: What are signs of a failing encoder interface module?

A10: Common symptoms include intermittent speed feedback, random motor behavior, and encoder fault alarms.
