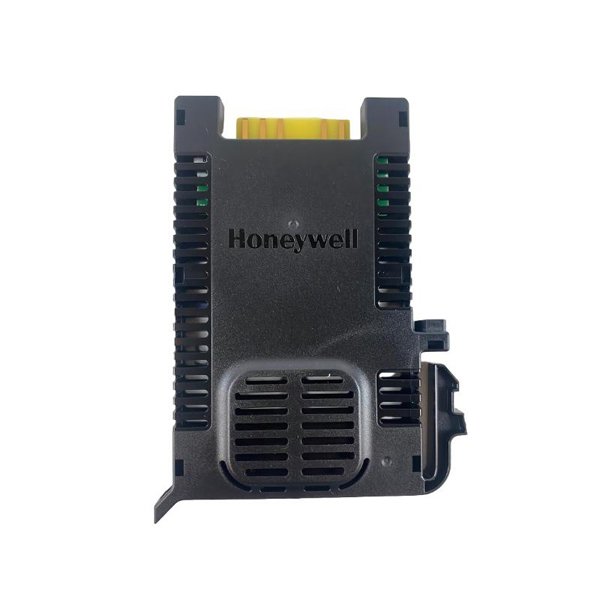

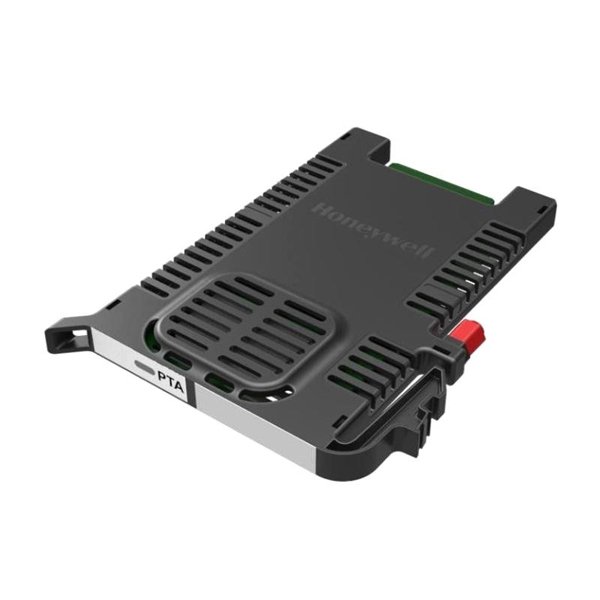

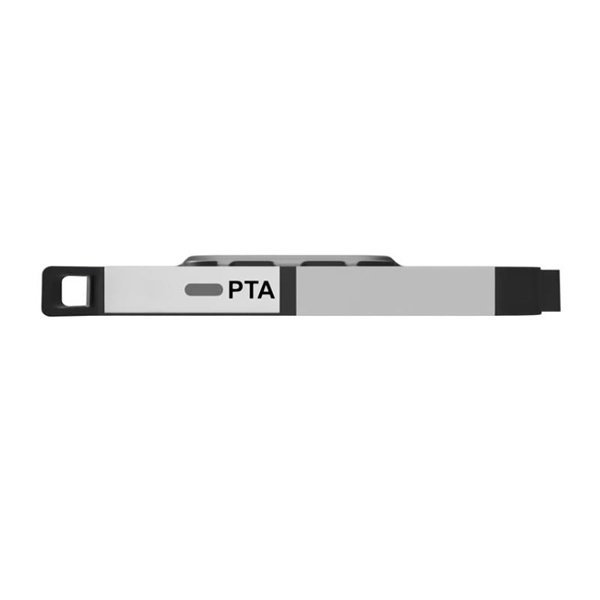

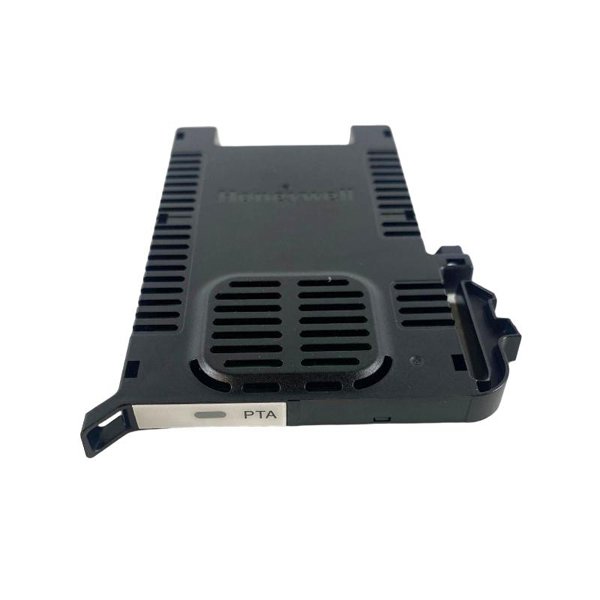

Honeywell CC-UPTA01 Universal Pass Through Adapter

The Honeywell CC-UPTA01 Universal Pass Through Adapter is an essential hardware accessory for Honeywell process control systems, designed to facilitate non-intrusive access to signal paths for diagnostics, commissioning, and troubleshooting. Its universal design enables compatibility with multiple Honeywell controller platforms, making it a versatile tool for engineers and technicians who require live signal monitoring without interrupting system operation.

This adapter operates by providing a “pass-through” connection—allowing the original control signal to continue flowing uninterrupted—while offering an additional parallel port for test instruments or analyzers. With its robust industrial-grade construction, the CC-UPTA01 is capable of performing reliably in harsh plant environments, ensuring minimal signal degradation and high electrical integrity.

Built to meet the strict performance and safety standards required in process automation, it supports both analog and digital signals, making it suitable for a wide range of maintenance and integration scenarios.

Product Parameters

Product Applications

• Live Signal Monitoring: Enables real-time observation of system signals without disrupting operations.

• System Commissioning: Facilitates verification of system behavior during initial setup.

• Fault Diagnosis: Helps maintenance teams quickly locate and analyze system issues.

• Performance Analysis: Connects data loggers for in-depth process evaluation.

• Training & Simulation: Supports safe and realistic practice in training environments.

• Integration Testing: Allows third-party devices to be connected temporarily for compatibility checks.

Product Advantages

• Non-Disruptive Operation: Maintains uninterrupted system performance during testing.

• Universal Compatibility: Works across multiple Honeywell system platforms.

• High Signal Fidelity: Maintains original signal integrity with minimal interference.

• Industrial Durability: Built to withstand vibration, temperature extremes, and humidity.

• Electrical Isolation: Protects both the system and connected diagnostic devices.

• Compact Form Factor: Easy to deploy in space-limited control panels.

• Simple Installation: Plug-and-play design for quick setup.

• Standards Compliance: Meets international safety and performance standards.

FAQ

1. What is the main function of the CC-UPTA01 Universal Pass Through Adapter?

It allows pass-through of control signals while providing an additional port for diagnostics or monitoring.

2. Can the CC-UPTA01 handle both analog and digital signals?

Yes, it is designed to support both with high signal integrity.

3. Is it compatible with Honeywell’s C300 controllers?

Yes, it is fully compatible with C300, Experion PKS, and related modules.

4. Does it require additional power to operate?

No, it is a passive device and requires no external power.

5. Is the adapter hot-swappable in live systems?

Yes, it can typically be connected and removed without powering down the system.

6. How does it ensure electrical safety during testing?

It incorporates electrical isolation to protect both the main system and test equipment.

7. Can it be used for long-term monitoring?

Yes, although it is primarily intended for temporary diagnostic access, it can be left connected if needed.

8. Is there any software required for its operation?

No software is needed; it functions purely as a hardware interface.

9. Does it work with third-party monitoring devices?

Yes, provided the devices are compatible with the system’s electrical specifications.

10. What environmental conditions can it withstand?

It operates in -20°C to +70°C with 5%–95% non-condensing humidity.
