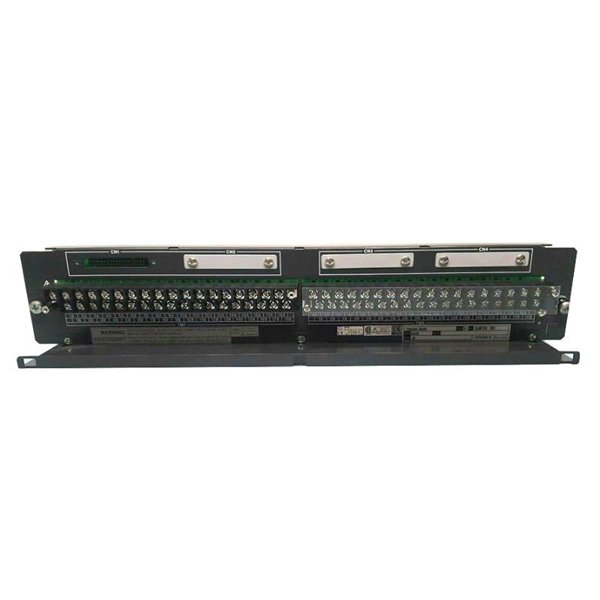

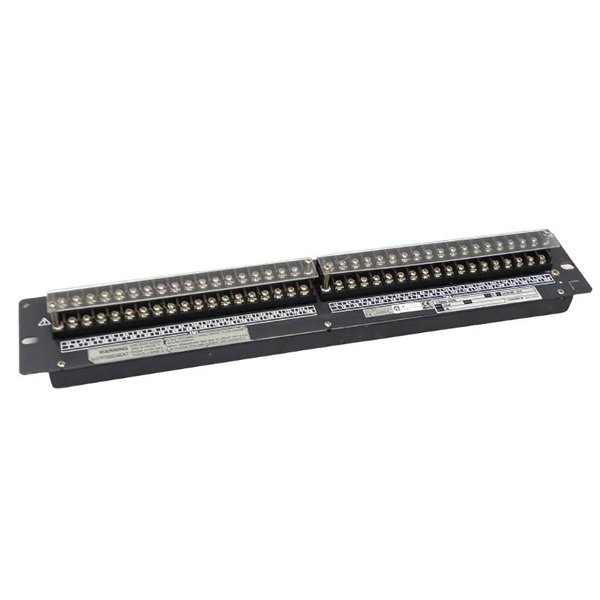

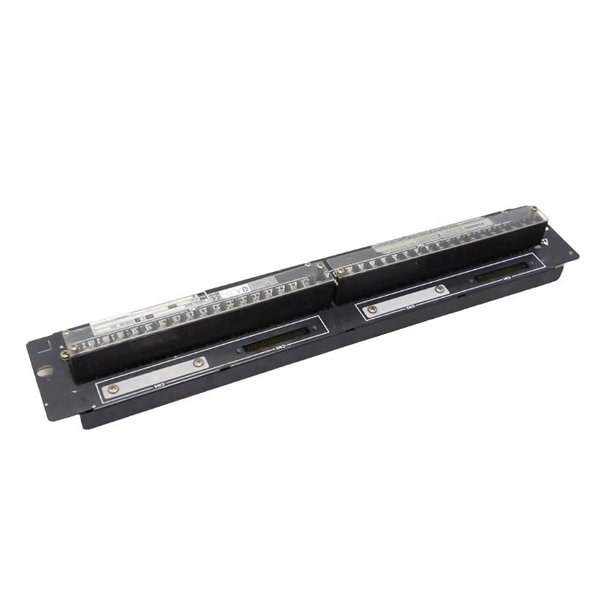

Yokogawa AEA4D-05 Analog Terminal Board

The Yokogawa AEA4D-05 Analog Terminal Board is a high-reliability analog signal interface board designed to be used in conjunction with Yokogawa’s I/O modules, particularly in the CENTUM VP and CENTUM CS 3000 distributed control systems. This terminal board serves as the physical connection point between field devices (such as sensors and transmitters) and analog input/output modules.

Featuring multiple screw terminal points and precise signal routing capabilities, the AEA4D-05 ensures accurate transmission of analog signals while maintaining signal integrity and electrical isolation. It is purpose-built for easy wiring, field maintenance, and long-term performance in demanding industrial automation environments.

The AEA4D-05 is a vital component in control cabinets where space, clarity, and safety are critical, playing a behind-the-scenes but essential role in reliable plant operation.

Product Specifications

Applications

The AEA4D-05 Terminal Board is utilized across a wide range of industries and process control applications, where reliable and organized analog signal connection is crucial. Typical use cases include:

• Petrochemical Plants – managing multiple analog signals from field transmitters

• Power Generation Facilities – interfacing temperature, pressure, and flow sensors

• Water Treatment Plants – monitoring analog levels, flow, and quality metrics

• Pharmaceutical Manufacturing – connecting precise instrumentation for validated environments

• Food & Beverage Processing – analog I/O interfacing for sanitary and quality control sensors

• Steel and Cement Industries – rugged analog signal connection in harsh environments

Advantages

• Efficient Wiring Management: Clear terminal layout with numbered connections makes wiring fast and error-free.

• Flexible Integration: Works seamlessly with a variety of Yokogawa analog input and output modules.

• High Signal Integrity: Maintains analog signal quality and prevents cross-channel interference.

• Industrial-Grade Design: Built for robust operation under temperature and humidity extremes.

• Space-Efficient Format: Compact size allows installation in dense control cabinets.

• Easy Maintenance: Screw terminals and clearly marked wiring positions simplify field servicing.

• Long-Term Reliability: Backed by Yokogawa’s commitment to quality and support.

Frequently Asked Questions (FAQ)

1. What is the primary function of the AEA4D-05?

   It serves as a connection interface between analog field devices and Yokogawa I/O modules.

2. Which Yokogawa systems is it compatible with?

   It is compatible with the CENTUM VP and CENTUM CS 3000 control systems.

3. What signal types does it support?

   It supports current (4–20 mA), voltage, RTDs, and thermocouple signal types.

4. How is it typically mounted?

   The AEA4D-05 can be DIN-rail mounted or panel-mounted within control cabinets.

5. Does it offer electrical isolation?

   Yes, it provides isolation between channels and from ground.

6. How many terminals are available on this board?

   Typically 16 or more screw terminals are available, depending on configuration.

7. Is it suitable for harsh environments?

   Yes, it operates within industrial temperature and humidity ranges.

8. Can it be used with both input and output modules?

   Yes, it supports analog input and output modules like AAI143 and AOI143.

9. What kind of maintenance does it require?

   Minimal; periodic checking of terminal screws and cleanliness is recommended.

10. What are its physical dimensions and weight?

    It measures 482.6 x 88.1 x 85 mm and weighs 1.5 kg.
