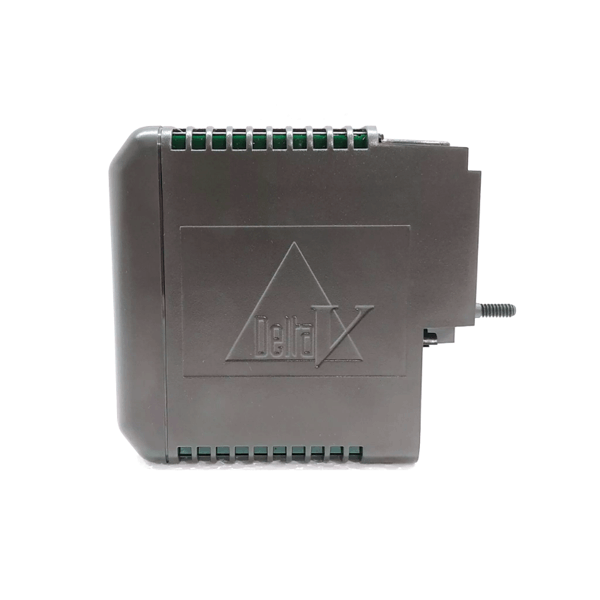

Emerson CE4002S1T2B5 KJ3204X1-BA1 12P3275X022 Discrete Input Module

The Emerson CE4002S1T2B5 KJ3204X1-BA1 12P3275X022 Discrete Input Module is a high-performance industrial component designed for reliable digital signal input in automation and control systems. It is part of Emerson’s DeltaV™ automation platform, known for its ability to handle discrete inputs from various field devices such as sensors, switches, and other control devices. This module is designed for use in both high-speed and high-precision applications, making it suitable for demanding industrial environments.

This module facilitates the integration of field devices into a control system by providing reliable, real-time data input. It is designed with robust protection features, ensuring longevity and stability even in harsh industrial conditions. The CE4002S1T2B5 KJ3204X1-BA1 12P3275X022 is widely used in process control, manufacturing automation, and other industries requiring discrete signal processing.

Product Specifications

Applications

The Emerson CE4002S1T2B5 KJ3204X1-BA1 12P3275X022 Discrete Input Module is designed for a wide range of industrial applications, particularly in systems that require reliable, high-speed input from discrete devices. Some of the common applications include:

Key Applications

1. Process Automation: Used to read signals from field devices like limit switches, sensors, and push buttons in process industries such as chemicals, oil & gas, and pharmaceuticals.
2. Manufacturing Control Systems: Ideal for monitoring machines, conveyors, and production lines in manufacturing environments.
3. Building Automation: Controls and monitors building systems, including security systems, HVAC units, and lighting systems.
4. Energy Management: Applied in energy metering and monitoring systems to capture discrete inputs for energy optimization.
5. Water Treatment Plants: Used for collecting data from sensors monitoring levels, flow rates, and other discrete input signals in water treatment facilities.
6. Power Generation: Captures inputs from various sensors for controlling power generation equipment, including turbines and generators.
7. Safety and Security Systems: Monitors alarm systems, fire detection equipment, and emergency shutdown systems.
8. Control Panel Systems: Acts as an interface between field devices and central controllers in control panels.
9. Transportation Systems: Monitors and processes input from gates, barriers, and sensors in transportation systems.
10. Robotics and Automation: Provides feedback from robotic arms and automated machinery for precise control.

Advantages

1. Reliable Input Processing: The module is designed to handle 16 discrete digital inputs, making it ideal for processing signals from multiple field devices simultaneously.
2. Compact Design: Its small footprint allows for easy integration into space-constrained control panels and systems.
3. Robust Protection: Equipped with short-circuit, overvoltage, and surge protection, ensuring reliability and durability in harsh industrial environments.
4. High Accuracy: Capable of delivering accurate and real-time data from sensors and other field devices, making it suitable for critical applications.
5. Wide Temperature Range: Operating from -20°C to +60°C, the module can function in a variety of industrial conditions, ensuring stable performance.
6. Power Efficient: Consumes minimal power (3W typical), ensuring that the system remains energy-efficient while still offering high performance.
7. Easy Integration: It integrates seamlessly with the DeltaV™ system and other compatible automation systems using Modbus RTU or DeltaV’s proprietary communication protocols.
8. Flexible Input Options: Supports both 4-20mA current loops and dry contact inputs, allowing users to connect a wide range of field devices.
9. Durable Build: Designed to withstand vibration, dust, and moisture, making it suitable for rugged industrial environments.
10. Simple Maintenance: The module is designed for easy installation, operation, and maintenance, minimizing downtime in critical systems.
