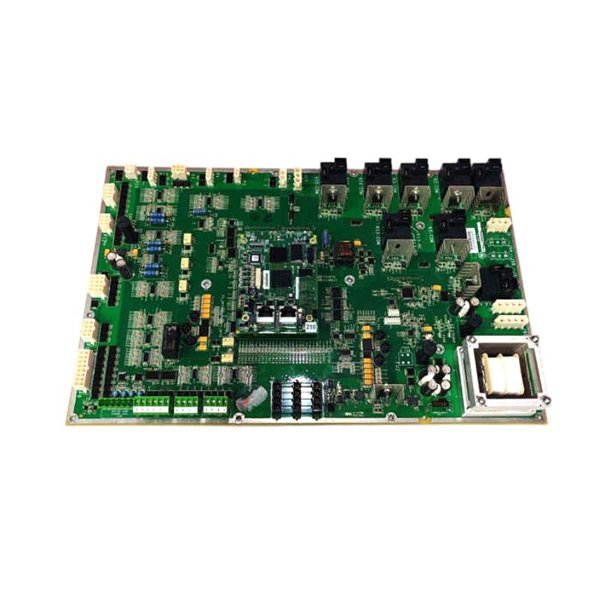

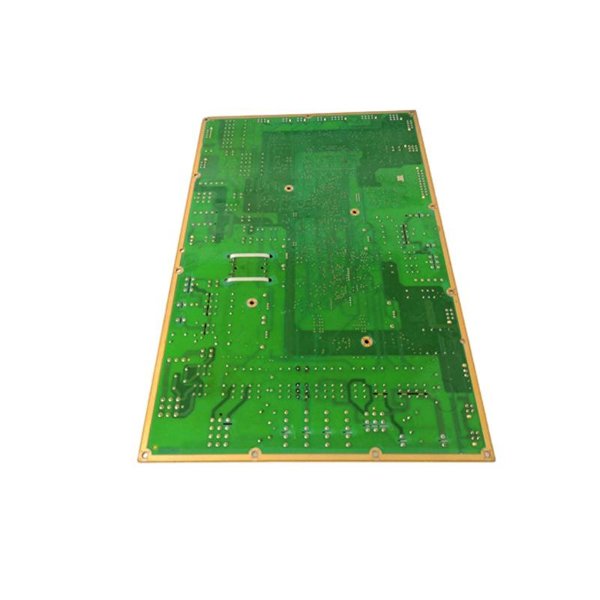

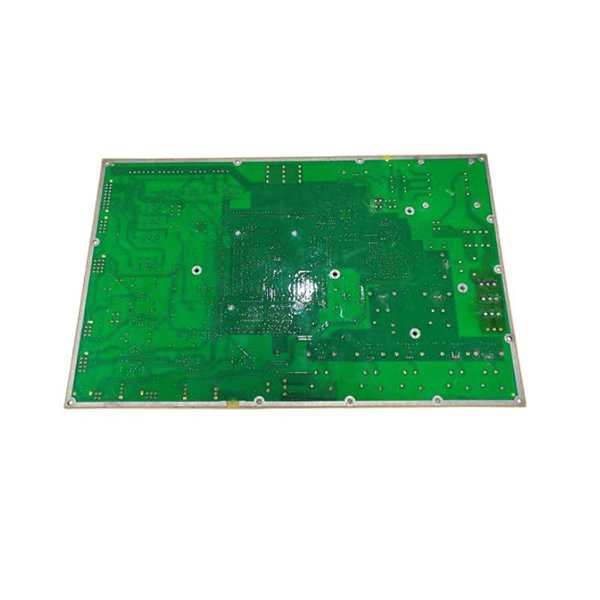

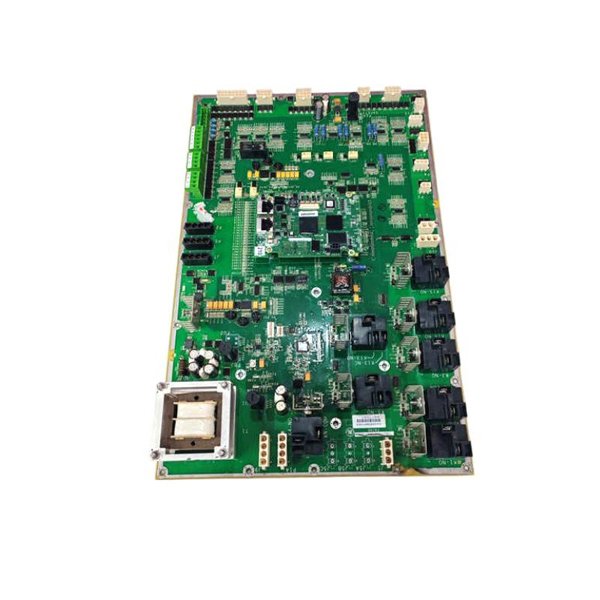

General Electric IS200WEMAH1AEA Mark VIe Wind Turbine Circuit Board

The GE IS200WEMAH1AEA is an advanced wind turbine control board designed as part of GE’s Mark VIe control system. It is specifically built to support wind turbine operation, helping to optimize the performance and reliability of wind energy systems. This circuit board provides precise control over the generator, pitch, yaw, and brake control systems of the wind turbine, ensuring efficient and safe operation even in demanding environments.

The IS200WEMAH1AEA features cutting-edge signal processing capabilities, allowing it to handle real-time data from a wide range of sensors within the turbine system. This enables it to adjust critical turbine parameters such as the blade pitch angle, generator speed, and braking force to maximize energy production while maintaining safety standards. With dimensions of 256 x 154 x 30 mm and weighing just 0.5 kg, this board is designed to fit within standard control enclosures, ensuring easy integration into wind turbine systems.

This circuit board is engineered to operate reliably in extreme weather conditions, from freezing temperatures to high winds, making it an essential component for both onshore and offshore wind farms. The IS200WEMAH1AEA is a crucial part of modern renewable energy systems, ensuring that turbines operate at peak efficiency and contribute to a more sustainable energy grid.

Product Parameters

Product Applications

The GE IS200WEMAH1AEA circuit board is integral to the operation of wind turbines, supporting a wide variety of applications:

• Generator Control: It monitors and controls the turbine’s generator, ensuring it operates within optimal parameters to maximize energy production and minimize mechanical stress.

• Pitch Control: The board adjusts the turbine blades’ pitch angle to optimize energy capture from wind while preventing damage from excessively high wind speeds.

• Yaw Control: The board controls the yawing mechanism of the turbine, ensuring the blades are always facing the wind for maximum efficiency.

• Brake Control: The IS200WEMAH1AEA is responsible for the braking system of the turbine, ensuring safe shutdowns and preventing mechanical failure during high winds or system faults.

• Fault Detection & Diagnostics: It helps monitor and detect faults within the turbine systems, providing feedback and enabling maintenance before critical issues arise.

• Grid Integration: The board facilitates integration with the electrical grid, ensuring that the wind turbine produces energy in synchronization with grid requirements.

The 256 x 154 x 30 mm form factor allows it to be installed in a variety of turbine control cabinets, offering flexibility in system design. The 0.5 kg weight ensures easy handling and installation in turbines of all sizes.

Product Advantages

The GE IS200WEMAH1AEA offers a range of advantages that make it indispensable for modern wind turbine control systems:

• High Efficiency: The board optimizes wind turbine performance by ensuring that turbine components, such as the generator and pitch control, are operating at peak efficiency.

• Reliability in Harsh Environments: The IS200WEMAH1AEA is built to withstand extreme conditions with an operating temperature range of -40°C to +70°C, making it suitable for both onshore and offshore wind turbines.

• Compact and Lightweight: With 256 x 154 x 30 mm dimensions and a weight of only 0.5 kg, the board is easy to install in tight spaces and does not add unnecessary weight to the turbine control system.

• Real-Time Monitoring and Control: The board provides continuous, real-time control over turbine parameters, ensuring that the turbine operates safely and efficiently under varying wind conditions.

• Advanced Diagnostics: The IS200WEMAH1AEA includes diagnostic features that monitor turbine performance and detect faults before they cause system failures, reducing downtime and improving overall reliability.

• Flexible Integration: The board is compatible with multiple communication protocols such as Modbus, CAN, and Ethernet, allowing seamless integration with other wind turbine control systems and centralized management platforms.

• Enhanced Safety Features: The board incorporates safety protocols to protect the turbine in case of extreme conditions or mechanical malfunctions, improving the overall safety of the turbine operation.

FAQ

1. What is the primary function of the GE IS200WEMAH1AEA?

   • The IS200WEMAH1AEA is a wind turbine control board that manages key turbine subsystems, including generator control, pitch control, yaw control, and brake control.

2. What are the dimensions of the GE IS200WEMAH1AEA?

   • The board’s dimensions are 256 x 154 x 30 mm.

3. How much does the GE IS200WEMAH1AEA weigh?

   • The board weighs 0.5 kg.

4. What communication protocols are supported by the IS200WEMAH1AEA?

   • It supports Modbus, CAN, and Ethernet protocols.

5. What is the operating temperature range of the IS200WEMAH1AEA?

   • The board operates in temperatures from -40°C to +70°C.

6. Can the GE IS200WEMAH1AEA be used for both onshore and offshore turbines?

   • Yes, the IS200WEMAH1AEA is designed to operate in both onshore and offshore environments.

7. What power supply is required for the GE IS200WEMAH1AEA?

   • The board requires 24 V DC power supply.

8. What type of turbine subsystems does the IS200WEMAH1AEA control?

   • It controls generator, pitch, yaw, and brake subsystems, ensuring optimal performance and safety.

9. How does the GE IS200WEMAH1AEA enhance turbine efficiency?

   • The board optimizes the performance of the turbine by adjusting critical components in real-time based on environmental data and operational conditions.

10. Is the IS200WEMAH1AEA compatible with GE’s other wind turbine control systems?

    • Yes, it integrates seamlessly with GE’s Mark VIe control systems and supports various communication protocols for flexibility.
