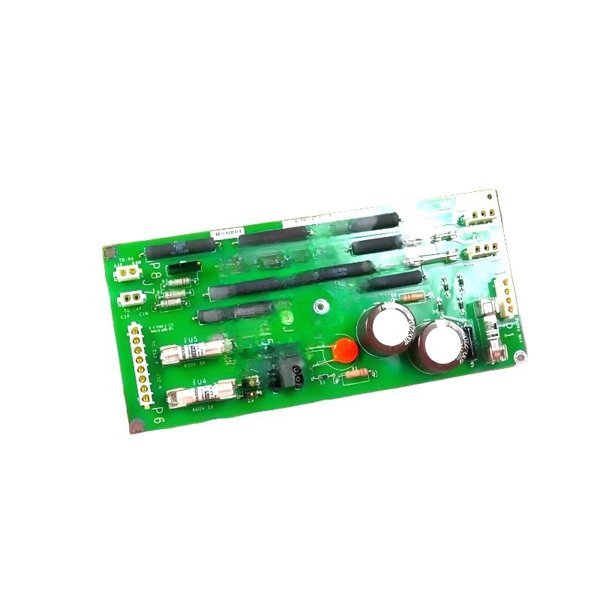

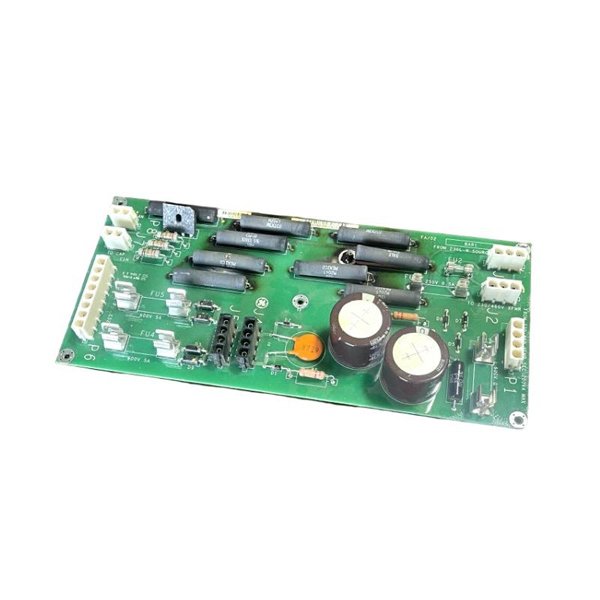

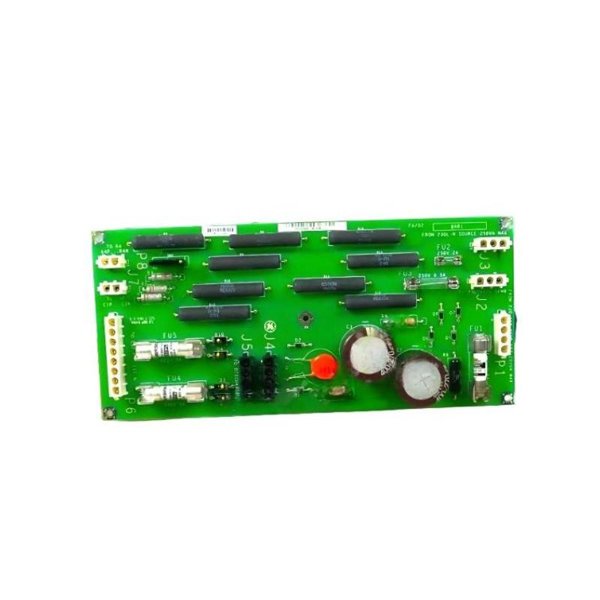

General Electric IS200WEORG1ACD Wind Turbine Mainboard

The GE IS200WEORG1ACD is a highly reliable and essential component used in wind turbine systems for controlling and monitoring various functions of the turbine. This mainboard is designed to provide precise control over turbine functions such as pitch control, generator excitation, fault monitoring, and communication with other system components. It is part of the advanced IS200 series, known for its high efficiency and durability in critical wind energy applications.

With its compact size of 178 x 51 x 305 mm and a lightweight design weighing only 0.5 kg, the IS200WEORG1ACD mainboard is perfect for integration into the control panel of a wind turbine. It is engineered to withstand the challenging environmental conditions often found in both onshore and offshore wind turbines, providing the highest level of performance and reliability.

In addition to its robust functionality, the IS200WEORG1ACD offers advanced communication protocols, including Ethernet and Modbus, allowing for seamless data exchange with other components of the turbine control system. This ensures real-time monitoring, operational efficiency, and easy integration into larger turbine systems.

Product Parameters

Product Applications

The GE IS200WEORG1ACD mainboard is designed specifically for use in wind turbine systems. It plays a pivotal role in ensuring the smooth operation of wind turbines, controlling several critical functions. The primary applications include:

• Pitch Control Systems: The mainboard controls the pitch of the turbine blades, adjusting their angle to maximize energy production while protecting the system from high winds.

• Generator Excitation Control: It manages the excitation of the generator, ensuring optimal power output while responding to load changes and faults.

• Fault Detection and Diagnostics: The mainboard is equipped with advanced fault detection systems that monitor the turbine for mechanical failures, overheating, or electrical malfunctions, alerting operators to potential issues before they cause damage.

• Wind Turbine Data Communication: The IS200WEORG1ACD facilitates real-time communication between various control systems, providing data on turbine performance, operational health, and efficiency. This allows for remote monitoring and troubleshooting.

• Energy Generation Optimization: The mainboard ensures that the turbine operates at peak efficiency by continuously adjusting key parameters based on real-time data. It enables precise control over energy generation and system performance.

Product Advantages

• Compact and Lightweight Design: With a size of 178 x 51 x 305 mm and a weight of just 0.5 kg, the IS200WEORG1ACD mainboard can be easily integrated into tight spaces within turbine control panels, making it ideal for turbines with limited space for electrical components.

• High Durability: The mainboard is designed to withstand harsh environmental conditions, including extreme temperatures from -40°C to +70°C. This makes it suitable for both onshore and offshore wind turbine installations, where reliability is critical.

• Advanced Communication Capabilities: The IS200WEORG1ACD supports Ethernet and Modbus communication protocols, ensuring seamless integration with other turbine control systems and enabling real-time data exchange for better performance monitoring.

• Enhanced Control Functions: The board supports essential turbine functions such as pitch control, excitation, and fault monitoring, ensuring smooth turbine operation and preventing costly breakdowns by detecting faults early.

• Flexible Integration: The IS200WEORG1ACD is compatible with GE turbine controllers and can easily be integrated into existing systems, making it a versatile choice for both new and retrofitted turbines.

• Energy Efficiency: By optimizing energy generation and turbine performance, the mainboard helps reduce energy consumption and improve the overall efficiency of the wind turbine, leading to higher operational output and reduced costs.

Frequently Asked Questions (FAQ)

1. What is the size of the GE IS200WEORG1ACD mainboard?

   • The dimensions of the mainboard are 178 x 51 x 305 mm.

2. How much does the GE IS200WEORG1ACD mainboard weigh?

   • The board weighs 0.5 kg.

3. What power supply does the GE IS200WEORG1ACD require?

   • The mainboard requires a 24 V DC power supply.

4. What communication protocols does the GE IS200WEORG1ACD support?

   • The board supports Ethernet and Modbus communication protocols for seamless integration with other control systems.

5. What is the temperature range of the GE IS200WEORG1ACD mainboard?

   • The mainboard can operate in temperatures ranging from -40°C to +70°C.

6. What applications is the GE IS200WEORG1ACD used for?

   • The board is used in wind turbine systems for controlling pitch, excitation, and monitoring turbine performance.

7. Can the GE IS200WEORG1ACD be used in offshore wind turbines?

   • Yes, the mainboard is designed to withstand harsh environmental conditions and is suitable for both onshore and offshore wind turbine applications.

8. How does the IS200WEORG1ACD contribute to wind turbine protection?

   • It offers fault detection and diagnostics, allowing for early detection of potential issues such as mechanical failures, overheating, or electrical faults, ensuring the protection of the turbine.

9. Is the GE IS200WEORG1ACD compatible with other GE turbine controllers?

   • Yes, the board is compatible with other GE wind turbine controllers, making it easy to integrate into existing systems.

10. What are the key advantages of using the GE IS200WEORG1ACD mainboard?

    • Key advantages include compact design, high durability, advanced communication protocols, energy optimization, and flexibility in integration with GE turbine controllers.
