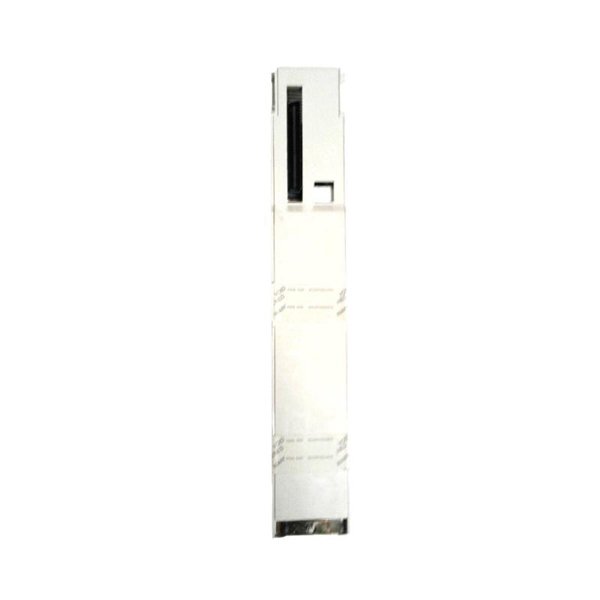

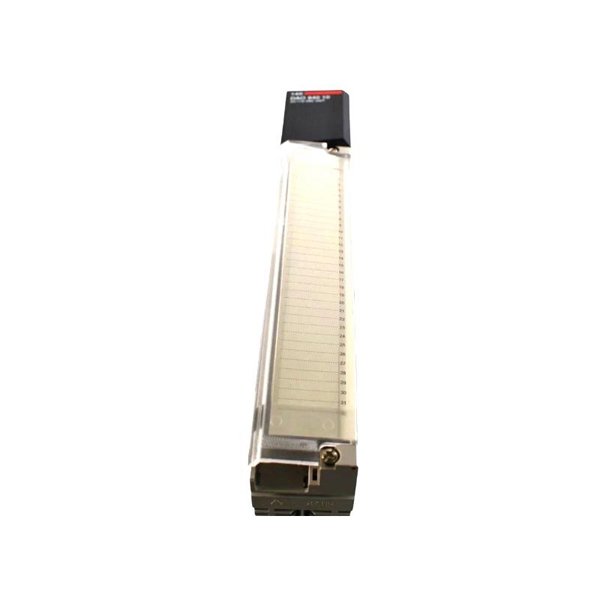

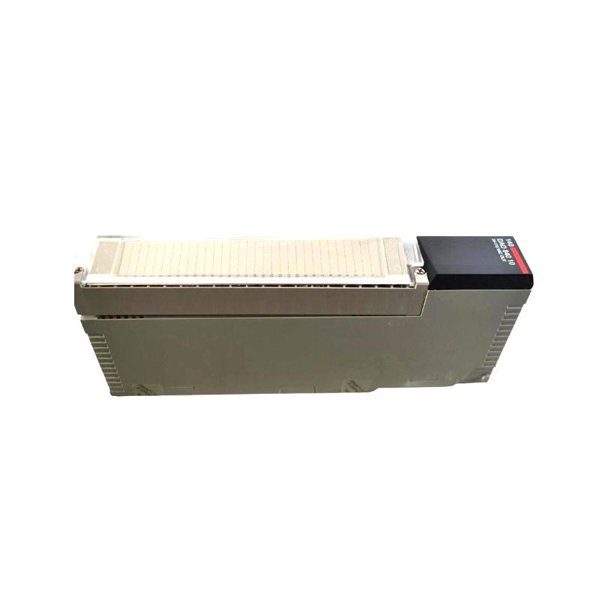

Schneider 140DA084010C Discrete Output Module
Manufacturer:Schneider
Product Number:140DA084010C
Product Type:Discrete Output Module
Origin:France
Dimensions:103.9 × 40.3 × 250 mm
Weight:0.485 kg
Views:43
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider 140DA084010C is a discrete output module designed for the Modicon Quantum automation platform. It features 32 discrete outputs, supporting high-density I/O applications. The module ensures fast switching and robust signal control, making it suitable for demanding industrial automation tasks.
Technical Specifications
| Parameter | Details |
|---|---|
| Module Type | Discrete Output Module |
| Part Number | 140DA084010C |
| Output Type | Discrete (Digital) |
| Number of Outputs | 32 |
| Output Voltage | 24 VDC |
| Output Current per Channel | 0.5 A |
| Output Type Signal | Sink (NPN) |
| Switching Frequency | 1 kHz max |
| Isolation Voltage | 1780 V RMS |
| Bus Current Requirement | 360 mA |
| Mounting Type | Rack-mounted |
| Diagnostics | Yes (LED Indicators) |
| Dimensions (H × W × D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.485 kg |
| Operating Temperature | 0 to 60 °C |
Applications
-
Automated machinery control
-
Packaging lines
-
Conveyor systems
-
Industrial robotics
-
Energy management systems
-
Material handling systems
Product Advantages
-
High-density output: Supports 32 discrete outputs for compact design
-
Reliable performance: Withstands industrial conditions with strong isolation
-
Easy diagnostics: Built-in LED indicators for status and fault detection
-
Flexible integration: Seamless with Modicon Quantum series
-
Fast switching: Suitable for high-speed digital control applications
FAQ – Frequently Asked Questions
Q1: What type of outputs does the 140DA084010C module support?
A1: It supports 32 discrete (digital) sink-type outputs operating at 24 VDC.
Q2: Is the module compatible with all Modicon Quantum racks?
A2: Yes, it is fully compatible with standard Modicon Quantum I/O racks.
Q3: What is the maximum output current per channel?
A3: Each channel can handle up to 0.5 A.
Q4: Does the module provide diagnostics?
A4: Yes, it includes LED indicators for output status and fault detection.
Q5: Can it be used in high-speed applications?
A5: Yes, the module supports a switching frequency up to 1 kHz.
Q6: What is the operating temperature range?
A6: It operates reliably between 0°C and 60°C.
Q7: What is the total current draw from the backplane?
A7: The backplane current consumption is approximately 360 mA.
Q8: Is it suitable for use in harsh environments?
A8: Yes, with 1780 V RMS isolation, it handles industrial conditions well.
Q9: What is the module’s mounting method?
A9: It is rack-mounted into the Modicon Quantum chassis.
Q10: Does it require external wiring accessories?
A10: Depending on the application, additional terminal blocks may be required for output connections.
