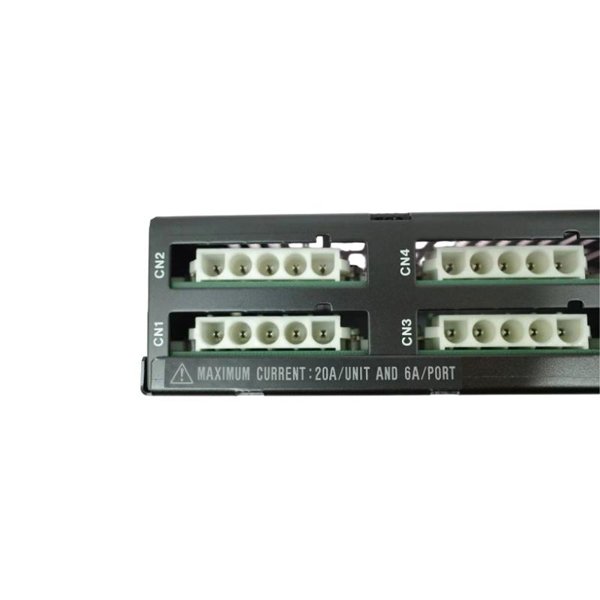

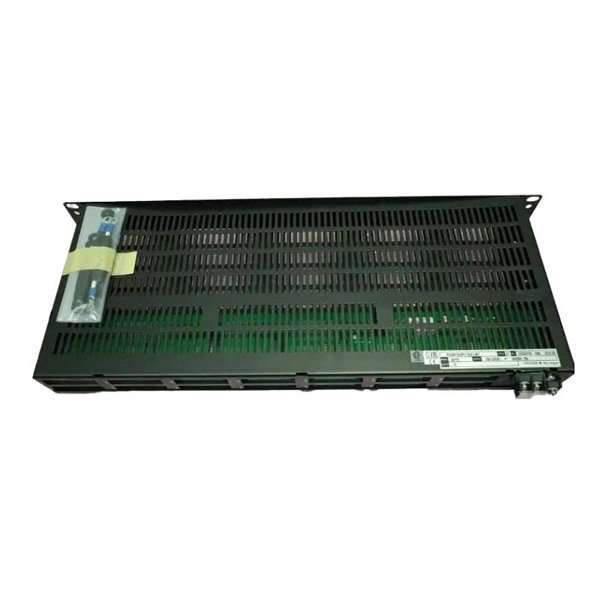

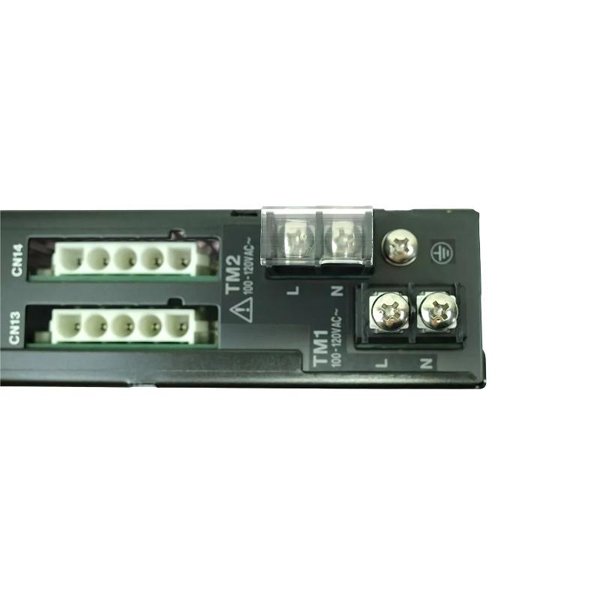

Yokogawa AEP7D-10 Power Supply Bus Unit

The Yokogawa AEP7D-10 Power Supply Bus Unit is a critical component in Yokogawa’s distributed control systems (DCS), designed to provide reliable and stable power distribution to I/O and processing modules. It ensures uninterrupted operation of control system components, supporting both analog and digital modules across the system.

The AEP7D-10 is engineered for industrial environments where reliability, precision, and operational continuity are paramount. By regulating and distributing DC power efficiently, this bus unit maintains voltage stability, minimizes ripple, and provides overcurrent protection for connected modules. It is widely used in process industries including power generation, petrochemical, oil and gas, and general manufacturing automation.

Product Specifications

Product Applications

The AEP7D-10 Power Supply Bus Unit is essential for reliable operation in industrial automation and control:

• Distributed Control Systems (DCS) – Provides stable power to analog and digital I/O modules.

• Process Control Plants – Supports temperature, pressure, flow, and level monitoring modules.

• Power Generation Facilities – Ensures uninterrupted power to turbine and generator control modules.

• Petrochemical Plants – Maintains power stability for high-reliability process monitoring.

• Oil & Gas Operations – Provides robust power distribution for field signal acquisition and control modules.

• General Automation – Supplies centralized, regulated DC power to multiple modules in the system rack.

Product Advantages

• Stable Power Distribution – Ensures connected modules receive consistent voltage with minimal ripple.

• High Reliability – Industrial-grade design suitable for critical process control applications.

• Overcurrent Protection – Safeguards connected modules and prevents damage from electrical faults.

• Modular Integration – Fits seamlessly into Yokogawa DCS racks for plug-and-play operation.

• Flexible Voltage Support – Supplies multiple DC voltages suitable for different modules.

• Compact Design – Efficient rack-mount form factor saves space in control cabinets.

• Reduced Maintenance – High durability and reliable components minimize downtime.

• Compliance with Standards – Meets IEC/EN EMC and safety regulations for industrial use.

FAQ

1. What output voltages are provided by the AEP7D-10?

   It provides regulated 5 V DC and 24 V DC depending on the system requirements.

2. How much current can each bus line supply?

   Maximum of 5 A per module bus line.

3. Is overcurrent protection included?

   Yes, each output channel includes overcurrent protection.

4. Can the unit support both analog and digital modules simultaneously?

   Yes, it distributes power to both types of modules through the DCS backplane.

5. What is the input AC voltage range for the unit?

   The module accepts 100–240 V AC input depending on system configuration.

6. How is ripple and noise managed in the output?

   The unit maintains <50 mV peak-to-peak ripple through regulated DC supply circuits.

7. Is the unit hot-swappable in the DCS rack?

   Hot-swapping depends on rack design; consult the Yokogawa DCS documentation for replacement procedures.

8. What operating temperature range is supported?

   0–55 °C for normal operation.

9. Can multiple units be used in parallel for redundancy?

   Yes, redundant configurations are supported for critical systems.

10. Does the unit comply with international standards?

    Yes, it meets IEC/EN EMC and electrical safety standards.
